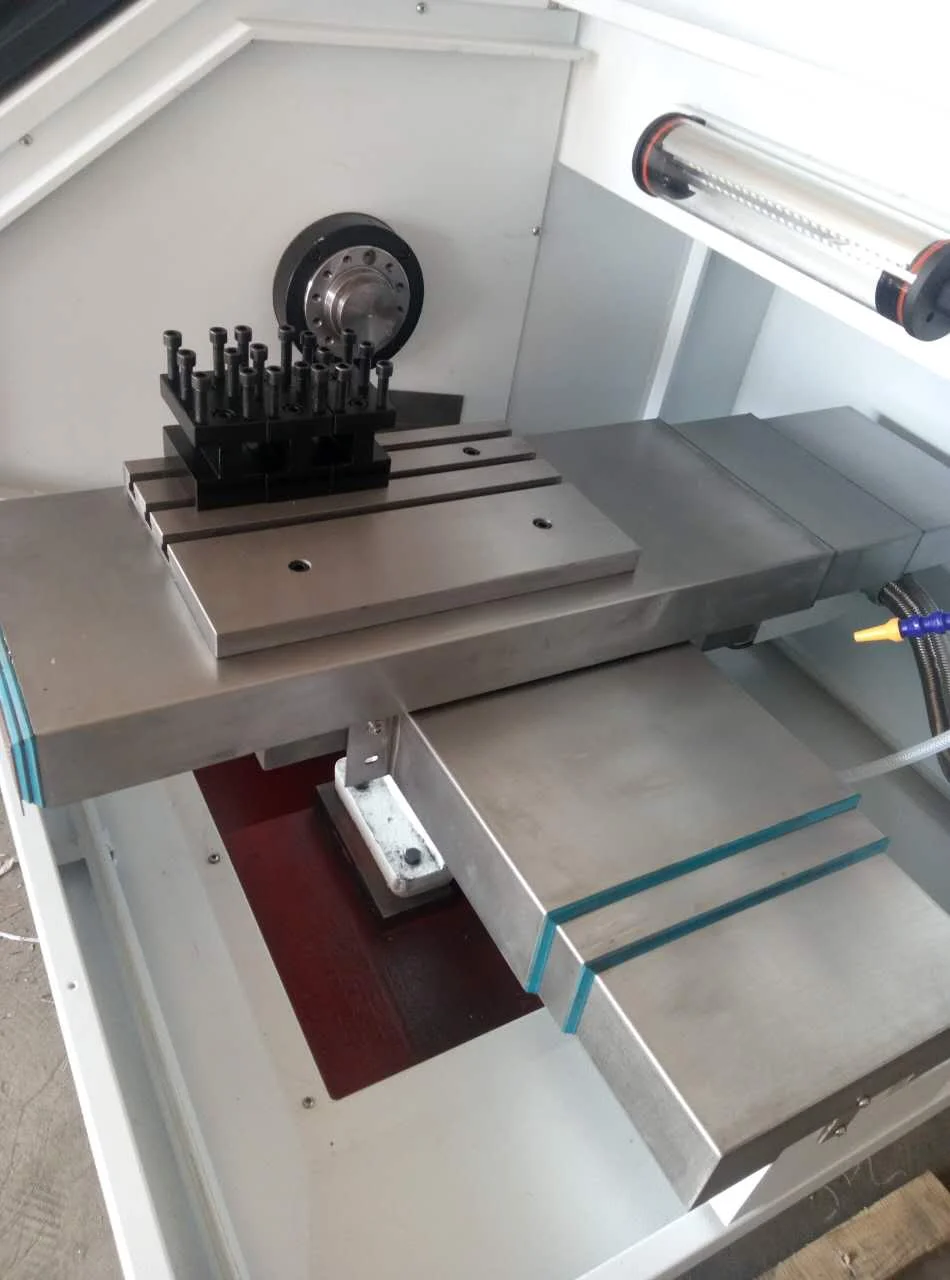

CK0632 swing over bed 200mm desktop cnc mini lathe with cheap price
CK0632 swing over bed 200mm desktop cnc mini lathe with cheap price
The small lathe adopts the mechanical and electrical integration design,whichwithreasonable structure, wide range of uses, simple operation, beautiful appearance. Itcan achieve automatic control, automatically process a variety of parts of the inner and outer ring, end face, slot, any conical surface, spherical and other public Inch cylinders, taper threads, etc.
Standard Configuration :
Optional configure:
Technical Parameters:
Specifiction | Unit | CK0632 | CK0640 | CK0660 | CK6132 | CK6136 |
Swing diameter over bed | mm | 200 | 320 | 320 | 320 | 360 |
Swing diameter over table | mm | 80-150 | 90-150 | 80-150 | 160 | 200 |
Row of knife number | 4--8 | 4--8 | 4--8 | 4--8 | 4--8 | |
Spindle bore | mm | 38 | 49 | 89 | 60 | 60 |
Spindle speed | r/min | 100-2500 | 100-2100 | 100-1800 | 150-2200 | 150-2200 |
Cross stroke | mm | 380 | 260 | 380 | 260 | 260 |
Max.length of production | mm | 260 | 500 | 260 | 750 | 750 |
Rapid traverse | mm/min | X:5000 Z:6000 | X:5000 Z:6000 | X:5000 Z:6000 | X:5000 Z:6000 | X:5000 Z:6000 |
Power of main motor | kw | 3 | 3 | 3 | 5.5 | 5.5 |
N.W. | kg | 800 | 900 | 950 | 1700 | 1700 |
L*W*H | mm | 1500*1000*1500 | 1980*1400*1650 | |||
Control system | customized require (GSK/SIEMENS/FUNUC) |
The CNC machine tool processing features : accurate, fast, suitable for mass production. It has nothing to do with the operator experience, the mini lathe can process the complex shape, high precision parts which some general machine can not process. It can be processed after the multi-channel process, processing quality and stability, reduce the operation of labor intensity.
- High precision (processing accuracy 0.01mm).
- Repeat positioning(0.01mm)
- Overall cast bed
- Rail widening
- Rail surface super audio quenching
- Screw thicker
- Precision bearings
- Reinforced spindle motor
- High rotation accuracy
- Good shock resistance
- High precision ball screw
outside of lathe machine will be packed by standard wooden case
“We haven’t replaced any spare part after continuous running for10 months.Everything is still in perfect condition so far!”
--Mrs. carrelin
“The quality of the equipment is good,and maintenance operation is convenient.”
--Mr. Chen
“The equipment quality is satisfactory, the company's service is good, we can not meet the problem.”
--Mr.Fernanda
Q1.Do you have CE or any other certificate?
We have certificates,such as ISO, CE, The product Patent Certificate etc.
Q2.Could you please tell me the payment ways of your company?
The payment way is general T/T.
Q3.How long is your delivery time?
Generally it is 15-60 days ,it is according to different machine model and configuration and order quantity.
Why choose us
Anyang Xinheng Machine Tool Co. Ltd.are located in AnyangCity, HenanProvince. We have always been devoted to the research and manufacture of machine tools. We haveLATHE, MINI LATHE ,CNC LATHE, PIPE THREAD LATHE, SPHERE TURNING LATHEetc. There are manyprofessional salespersons who can help you solve problems on purchase and technology related to the machinetools. Our products are sold both at home and abroad, and they are very popular around the world.Welcometo visit our company!
Product catalog:
Product name | Type | Swing over bed | Max.length of workpiece |
Mini lathe | CK0640/32/36/50/60 | 200~500mm | 38-60mm |
Ordinary lathe machine | CW6163/80/94 | 630~1640mm | 50-12000mm |
CW6180/CW61100 | |||
CW61100/125/160 | |||
Heavy duty lathe | CW61125/140/160 | 1250~2500mm(10t~32t) | 3000-2000mm |
C61125/160/180/200 | |||
C61160/200/250 | |||
Spherical lathe | C6555/95/160/180 | 550~1800mm | Dia.of spherical:550-1800mm |
CNC lathe machine | CK6142/52/63/80/94 | 420~1600mm | 750-6000mm |
CKB6180/100 | |||
CK61100/125/160 | |||
CNC heavy duty lathe machine | CKH/CKHJ61125/160/200 | 1250~2500mm(16~63t) | 3000-20000mm |
CK61160/200/220/250 | |||
CNC pipe thread lathe | QK1212/19 | Dia.ofpipes:120~460mm | 750-2800mm |
QKP/QKA1226/46 | |||
Lathe customized | As per order | As per order |
