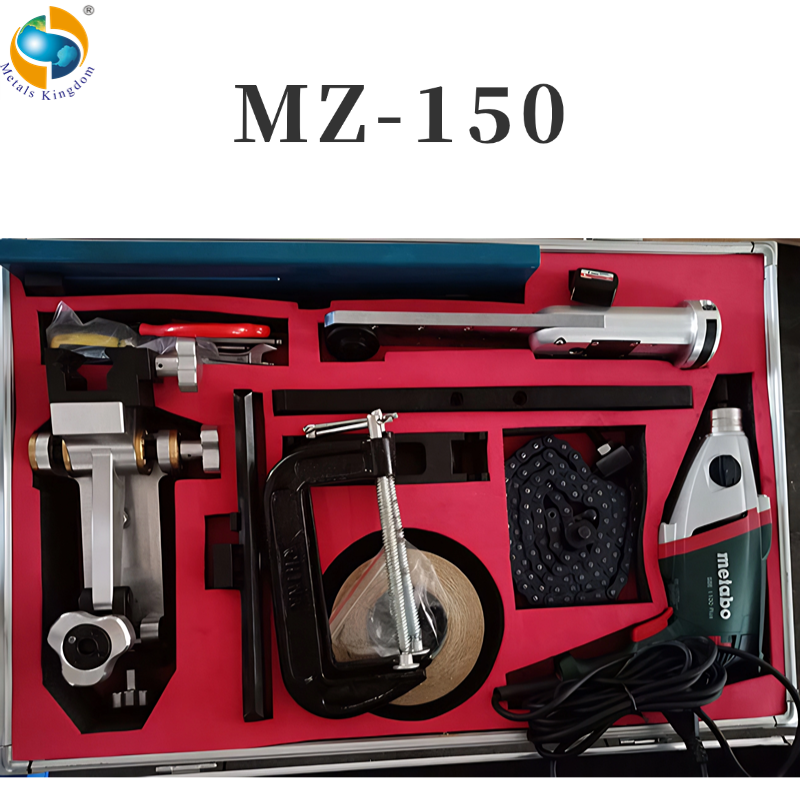

MZ150 Portable Gate Valve Grinding Machine
MZ150 Portable Gate Valve Grinding Machine
Portable Valve Grinding and Lapping Machine For Gate Valves
Technical indicators
Applicstion:Gate Valve Seat,Gate Valve Core.
Grinding diameter: D=Dia50-Dia180mm adjustable
Valve DN:DN50-150mm
The electrical power: 1100W (Electric motor)
The greatest adjustment depth: 420 mm
Input voltage: 220 V
Operating weight: 20 kg
The smallest broaching size: B = 38mm
MZ Portable Valve Grinding Machine for grinding gate valve is a new generation of products that is adeveloped to adapt to on-site maintenance gate valve. It has the advantages as below: the reduction of labor intensity, improving labor efficiency, replacing imported products, educing the maintenance cost. It is widely used in petroleum, chemical industry, steel mills, power plants and so on.
1) small volume. Light weight, easy to carry.
2) installation is simple, the structure of product is combined type, easy disassembly, transvestite.
3) easy to operate.Valve seat, valve core can be grinded.
4) high grinding efficiency, good quality. Using advanced grinding materials, grinding efficiency is 10 to 30 times that of the manual grinding, can make the contact area of more than 95%. High precision grinding quality makes the contact area to the level of new valve.
5) it is suitable for on site repair in a complicated environment which saves the overall disassembling of valve.
Item |
MZ-150 |
MZ-250 |
Grinding Range(mm) |
Dia 50-180 |
Dia95-270 |
Voltage(V) |
220 |
220 |
Power(W) |
1100 |
1100 |
Frequency(HZ) |
50 |
50 |
Max Grinding Depth(mm) |
420 |
600 |
Valve sealing face min gap(mm) |
38 |
45 |
Gross Weight(kg) |
20 |
Portable Gate Valve Grinding Machine, Valve Core & Seat Grinder
Hot Sale Various High Quality Valve Grinder, Valve Test Bench, Pipe Beveling & Cutting Machine. The portable & Stationary Valve Grinding Machineis suitable for Gate Valve, Globe Valve, Safety Valve. As fames China Valve Seat grinded Machine, High quality and factory price will give you.
