Good applicability conventional lathe specifications

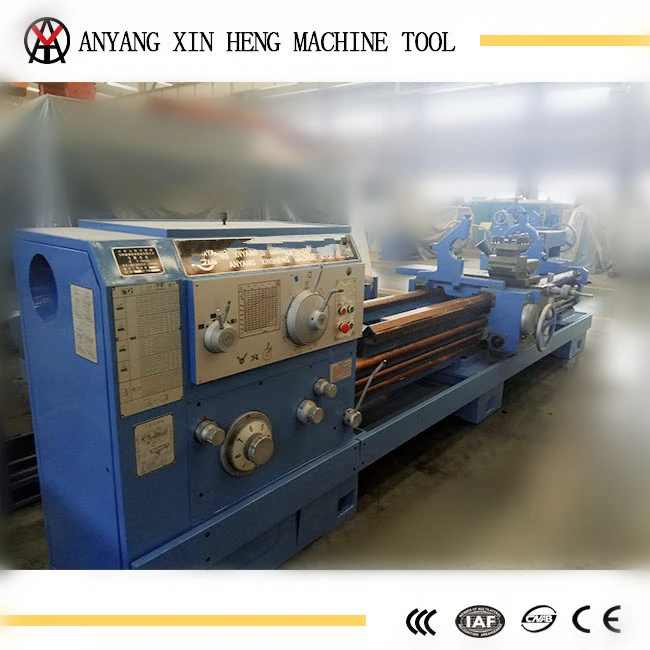

Good applicability CW6280B conventional lathe specifications
The horizontal lathe series mainly applies to the inner and outer cylinder, the cone surface, and other rotating parts, can process all kinds of metric, English, modulus and diameter thread, it can also pull the oil groove and keyway. The machine tool is solid, power is large, can carry on high speed powerful cutting.
StandardConfiguration:
1. Bed rail width 550
2.Spindle head Model: C11
3. Spindle through hole diameter 100
4. Tail the tail sleeve: Morse5/6
5. 1.5 meters below the specifications without the center frame and with a knife
Optionalconfigure:
1. Taper device additional price of 1000$, a small knife frame automatic knife
device additional price of 0.3 million, double saddle additional price of 5200$
(Spindle head model C15, through hole diameter 140, plus 2500$)
UNIT |
CW6280B |
||
CAPACITIES |
Swing over bed |
mm |
800 |
Swing over carriage |
mm |
520 |
|
Max.length of workpiece |
mm |
4000 |
|
Max.turning length |
mm |
3850 |
|
Swing over gap |
mm |
1000 |
|
SPINDLE |
Effective widthof gap |
mm |
300 |
Pan of guideway |
mm |
550 |
|
Spindle nose |
C11 |
||
Spindle bore |
mm |
100 |
|
Taper hole of spindle |
1:20/120 |
||
Range of spindle speeds |
r/min |
6~800 |
|
No.of spindle speeds |
18 |
||
FEED |
Longitudinal and cross |
r/min |
64;0.1~24.32 |
Cross/long longitudinal feed |
1/2 |
||
Screw pitch of leadscrew |
mm |
12 |
|
TURRET |
No. and range of metric thread |
mm |
50;1~240 |
No. and range of inch thread |
26;14~1 |
||
No. and range of module thread |
mm |
53;0.5~120 |
|
No. and range of dia. thread |
24;28~1 |
||
TAILSTOCK |
Rapid traverse speed |
mm/min |
4000 |
Max.travel of cross slide |
mm |
540 |
|
Max.travel of top slide |
mm |
200 |
|
OTHERS |
Section of tool shank |
mm |
32(192x192) |
Dia. of tailstock |
mm |
100 |
|
Travel of tailstock quill |
mm |
250 |
|
Taper hole of tailstock quill |
mores 5 |
||
Main motor power |
kw |
11 |
|
Length |
mm |
7355 |
|
Width/Height |
mm |
1473/1622 |
Feed box:also called feeding box, feed movement are installed in the feed box shift gear, adjust its shift gear, can get the required feeding or pitch, through light poles or screw would transmit the motion to head for cutting.
Spindle box:also called headstock, it is the main task of the main motor rotation movement coming after a series of variable speed institutions make main shaft gets the different rotating speed of the positive and negative two turn, at the same time the spindle box gives impetus to the movement into the box.
Product Features:
- high speed high efficiency
- strong adaptability high quality
- high precision good rigidity
1. Confirm the purchase
1. FOB Shanghai / Tianjin or CIF, LCL or FCL shipping.
2. Payment terms: T/T or other ways contact us.
3. Package: standard wooden case
4. Delivery time: Within 20 working days after the down payment. (Actual delivery time depends on actual order.
2. Check the acceptance
Receive machine,please check:
1. Examine the content of the packing list,the product quantity to both consistent,and accessories;
2. Machine tool details if they 're normal, If have the trace of replacement and maintenance, If have other effects use of the problem.
If happens above declare,please contact us immediately.
