Introduction Weather-Ometer and Fade-Ometer tester adopts water-cooled xenon lamp. This instrument using argon arc lamp simulation control ideal natural climate and solar and other experimental condit
Standards
Automotive & Coatings: ISO 4892-1/2. ASTM G155/G151. SAE J2527
Medical & Pharmaceuticals: ICH Guideline Q5C, ISO 11979-5
Plastics & Packaging: ISO 4049. ASTM D6695. ASTM D5071
Textiles & Printing: ISO 10977. ASTM D3424
Specialized Applications: ISO 7491 (UV resistance), ISO 11431 (weathering)
Technical Parameter
| Parameter | Value |
|---|---|
| Control Mode | Automatic |
| Lamp Power | 1700W |
| Exposure Area | 1.100 cm² |
| Irradiance Monitoring | Quantitative closed-loop control (for 420nm/300-800nm and 340nm lamps) |
| Operation Interface | Chinese and English |
| Black Panel Temperature Setting Range | 45-100 °C |
| Black Panel Temperature Control Accuracy | ±2°C |
| Black Standard Temperature Setting Range | 45-95 °C |
| Black Standard Temperature Control Accuracy | ±2°C |
| Chamber & Black Panel Temperature Control Method | Through fans |
| Lamp Lifespan | Up to 1500 hours or more |
| Weight | 115kg |
| Power Supply | 220V 50Hz |
| Appearance Dimensions (L×W×H) | 100cm × 70cm × 70cm |
Product Features
1. Smart Control Panel
PLC control system, more efficient and reliable, with a programmable 7-inch color LCD touch screen, realizing multiple functions such as control, detection, calculation, and data display.
2. Powerful software functionality
The enhanced control system can handle complex custom programs and simple pre-programmed tests. The operation page features simple, clear icons for easy understanding; irradiance, temperature, and humidity can be programmed to change gradually, meeting various testing requirements of users.
3. Multi-directional protection
The instrument is equipped with temperature and humidity monitoring, airflow regulation, spray control, over-temperature, and leakage protection, ensuring the safety of the equipment and personnel.
4. Large testing area
Thischamber is large enough totest up to 48 sample clips at once, which helpsimproving the consistency of exposure to sunlight for all samples
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
在线联系供应商
Other supplier products
 |

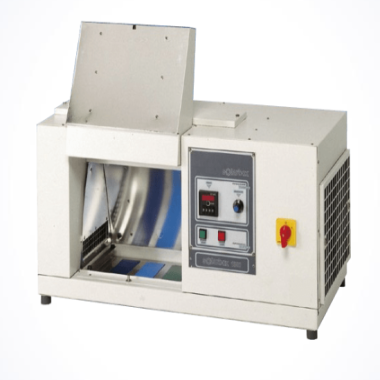

STD SOLARBOX 1500 - 3000 | Introduction Radiant energy in the STD SOLARBOX is provided by a single superior air-cooled Xenon Lamp generating an irradiance level up to two ti... |
 |
Rubbing Color Fastness Tester | Introduction Manual friction fastness tester is the most commonly used instrument for the textile industry to detect the color fastness of the fab... |
 |

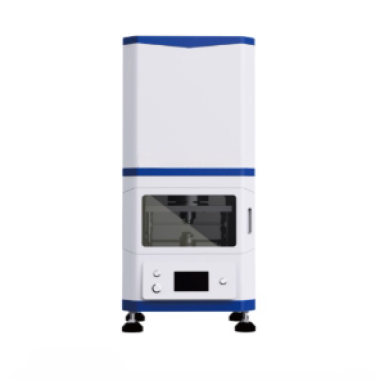

Battery Electrode Resistance Tester | Standard ASTM B193: Standard Test Method for Resistivity of Electrical Conductor Materials ISO 18516: Conductive Coatings – Measurement of ... |
 |
