Xenon Light Fastness Test Chamber

Features and Benefits

1.Full-Spectrum Xenon Lamp

Xenon arc lamps emit a continuous spectrum from UV to visible and infrared, closely simulating natural sunlight.Water-cooled xenon lamps ensure stable operation for over 1600 hours.

2.Accurate Environmental Simulation

Temperature is controlled from ambient to 100°C, while humidity can be adjusted between 50%RH and 98%RH. A built-in water spray system simulates rain to evaluate water resistance and color fastness.

3. Customizable Optical Filters

A variety of filter options are available, including Daylight Q, Daylight B/B, Window Q, and Window B/B. Each filter allows specific wavelengths to pass through.

4. Flexible Sample Holder Designs

LIB offers multiple holder configurations—flat shelf and rotating drum types—to accommodate various sample shapes, sizes, and test requirements.

Specifications

Model

STD XL-S-750

Internal Dimension (mm)

950*950*850 mm

Overall Dimension (mm)

1400*1400*1950 mm

Chamber Type

Rotating Holder Holds42 Samples with a Size of 95mm*200mm

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp

Irradiance Range

35~150 W/㎡

Bandwidth Measurement

300nm~400nm (340nm or 420nm)

Chamber Temperature Range

Ambient~100 ℃ ±2℃

Black Panel Temperature

BPT 35~85 ℃ ±2℃

Humidity Range

50% ~ 98% RH

Humidity Deviation

± 5% RH

Water Spray Cycle

1~9999H59M (Adjustable)

Controller

Programmable color LCD touch screen controller

Radiometer

UV Radiometer, Tolerance: ±5%

Cooling System

Mechanical compression refrigeration system

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.


在线联系供应商

至: Standard International Group (HK) Limited
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

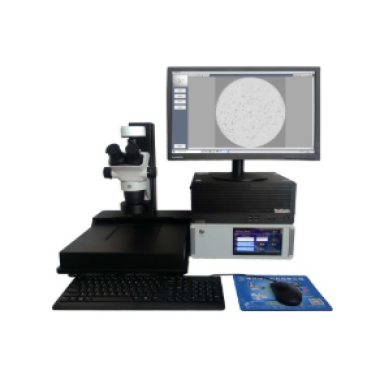

Cleanliness Analysis System
Cleanliness Analysis System Production: The cleanliness analysis system fully complies with the requirements of standards such as VDA19.1 - 2015. ISO16232. ISO4406. ISO4407. ...
Femoral Stem Fatigue Performance Testing Machine
Femoral Stem Fatigue Performance Testing Machine Standard YY/T 0809.4 (China): Specifies fatigue testing protocols for femoral stems in partial/total hip arthroplasty. ISO 7206-4 (International)...
UV Aging Test Chamber 450 X 450 X 450mm , Programmable Ozone Test Chamber
UV Aging Test Chamber 450 X 450 X 450mm , Programmable Ozone Test Chamber Use of environmental test chamber Ozone Test chamberis used for testing rubber and polymer. Ozone aging test chamberis a major factor in rubber...
Solar Simulation Chamber
Solar Simulation Chamber Features and Benefits 1.Full-spectrum precise reproduction a 4500 Wwater-cooledxenon arc lamp and SUS 304 mirrorworkroom, the spectral range cove...

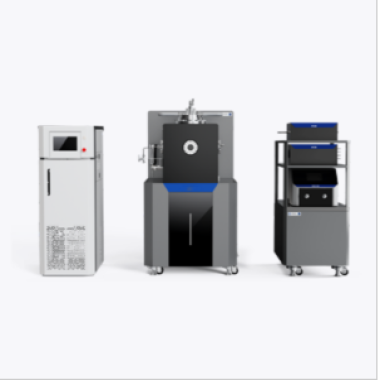

Multiphase High - temperature and High - pressure Explosion Limit Tester
