Helmets Xenon Lamp Aging Tester
Standards
ISO 4892-2: Plastics—Methods of exposure to laboratory light sources—Part 2: Xenon-arc lamps.
ASTM G155: Standard practice for operating xenon arc light apparatus for exposure of non-metallic materials.
GB/T 16422: Laboratory light exposure test methods for plastics, coatings, and rubber.
Product Advantages
Accelerated Aging: Mimic years of sunlight exposure in weeks, reducing R&D timelines.
Multi-Standard Compliance: Certified for global safety and material testing protocols.
Precision Control: Adjustable irradiance, temperature, and cycle timing for repeatable results.
Durable Construction: Stainless steel interior withstands corrosive testing environments.
User-Friendly Operation: Intuitive timer and height-adjustable helmet brackets simplify testing.
Product Features
Simulated Sunlight Spectrum:
125W xenon lamp emits UV radiation (250mm wavelength) to replicate natural sunlight.
Adjustable irradiance intensity for tailored testing severity.
High-Capacity Testing:
Simultaneously test up to4 helmetsper cycle.
Adjustable bracket height (25cm distance from lamp) accommodates various helmet sizes.
Automated Testing Cycles:
Built-in timer supports cycles up to 999 hours.
Programmable light/dark cycles for dynamic weather simulation.
Robust Materials:
Corrosion-resistant stainless steel interior and sample holders.
Durable sheet metal exterior for industrial use.
Safety Design:
Over-temperature protection and emergency stop function.
Viewing window for real-time monitoring without chamber access.
Technical Parameters
| Parameter | Specification |
|---|---|
| Sample Capacity | 4 helmets (simultaneous testing) |
| Xenon Lamp Power | 125W |
| Wavelength | 250mm (UV spectrum) |
| Helmet-to-Lamp Distance | 25cm (adjustable) |
| Timer Range | 1–999 hours (continuous/cyclic modes) |
| Chamber Material | Exterior: sheet metal |
| Power Supply | 220V/50Hz (110V/60Hz optional) |
| Power Consumption | 1.5KW (peak) |
| Dimensions (WxDxH) | 600mm x 500mm x 800mm |
| Weight | 85kg |
Accessories
Main Unit: Xenon lamp aging tester with 4-helmet capacity.
Adjustable Brackets: Stainless steel helmet holders (25cm lamp distance).
Xenon Lamp: 125W replacement lamp (pre-installed).
User Manual: Multilingual guide with safety protocols and maintenance tips.
Calibration Certificate: Traceable to ISO/ASTM standards.
Safety Kit: UV-resistant gloves and protective eyewear.
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
在线联系供应商
Other supplier products
 |
Thrust Washer Friction Testing Machine | The thrust washer friction testing machine is mainly used to simulate the frictional contact of materials under specific working conditions and t... |
 |
Textile Thermal Insulation Property Tester | Standard GB/T 41560-2022 (China): Specifies thermal resistance testing protocols for protective clothing and industrial fabrics. BS 6526:1998 (... |
 |

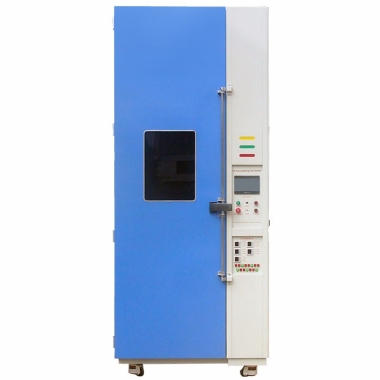

Solar Climatic Test Chamber | Features and Benefits 1. Fully Compliant with IEC 61215 Specifically designed for the UV preconditioning test in PV module qualification. Ensures y... |
 |

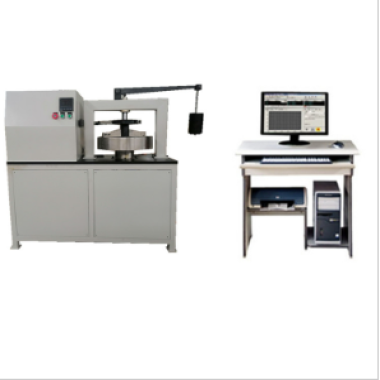

Micro Controll Constant-Speed Friction Plate Tester | A friction and wear testing machine is a device composed of a test force loading system, a friction force measuring system, an experimental clampin... |
 |

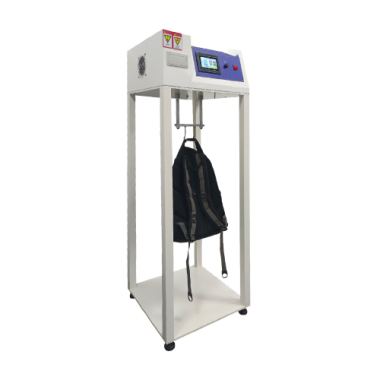

Bag lifting fatigue testing machine | This machine is suitable for up and down vibration fatigue test of plastic handbag, garbage vest bag, kraft paper bag, woven bag and other bags bea... |
