Sweating Thermal Manikin
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
Sweating mannequins are widely used in research on the moisture transfer properties of clothing and the microclimate conditions beneath garments. They are used to study the evaporative heat dissipation efficiency of clothing and to simulate sweating mechanisms. Sweating mannequins can be used to test the thermal resistance and moisture resistance of clothing, as well as to evaluate the non-evaporative heat dissipation performance of clothing.
The development of sweating mannequins has gone through several stages, from the first-generation static mannequins to the third-generation sweating simulation mannequins. The first-generation mannequins were used for static clothing thermal resistance testing, the second-generation mannequins expanded the evaluation of thermal and moisture performance, and the third-generation mannequins integrate computer technology to achieve precise temperature control and multi-environment simulation.
The applications of sweating mannequins also include studying the moisture transfer properties of clothing and the microclimate conditions beneath garments, as well as simulating sweating mechanisms. These mannequins can be used to test the thermal resistance and moisture resistance of clothing, as well as to evaluate the non-evaporative heat dissipation performance of clothing.
Standards
ISO 15831:2004 (E): Clothing-Physiological effects - Measurement of thermal insulation by means of a thermal manikin
ISO 23537-1:Requirements for sleeping bags
ASTM F 1291-04: Standard Test Method for Measuring the Thermal Insulation of Clothing Using a Heated Manikin
ASTM F 1720: Standard Test Method for Measuring Thermal Insulation of Sleeping Bags Using a Heated Manikin
ASTM F 2370: Standard Test Method for Measuring the Evaporative Resistance of Clothing Using a Sweating Manikin
ASTM F2371:Standard Test Method for Measuring the Heat Removal Rate of Personal Cooling Systems Using a Sweating Heated Manikin
ASTM F2732:Standard Practice for Determining the Temperature Ratings for Cold Weather Protective Clothing
EN 13537:Sleeping Bag Temperature Ratings Explained
EN 342:Clothing to protect against cold
ANSI/ISEA 201:Classification of Insulating Apparel Used in Cold Work Environments
ENV 342:Protective clothing - Ensembles for protection against cold
GB/T 18398 – Testing method for clothing thermal resistance
GB/T 11048 – Warmth retention property of textiles
Product Advantages
Human-Like Simulation: Mimics human thermoregulation via 32-zone heated segments, microporous "sweating" skin, and dynamic motion (walking/running) for realistic performance analysis.
Precision Engineering: ±0.1°C temperature control and segmented sweating rates (0–100% adjustable) deliver repeatable, human-independent test results.
Multi-Domain Applications: Validated for occupational safety gear, sportswear, aerospace suits, and extreme-environment protective clothing development.
Data-Driven Insights: ThermoTech software provides real-time thermal resistance (clo), evaporative resistance, and comfort metrics, eliminating subjective human trials.
Global Adoption: Trusted in 20+ countries for R&D in military, firefighting, and outdoor industries, meeting stringent safety certifications.
Product Features
Advanced Thermoregulation:
32 independently heated zones with 2°C max inter-segment differential for anatomical accuracy.
Isothermal or variable temperature modes (indoor to 55°C) simulate diverse climates.
Dynamic Sweating System:
Preheated water circulation ensures stable "sweat" evaporation, minimizing temperature-related errors.
Segmental control (0–100% rate adjustment) replicates localized perspiration patterns.
Motion Capability:
Adjustable gait (0–100 m/min walking; ≤250 m/min running) for dynamic thermal load testing.
Ergonomic neck cable enables unobstructed donning of helmets/masks.
Safety & Compliance:
Anti-leakage protection, overheat shutdown, and overrun alerts for operator safety.
Compliant with CE/UL electrical standards for global deployment.
Software Integration:
ThermoTech Control Analysis Suite: Real-time data visualization, EQT comfort modeling, and exportable reports (CSV/PDF).
Parameters
| Items | Parameters |
| Material | Antirust copper alloy material |
| Heating section | 32 section (other quantities need to be customized) |
| Temperature detection section | 32 section (other quantities need to be customized) |
| Temperature range | Indoor temperature-55℃ |
| Temperature control accuracy | ±0.1℃ |
| Temperature stability | ±0.1℃ |
| Heating output power | 800-1000W |
| Power accuracy | ≤1% |
| Height of manikin | 175cm(other height need to be customized) |
| Weight of manikin | ≤65kg |
| Heating component | Hot plate heat |
| Environment temperature monitor | 4 section |
| Environment humidity monitor | 2 section |
| Work modes | Constant temperature test, variable temperature test, constant power test, variable power test |
| Sweating system | Controlled, sweat preheating system |
| Walking speed | 0-100m/min |
| Running speed | ≤250m/min |
| Step | 0-100cm/step |
| Safety protection function | Anti-leakage safety protection device, overrun alarm, overheating automatic power off function |
| Test index | Thermal resistance results, Clo value and so on |
| Test software | ThermaoTech Control analysis software |
| Comfort evaluation module | Thermal comfort evaluation model and EQT evaluation model |
| Power | 220V, 50Hz |
| Dimension | 1200 mm(W)×1200mm(L)×2200mm (H) |
| Weight | 475kg |
在线联系供应商
Other supplier products
 |
Gravel Resistant Impact Tester/Stone chip tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Gravel Resistant Impact Tester/Stone Chip Tester T201 is specifically designed... |
 |
Fiber Thermal Shrinkage Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Application This tester is ideal for thermal shrinkage testing of single chemical... |
 |
Medical needle toughness tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Application (1) Medical disposable injection needles – evaluating bending d... |
 |

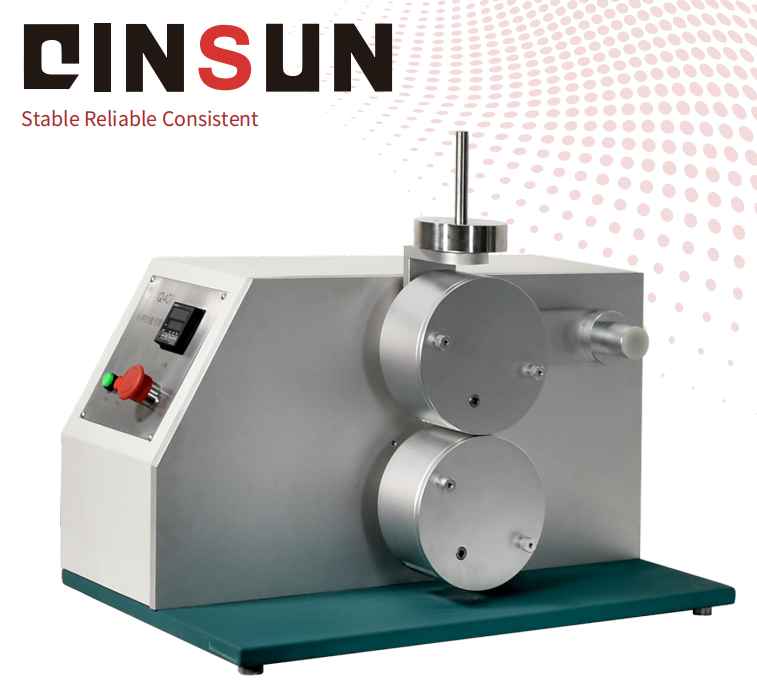

Velcro Fatigue Tester | ASTM ISO Testing Machine | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The hook and loop fastener fatigue tester/hook and loop tape fatigue strength test... |
 |
