Chemical Protective Robotic Manikin
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
Designed for Military CB Testing: Specifically developed and commissioned by leading defense R&D organizations for the rigorous testing of military CB protective gear.
High Chemical Resistance: Constructed with chemically resistant materials suitable for operation in harsh chemical environments.
Realistic Movement Simulation: Full-size, articulated body with 10 axes of motion and internal actuators can simulate a wide range of realistic infantry movements and activities.
Long Duration Testing: Capable of performing test sequences lasting up to six hours in challenging environments.
Versatile Configuration: Includes both a full-size mannequin and an interchangeable, portable upper body head form for different testing needs and chamber sizes.
Accurate Anthropometry: Produces accurate anthropometric data, ensuring protective gear fits and performs realistically on the manikin.
Integrated Data Collection: Features a dosimeter holder for collecting crucial data on garment integrity and agent penetration.
Sophisticated Control: Fully computer-controlled system allows for precise and repeatable execution of complex motion protocols.
Durable and Realistic Skin: Features custom-developed soft, chemical-resistant elastomer skin.
Technical Parameters
Motion System
| Item | Technical Parameter |
|---|---|
| Number of motion axes | 10 axes |
| Drive method | External motor-driven frame |
| Head motion | Internal lightweight actuators, synchronized |
| Motion mode | Programmable composite motion sequences |
| Continuous operation time | ≤ 6 h |
Support and Installation
| Item | Technical Parameter |
|---|---|
| Support points | Hands, face (manikin), feet |
| Foot fixation | Strapped foot boards |
| Head form support | Supported at head base |
| Interchangeability | Full manikin and head form interchangeable in same drive frame |
Surface and Skin Material
| Item | Technical Parameter |
|---|---|
| Skin material | Chemical-resistant elastomer |
| Coverage area | Head, neck, wrists, waist |
| Material property | Designed for CB exposure environments |
| Optional skin | Disposable silicone skin |
Sampling and Dosimetry
| Item | Technical Parameter |
|---|---|
| Dosimeter mounting | Integrated mounting locations |
| Sampling method | Passive sampling |
| Compatibility | Customer-specified dosimeters supported |
Mechanical and Detection Characteristics
| Item | Technical Parameter |
|---|---|
| Width range | 1–5 cm |
| Stretch range | 30%–70% |
| Detection linearity | 0.8–1.0 |
| Detection limit | 0.01%–0.1% |
| Fatigue life | ≥ 200,000 cycles |
在线联系供应商
Other supplier products
 |

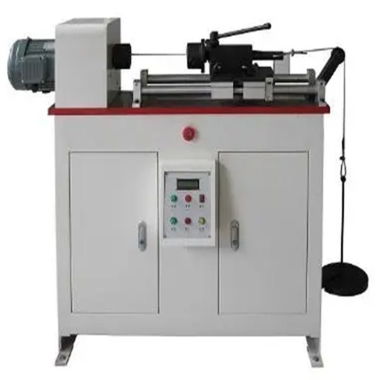

Metal Wire Wrap Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Metal Wire Wrap Tester is designed to evaluate the ductility and winding perfo... |
 |
