Multi-Function Friction and Wear Tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Multi-Function Friction and Wear Tester is a highly configurable tribological testing system designed for comprehensive evaluation of friction and wear behavior of materials. The system offers an extra-large working space, an ultra-wide load range, and the capability to integrate an in-situ 3D optical surface profiler. With interchangeable test modules and optional environmental chambers, it supports tribological testing from nano to macro scales under controlled temperature, humidity, pressure, or vacuum conditions. The instrument is widely used across aerospace, automotive, biomaterials, coatings, optics, polymers, semiconductors, and related research fields.
Application
The system is suitable for tribological performance evaluation in a wide range of testing scenarios, including but not limited to:
Friction and wear characterization of metallic materials, ceramics, polymers, coatings, and composites
Lubrication performance assessment of lubricating oils and greases
Wear mechanism analysis of bearings, gears, seals, and functional coatings
Tribological simulation of biomedical components such as artificial joints and dental materials
Surface damage, scratch resistance, and micro-motion wear studies
Supported test configurations include ball-on-disk, pin-on-disk rotation, reciprocating ring-on-block, fretting, scratch testing, and other modular test modes.
Standards
The Multi-Function Friction and Wear Tester is designed to support test methods referenced in the following standards:
ASTM G99 (Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus)
ISO 20808 (Fine ceramics — Determination of friction and wear characteristics of monolithic ceramics by ball-on-disk method)
GB/T 3142 (Determination of load-carrying capacity of lubricants — Four-ball method)
SH/T 0189 (Test method for anti-wear properties of lubricating oils — Four-ball method)
Parameters
| Item | Description |
|---|---|
| Z-axis Drive System | High-precision multi-Z-axis system for accurate loading; supports in-situ 3D surface profiling and Raman spectroscopy integration |
| Platform Design | Open-architecture platform providing a large and flexible working area |
| Interchangeable Test Modules | Replaceable lower test modules enabling multiple test modes (rotation, reciprocation, ring-block, fretting, scratch); automatic module recognition |
| Environmental Control | Temperature: −120 °C to 1200 °C; Humidity: 5–95 % RH; Pressure: up to 200 psi; Vacuum: down to 10⁻⁷ torr |
| Force Sensors | Interchangeable sensors from mN to 12.000 N (capacitive, piezoelectric, strain-gauge types) |
| In-situ 3D Profiling | Automatic imaging with nanometer-level resolution; four optical modes: confocal, white-light interferometry, dark-field, bright-field |
| XY Positioning Stage | Travel range 130 mm × 270 mm for precise positioning between friction testing and surface scanning locations |
| Data Acquisition & Motion Control | High-speed, low-noise controller with fast feedback; data sampling rate up to 200 kHz |
| Z-axis Travel | 150 mm |
在线联系供应商
Other supplier products
 |
Contact Lens Oxygen Permeability Analyzer | Whats/App: +86 156 1874 6768 Web: standard-groups.com Product Introduction: Contact lens oxygen permeability measuring instrument (polarography)... |
 |
Medical Face Mask Differential Pressure Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Medical face mask differential pressure tester also called mask breathility tester is to de... |
 |
SUGA S80 Carbon Arc Weathering Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications The SUGA S80 Carbon Arc Weathering Tester utilizes eight sunlight carbon arc ... |
 |
UV Aging Test Chamber 450 X 450 X 450mm , Programmable Ozone Test Chamber | Use of environmental test chamber Ozone Test chamberis used for testing rubber and polymer. Ozone aging test chamberis a major factor in rubber c... |
 |

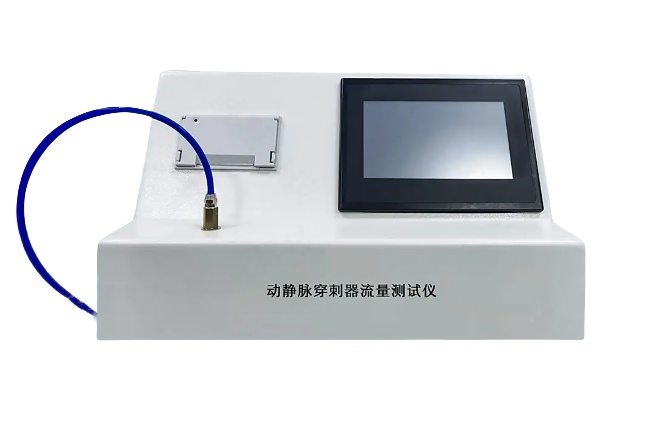

Custom Pressure Transmission Flow Meter Test Instrument | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The design and manufacture of the Pressure Transmission and Flow Tester need to ... |
