Twist Compression Tester

Get a quote:

Email:info@qinsun-lab。com

Web: qinsun-lab.com

The Twist Compression Tester is a laboratory tribology instrument designed to evaluate friction behavior and adhesive wear properties of materials under combined axial compressive load and relative torsional motion. You use this system to perform standardized tests under dry or lubricated conditions in accordance with ASTM G223, enabling reliable comparison of material friction coefficients, friction torque, and adhesive wear performance.

Standards

ASTM G223 – Standard Test Method for Measuring Friction and Adhesive Wear Properties of Lubricated and Nonlubricated Materials Using the Twist Compression Test

Parameters

ParameterSpecification
Hollow Cylinder Specimen 25 mm outer diameter, 3 mm wall thickness
Flat Specimen 40 × 40 mm, 3 mm thickness (variable)
Load Range 1.5 – 50 kN
Loading Method Hydraulic
Load Measurement Load cell
Load Control Manual
Friction Measurement Force transducer
Test Temperature Ambient
Lubrication Manual
Rotational Speed 0 – 37.4 rpm
Motor Type Three-phase AC gear motor
Motor Power 2.6 kW
Maximum Output Torque 630 Nm
Control and Data Acquisition Touch-screen PLC
Data Export USB storage

在线联系供应商

至: Standard Groups
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

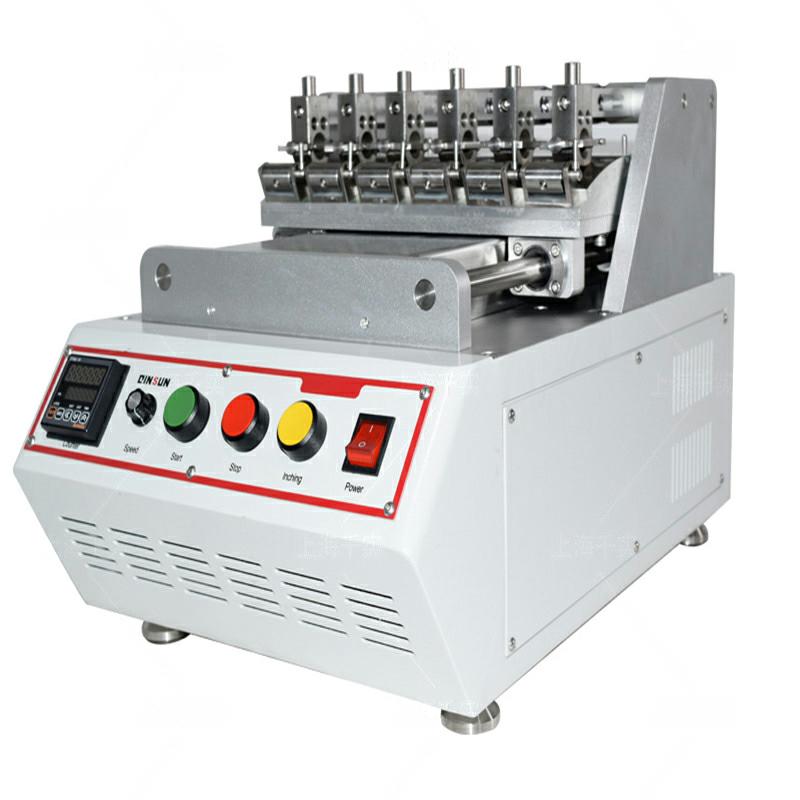

JIS Rubbing Color Fastness Tester
