High-Precision Material Thermal Conductivity Tester
TheHigh-Precision Material Thermal Conductivity Tester is suitable for steady-state thermal performance evaluation of materials with low to medium thermal conductivity, including:
Thermal insulation materials
Plastics and polymer-based materials
Rubber and elastomer materials
Aerogel panels and advanced insulation boards
Vacuum glass and building energy-saving materials
Solid materials and powder materials (with appropriate sample configuration)
The instrument is widely used in universities, research institutes, quality inspection laboratories, and industrial material testing facilities for thermal conductivity and thermal resistance analysis.
Standards
The instrument is designed and operated in accordance with the following international and national standards:
GB/T 10295-2008
Thermal insulation — Determination of steady-state thermal resistance and related properties — Heat flow meter method
ASTM E1530
Standard Test Method for Evaluating the Resistance to Thermal Transmission of Materials by the Guarded Heat Flow Meter Technique
ASTM C518-04
Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
Parameters
| Item | Specification |
|---|---|
| Thermal conductivity range (low range) | 0.0001 – 1 W/m·K (resolution up to 0.1 mW/m·K) |
| Thermal conductivity range (extended) | 0.001 – 300 W/m·K |
| Measurement accuracy | ±1% |
| Sample size | 50 × 50 to 300 × 300 mm |
| Maximum sample thickness | ≤ 50 mm |
| Optional sample sizes | 600 × 600 mm, 800 × 600 mm (customized) |
| Applicable sample form | Solid materials, powder materials |
| Test duration | 15 – 20 min |
| Hot plate temperature range | Room temperature to 99.9 °C (standard) |
| Optional hot plate range | Room temperature to 499.9 °C or higher (by agreement) |
| Hot plate control accuracy | 0.1 °C |
| Cold plate temperature range | 0 – 99.9 °C (standard); –10 – 99.9 °C optional |
| Cold plate temperature control | Water-cooled, precision constant-temperature bath |
| Cold plate control accuracy | 0.1 °C |
| Pressure range | 0 – 1000 N |
| Pressure resolution | 0.1 N |
| Thickness measurement range | 0 – 50 mm |
| Thickness resolution | 0.1 μm |
| Heat flow sensor | Imported original heat flow meter |
| Test operation | Fully automatic computer-controlled testing and data storage |
| Power supply | AC 220 V / 50 Hz |
在线联系供应商
Other supplier products
 |

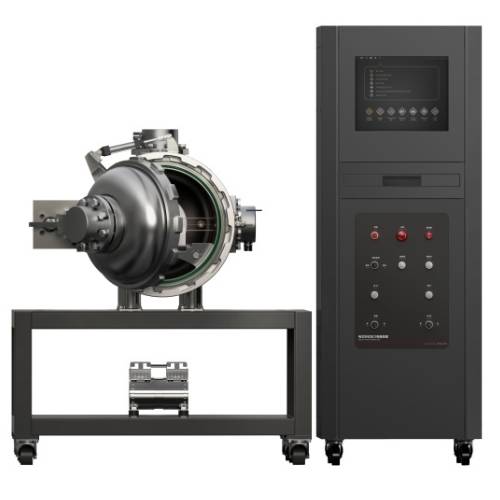

Battery Cell Test Pressure Vessel | The Battery Cell Test Pressure Vessel is designed for thermal runaway testing of battery cells in compliance with UL 9540A. The system provides a f... |
 |
High-Temperature Curing Chamber | High-Temperature Curing Chamber, also known as a drying and curing room, is an advanced hot air circulation system designed for curing large electr... |
 |

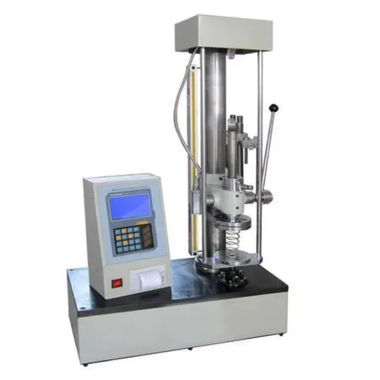

Spring Testers and Testing Machines | The Spring Tension and Compression Testing Machine is designed to accurately evaluate the tensile and compressive deformation, as well as the load ... |
 |
