Seatbelt Test Dummy ECE R16
The ECE R16 crash test dummy is a professional anthropomorphic test device representing a 50th percentile adult male. You can use it for dynamic seatbelt testing, vehicle restraint system evaluation, and occupant injury analysis. Its design accurately reflects human mass distribution and body dimensions, making it compatible with test sleds, vehicle seats, and other restraint system loading devices. The dummy complies with GB 14166-2013 and ECE R16, enabling regulatory and certification testing.
Standards
You can conduct tests using this dummy in accordance with the following standards:
(1) GB 14166-2013 — Motor Vehicle Occupant Restraint System Crash Test Dummy;
(2) ECE R16 — Uniform Provisions Concerning the Approval of Vehicles with Regard to Safety Belts;
(3) ISO 15830 — Road Vehicles — Side Impact Dummies for Restraint System Assessment;
(4) Additional applicable regional or NCAP requirements for safety belt testing.
Parameters
Body Dimensions
| No. | Parameter | Dimension (mm) |
|---|---|---|
| 1 | Head Width | 160 ± 5 |
| 2 | Shoulder Width | 465 ± 5 |
| 3 | Trunk Width at Hip | 120 ± 5 |
| 4 | Hip Width | 340 ± 5 |
| 5 | Knee Center to Foot Height | 510 ± 10 |
| 6 | Hip Center to Foot Height | 990 ± 10 |
| 7 | Upper Trunk Plane to Foot Height | 1470 ± 10 |
| 8 | Head Bolt Center to Foot Height | 1600 ± 10 |
| 9 | Head Top to Foot Height | 1750 ± 10 |
| 10 | T-Point Height | 720 ± 5 |
| 11 | P-Point Height | 320 ± 5 |
在线联系供应商
Other supplier products
 |
Comprehensive Engine Oil Filter Test Bench - lab instrument | Application This test bench is designed for comprehensive evaluation of engine oil filters, including spin-on filters and filter bypass valves. It... |
 |
Powder Wet Vibrating Screen System For Lithium Battery Material Testing | The Powder Wet Vibrating Screen System is designed for particle size separation and distribution analysis of lithium battery materials under wet co... |
 |
Cone calorimetric test equipment - lab instrument | We are a professional testing instrument manufacturer offering complete laboratory testing solutions. If you need more information or wish to explo... |
 |

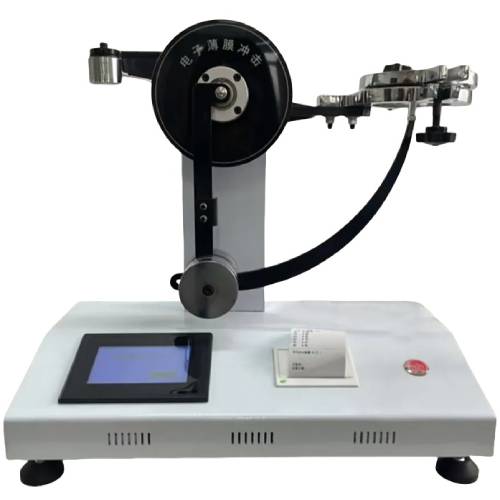

Pendulum Impact Testing Machine For Plastic Film | Pendulum Impact Testing Machine for Plastics and Composite Materials.Pendulum Impact Testing tester is specifically designed for evaluating the imp... |
 |
