ISO 12137:2011Scratch Resistance Tester
Get a quote：
Web: qinsun-lab.com
Email：serving@qinsun-lab。com
ISO 12137:2011 Scratch Resistance Tester is used to evaluate the scratch resistance of surfaces on electronic information equipment, household appliances, coatings, and plastic materials. The instrument applies a constant or variable load to the sample surface via a scratch needle, forming scratches under controlled movement distance and speed conditions. This enables quantitative assessment of material surface hardness, abrasion resistance, and brittleness. It meets industry standard testing requirements for coatings, films, plastics, and metal surfaces.
Application
Scratch resistance testing of enclosures and panels for information technology equipment;
Scratch resistance testing of enclosures for household and similar appliances;
Scratch resistance evaluation of coating materials, plastics, films, rigid organic materials, and soft metal surfaces;
Industry standard testing for coatings and paint films, such as automotive coatings, wheel coatings, and protective coatings for metal surfaces;
Material performance comparison during laboratory R&D and quality control phases;
Applicable for standard scratch testing in textile, electronics, chemical, automotive, and component industries.
Standards
GB 4943.1-2011 Part 1: Information Technology Equipment Safety — Clause 2.10.6.6: Mechanical Strength / Scratch Resistance of Enclosures
JIS K 5600-5-4:1999 Paint Scratch Hardness (Pencil Method)
ISO 12137:2011 Paints and varnishes — Measurement of resistance to scratching
ASTM D7027-05 Test for Resistance of Paint Films to Scratching
Parameters
| Item | Technical Parameter |
|---|---|
| Stylus Type | Conical, R 0.005~1.0 mm, optional diamond stylus |
| Constant Load Weight | 0~200 g, higher load can be achieved by stacking continuous weights |
| Continuous Weights | 0~50 g, 0~100 g, 0~200 g; can be stacked with constant load weights to form 100~300 g load |
| Moving Speed | 5 mm/min ~ 6000 mm/min |
| Moving Distance | 1~100 mm |
| Motion Mode | Single mode: stops automatically after moving the set distance; Repeat mode: reciprocates the set distance (up to 99,999,999 times) |
| Worktable Size | 240 × 120 mm |
| Safety Device | Safety cover |
| Operating Environment | 0~50℃, ≤85% RH, no condensation |
| Drive Motor | AC servo motor |
| Drive System | Rack and pinion type |
| Power Supply | AC 100V 50/60Hz |
| Dimensions | Body: W630 × D350 × H390 mm, maximum height 460 mm |
在线联系供应商
Other supplier products
 |
Fabric Negative-ion Concentration Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Applications Functional Textile R&D: Assesses air-purifying, health-enhancing... |
 |
Deval abrasion testing machine | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Deval Abrasion Testing Machine is designed to measure the wear resistance of s... |
 |

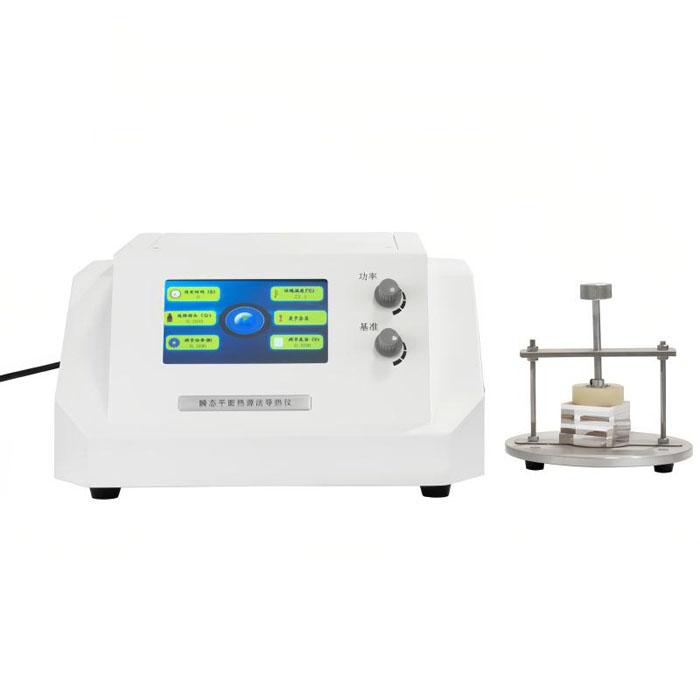

Benchtop Thermal Conductivity Tester (Heat Flow Method) | Get a quote： Web: qinsun-lab.com Email：serving@qinsun-lab。com The Benchtop Thermal Conductivity Tester is primarily used for thermal performance... |
 |
