Abrasion and scratch failure simulation tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
Scratch resistance testing of plastic and polymer materials
Surface performance evaluation of coatings and painted components
Scratch testing of automotive interior and trim parts
Durability assessment of packaging and electronic enclosure materials
Routine quality control and laboratory material evaluation
Standards
ISO 19252 — Plastics — Determination of scratch resistance of plastics and coated plastics by progressive load test
ASTM D7027-05 — Standard Test Method for Instrumented Indentation Test for Plastics (Scratch Resistance Test)
Parameters
| Parameter | Specification |
|---|---|
| Model | KK-02 |
| Dimensions | W545 × D455 × H680 mm |
| Weight | 65 kg |
| Power supply | AC 100 V |
| Maximum power consumption | 60 W |
| Operating environment | 10–40 ℃, 30–70 %RH, non-condensing |
| Test method | Progressive load method |
| Scratch direction | Left → Right |
| Vertical load range | 1–50 N |
| Horizontal load | 50 N |
| Scratch distance | Max. 400 mm |
| Scratch speed | 1–200 mm/s |
| Scratch depth detection | Laser displacement sensor |
| Sample size | 200 × 420 mm, thickness ≤ 5 mm |
Accessories
(1) Standard scratch stylus Φ1 mm
(2) Optional scratch styli for different scratch types
(3) USB connection cable
(4) Software and user manual
(5) Safety cover (optional)
Test Procedures
Mount the sample securely on the test platform.
Configure load, speed, and scratch distance on the touchscreen.
Perform teaching calibration if required.
Run the scratch test and monitor data collection.
Save and export the test results.
Maintenance Information
Clean test components after use.
Periodically check stylus condition and alignment.
Keep sensors free from dust and contamination.
Operate the instrument in a stable environment.
在线联系供应商
Other supplier products
 |
Sliding Bearing Fatigue Test Apparatus | Standards ASTM D2596 / ASTM D2783 / IP 239 EP, DIN 51350 / 1-5. ISO / CD 11008. VW 1444. VW 1454 Material Research and Development During the re... |
 |
High-precision thermal conductivity tester using heat flow method | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The Thermal Conductivity Tester is mainly used for thermal performance evaluat... |
 |
Material Testing Cunan Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications The Kernel Test Instrument is used to assess the sensitivity of solid and liq... |
 |

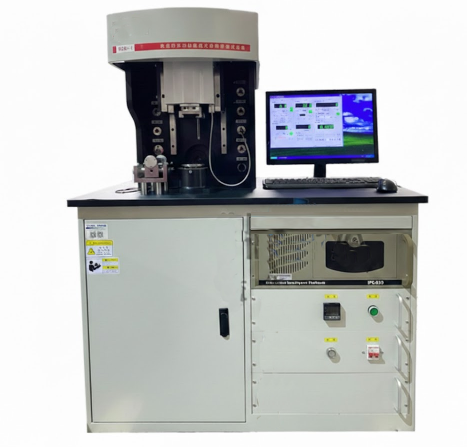

Rotary Reciprocating Friction Wear Testing Machine | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications You can use this tester to: Evaluate the tribological performance of materia... |
 |
