Air Intake Filter Test System
Get a quote：
Whats/App: +86 181 0160 0864
Web: gellowen.co.uk
The Air Intake Filter Test System is designed for testing industrial air filters and engine air filters according to ISO 5011. It evaluates filters’ performance for combustion engines and industrial machinery, providing precise measurements of pressure, dust loading, and particle filtration efficiency. The system supports both standard ISO testing and customer-specific protocols.
Application
This system is used for:
Engine Air Intake Filters: Testing filtration performance according to ISO 5011.
Industrial Air Filters: Performance testing for machinery intake filters.
Customer-Specific Standards: Flexible adaptation for custom test requirements.
Quality Control & R&D: Evaluating filter efficiency, dust holding capacity, and airflow restriction.
Standards
The system complies with:
(1) ISO 5011 – Air filter test for combustion engines and industrial machinery.
(2) ISO 12103-1 – Test dust (fine and coarse) for filter efficiency evaluation.
(3) ISO 10263 – Dust retention testing and gravimetric efficiency.
Parameters
| Parameter | Unit | Value |
|---|---|---|
| Test Flow Rate | m³/min | 2 … 50 (at 20°C and 1013 hPa) |
| Differential Pressure Measuring Range | Pa | ≤ 15,000 |
| Compressed Air Supply | bar | 6 |
| Power Supply | – | 400 VAC, 125 A |
| Test Aerosol | – | ISO 12103-1 A2 (fine), ISO 12103-1 A4 (coarse) |
Features
Powerful Two-Stage Flow Generation: Provides stable and adjustable airflow for a wide range of filters.
Precise Flow Rate Measurement: Flow adjustable for each application and standard.
Mass Flow Regulated Dust Dosing: Ensures accurate dust loading for consistent testing.
High Automation: Test runs are mostly automated, including data collection, operator guidance, and report generation.
Comprehensive Filter Evaluation: Measures differential pressure, airflow restriction, dust loading, gravimetric efficiency, and downstream particle size distribution.
在线联系供应商
Other supplier products
 |
Spinneret Inspection Microscope | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk ① Mechanical Components Overview 1. This machine employs an X-Y-Z three-axis moti... |
 |
Block-on-Ring Tribometer Tester (Type 1) | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Ring-on-Block Friction and Wear Tester (Type 1) is designed to evaluate the we... |
 |
Photovoltaic module outdoor exposure test system | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Photovoltaic Module Outdoor Exposure Test System is designed to simulate real-... |
 |
Full-Scale Room Corner Fire Test Apparatus | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Full-Scale Room Corner Fire Test Apparatus is designed to evaluate the combust... |
 |

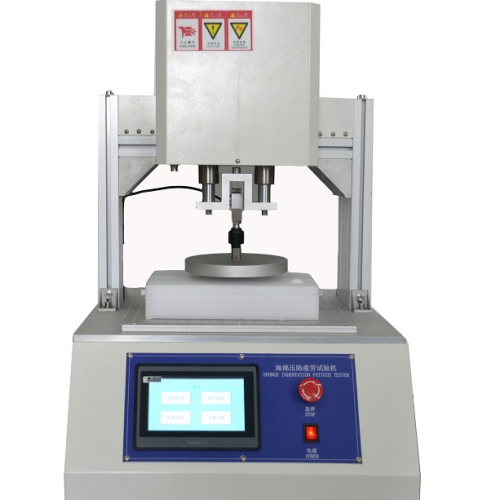

Foam Repeated Compression Tester | Foam Compression Testers - Durable & Reliable Solutions | Product Description: Foam repeated compression testing machine will accurately measure the thickness of the test piece, placed in the compression ... |
