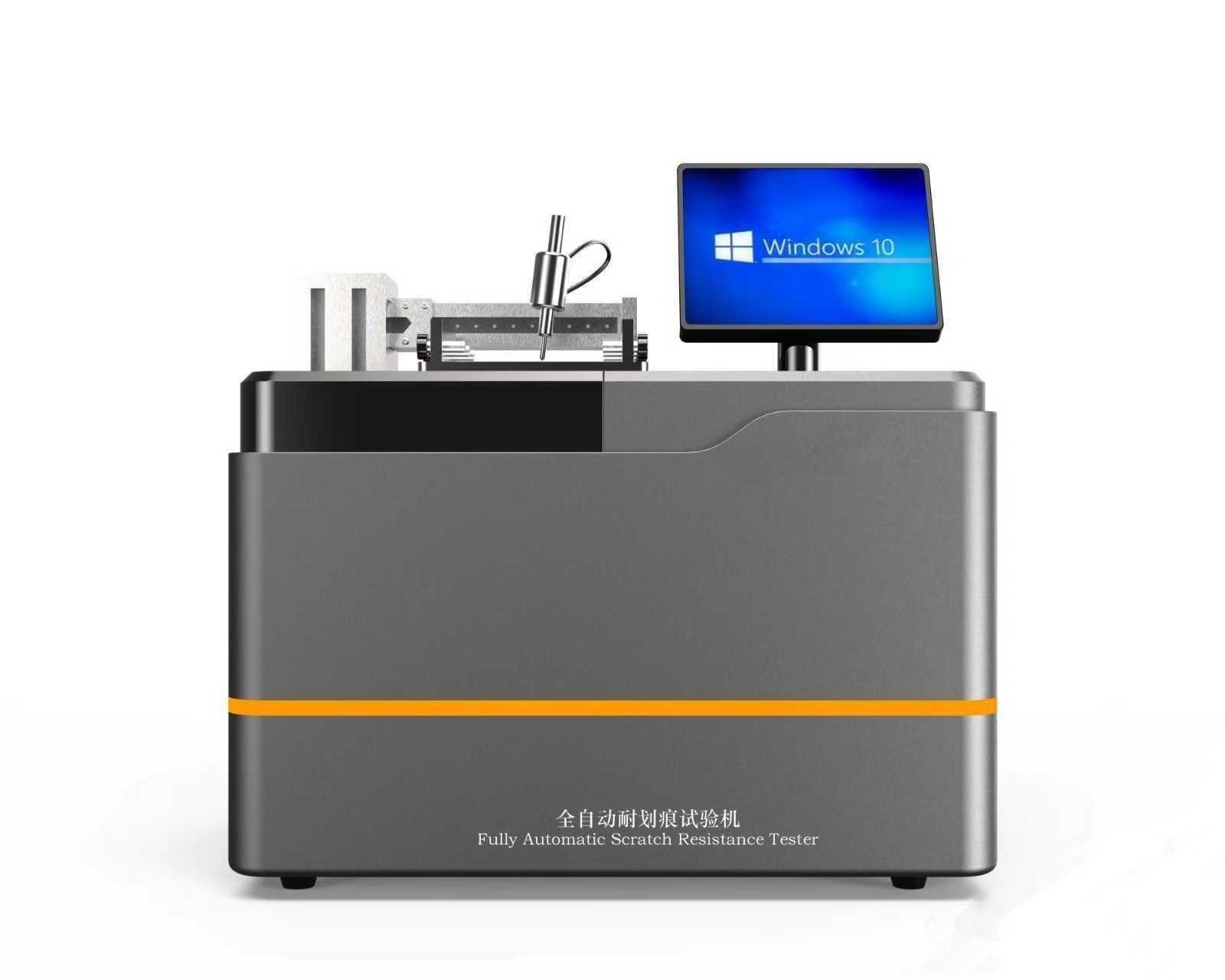

Scratch Resistance Tester KK-01
Get a quote：
Whats/App: +86 181 0160 0864
Web: gellowen.co.uk
The KK-01 Scratch Resistance Tester is designed to evaluate the scratch resistance of plastics, films, coatings, and automotive interior and exterior materials under high load conditions. By applying a vertically increasing load through a scratch stylus and moving it horizontally across the sample surface, you can quantitatively determine scratch behavior and surface damage characteristics, supporting material development and durability assessment.
Application
You can use the KK-01 for the following applications and test materials:
Scratch resistance evaluation of plastic molded products
Scratch performance testing of coated and painted surfaces
Scratch durability assessment of automotive interior and exterior components
Scratch testing of optical materials, packaging materials, and electronic housings
Material research, formulation comparison, and quality control under high-load conditions
Standards
ISO 19252 — Plastics — Determination of scratch resistance of plastics and coated plastics by progressive load test
ASTM D7027-05 — Standard Test Method for Instrumented Indentation Test for Plastics (Scratch Resistance Test)
Parameters
| Parameter | Specification |
|---|---|
| Model | KK-01 |
| Dimensions | W965 × D530 × H690 mm |
| Weight | 150 kg |
| Power supply | AC 100 V |
| Maximum power consumption | 60 W |
| Operating environment | 10–40 ℃, 30–70 %RH, non-condensing |
| Test method | Progressive load method |
| Scratch direction | Left → Right |
| Vertical load range | 1–200 N |
| Horizontal load | Max. 200 N |
| Scratch distance | Max. 400 mm |
| Scratch speed | 1–400 mm/s |
| Scratch depth detection | Laser displacement sensor |
| Sample size | 200 × 420 mm, thickness ≤ 5 mm |
