Gate Valve Vs. Ball Valve
Gate Valve Vs. Ball Valve
Gate valves and ball valves are both types of valves that are used to control the flow of a fluid in a piping system. Both types of valves are widely used in a variety of applications, including oil and gas, chemical processing, water treatment, and power generation. However, there are some key differences between gate valves and ball valves that should be considered when selecting the right valve for a specific application.
Operating Differences

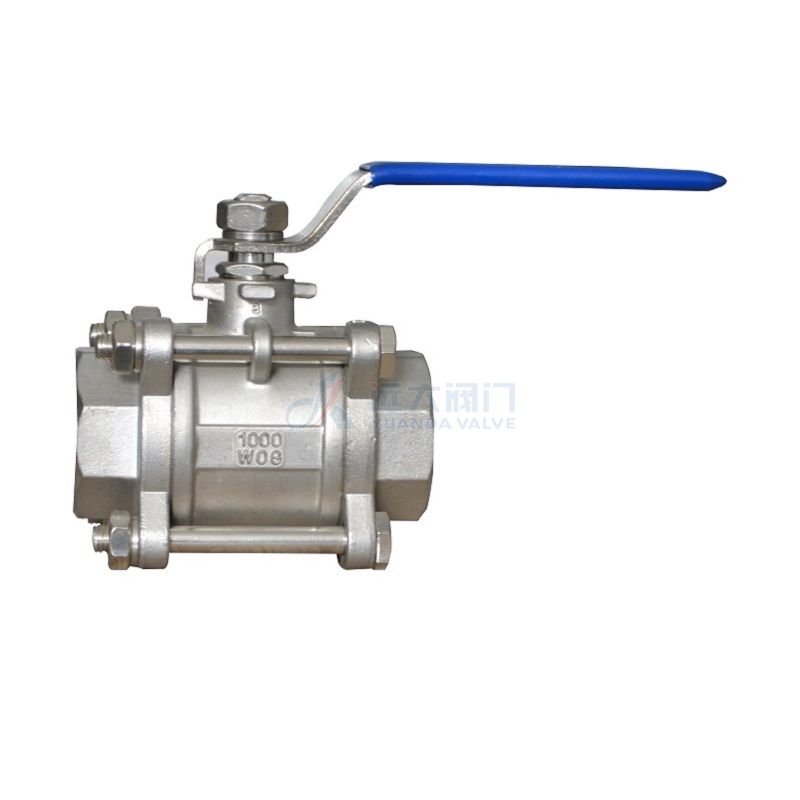

use a rotating ball with a hole and a stem. When the handle attached to the stem is turned, it causes the ball to rotate, thus opening or closing the valve. This type of valve is also known as a quarter-turn valve because the handle only needs to be rotated 90° (a quarter turn) to allow or stop the flow of media. When the handle is parallel to the pipe, the valve is open, and when the handle is perpendicular to the pipe, the valve is closed. (More detailed technical articles about ball valves)
Gate valves use a gate to control the flow of media. The gate is a solid disc structure that is attached to the valve stem. The gate is lifted to open the valve and released back into position to close the valve. The valve has a bonnet that controls the position of the gate when rotated. This type of valve is also known as a multi-turn valve because it requires more than 360° of rotation to fully open or close the valve. (More detailed technical articles about ball valves)
Another difference between gate valves and ball valves is the way they seal. A gate valve relies on a seal between the gate and the body of the valve to prevent leaks. This seal can be prone to wear and tear over time, which can lead to leaks. Ball valves, on the other hand, rely on a tight seal between the ball and the valve body to prevent leaks. This seal is typically more reliable and durable than the seal in a gate valve, which makes ball valves less prone to leaking.
Advantages and Disadvantages
Due to the differences in operation and design between gate valves and ball valves, both have certain advantages and disadvantages. Depending on your application, one is usually better than the other. Check out our table below to learn the key differences between gate and ball valves.
