Electrostatic Decay Tester
Production:
Electrostatic Decay Testeris professional designed to determine the attenuation of static electricity, corona discharge time, static voltage attenuation half-life, static decay curve and other electric property of fiber, yarn, fabric, textile or plate materials. It is suitable for measuring the diffusibility of static in the testing samples.
Standard：
JIS L 1094
GB/T 12703
Feature：
Electrostatic Decay Tester is an analyzing and computing unit which can automatically compute the half-life period of voltage decay from the static decay carve obtained from the host meter.
By connecting the analyzer and the honest meter together, it is possible to measure the attenuation of materials automatically in one-touch action.
Separation design of tester and controller is easy and safe to operate.
Digital voltmeter will display the testing results.
Automatically stop for high voltage and motor.
Optional data analysis software can provide more detailed information and results.
Technical Parameters：
| Items | Parameters |
| The measuring range of electrostatic voltage | 0 ~ 10kV |
| The half-life time range | 0 ~ 99.99 h |
| Rotation speed | 1500 RPM |
| Discharge time | 0 ~ 99.99 s (test is scheduled (30 + 0.1) seconds) |
| Discharge distance between needle electrode and specimen | 20mm |
| Measurement distance between test probe and specimen | 15mm |
| The static voltage calibration was performed before the instrument was issued Check before use. The cylinder must be filled with oil (transformer oil) |
|
| Sample size | 60mm x 80mm |
| Power |
220V 50Hz 1.5kw |
在线联系供应商
Other supplier products
 |

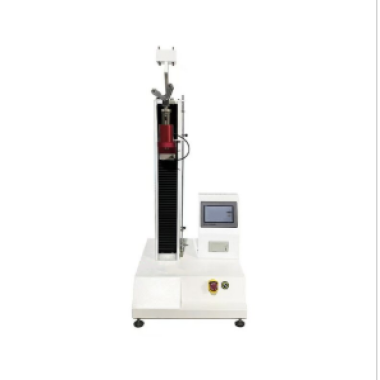

Safety Helmet Chin-strap Strength Tester/ Chin strap tensile tester / helmet chin strap tester | Standard GB/T 2812-2006: Safety Helmets GB/T 2811-2019: Head Protection – Vocabulary and Test Methods Equivalent Compliance: ISO/EN 397 ... |
 |
