Automatic Reaction Calorimeter

This instrument is a professional testing instrument that simulates the specific process of chemical reactions on a liter scale, and measures and controls important process variables. It can simulate the real situation of batch or semi-batch reactions in a factory under laboratory conditions.

Applications

This instrument simulates real-world intermittent or semi-intermittent reactions in a factory, measuring the exothermic heat flow of samples within the reactor in real time. It obtains information on the total exothermic heat, specific exothermic heat, real-time conversion rate, and material accumulation, automatically calibrating the specific heat capacity and heat transfer coefficient of the material system. It then calculates the adiabatic temperature rise of the target reaction and the maximum temperature the system can reach after runaway, thereby assessing the hazard level of the reaction process and providing a basis for process optimization and scale-up. It is widely used in reaction process design, process optimization and scale-up, process safety assessment, and scientific research on reaction thermodynamics in fields such as fine chemicals, pharmaceuticals, agricultural fertilizers, and third-party safety assessment.

Standards

GB 51283-2020: Fire Protection Standard for Engineering Design of Fine Chemical Enterprises

GB/T 22232-2008: Determination of Thermal Stability of Chemical Substances - Differential Scanning Calorimetry

GB/T 17802-2011: Thermal Analysis Test Method for Kinetic Constants of Thermally Unstable Substances

SN/T 3078.1-2012: Guidelines for the Evaluation of Thermal Stability of Chemicals - Part 1: Accelerated Calorimetry

Features

1. It offers three calorimetry methods: heat - flow, power - compensation, and reflux, allowing users to choose according to their needs.

2. It supports multiple operation modes such as isothermal, constant - temperature, and scanning.

3. Optional glass normal - pressure reaction vessels, glass medium - pressure reaction vessels, and metal high - pressure reaction vessels are available.

4. It has an external database, and one system supports the interchange of multiple sets of reaction vessels.

5. With high - power heating and cooling units, it features fast temperature - control response and high - precision exothermic measurement.

6. Automatic feeding control can be achieved by mass or volume measurement.

7. It can accurately measure and obtain process - safety - related data such as reaction heat - flow, reaction enthalpy, conversion rate, specific heat capacity of samples, adiabatic temperature rise, and the maximum temperature that an out - of - control system can reach.

8. The Chinese - language software platform enables flexible programming of experimental procedures, real - time monitoring of key reaction - process data, and online modification of experimental procedures and parameters.

9. It can display the temperature inside the vessel, the temperature of the jacket, the mass of the added materials, and other test status information in real - time.

10. The safety thresholds for key parameters and states can be set. In case of reaction out - of - control, it can be quickly cooled with one click, and it will issue alarms and automatically stop in case of abnormal states, effectively ensuring safety.

11. It can automatically generate and save charts and data, and export experimental analysis reports.

Technical Parameters

Calorimetry Method	Heat Flow, Power Compensation (Option), Reflow (Option)
Temperature Control
Kettle Temperature Range	(-25 to 200)°C
Oil Bath Temperature Range	(-45 to 250)°C
Control Method	Isothermal, Constant Temperature, Scanning
Temperature Resolution	1.0mK
Temperature Control Precision	±0.1K
Silicone Oil Circulation Speed	(35 to 76)L/min
Control
Driver Voltage Range	(0 to 50)VDC
Driver Maximum Current	3.0A
Heater Maximum Power	120W
Atmospheric Pressure Glass Kettle (Option)	1000mL, other volumes available
Reactor Volume	Atmospheric Pressure
Working Pressure	Glass
Reactor Material	Medium-Pressure Glass Kettle (Option)
Medium-Pressure Glass Kettle (Option)
Reactor Volume	0.6MPa or 1.2MPa
Working Pressure	Glass
Kettle Material	316L Stainless Steel or Hastelloy
Kettle Lid Material	1000mL, other volumes customizable
High-Pressure Metal Reactor ( (Optional)	10MPa
Reactor volume	316L Stainless Steel or Hastelloy
Working pressure	Stirrer
Reactor material	2000r/min, 3000r/min optional
Stirrer
Maximum speed	Anchor or Paddle
Maximum torque	PTFE, 316L, or Hastelloy
Stirrer paddle form	Sampling system
Stirrer paddle material	Range 3100g, Accuracy 0.01g
Sampling system
Precision balance	Medium-pressure pump: electromagnetic diaphragm pump, the maximum flow rate of 2L / h; high-pressure pump: precision piston pump, the maximum flow rate of 2.4L / h
Sampling channel	3*400V/50Hz(±10%)/20A
Sampling pump	7000VA
Other parameters	1200mm*600mm*1850mm
Power supply	600mm*700mm*1300mm
Power	210kg
Test area size	300kg
Oil bath size	Heat Flow, Power Compensation (Option), Reflow (Option)
Oil bath weight	Temperature Control
Total machine weight	(-25 to 200)°C

Accessoriess

Optional reactor types: Glass atmospheric pressure reactor, glass medium pressure reactor, metal high pressure reactor

Functional components: High-power heating/cooling unit, automatic feeding control unit (supports mass/volume measurement)

Auxiliary modules: External database module, Chinese experimental software platform

Test Procedures

1. Pre-Experiment Preparation

Select a suitable reactor (glass atmospheric/medium pressure or metal high pressure)

Install the stirrer, temperature sensor, and condenser

Connect the heating/cooling circulation system

Initialize the software and set experimental parameters (temperature, stirring rate, injection strategy)

2. Calibration Procedure

Heat Flow Method: Baseline measurement → Power calibration → Baseline recovery → Recalibration (obtain UA value)

Power Compensation Method: Set jacket temperature → Built-in heater compensates to maintain zero temperature difference → Directly measure compensated power

3. Reaction Testing

Add the base material and start stirring for preheating

Pre-reaction calibration (establish heat loss baseline)

Start the reaction (manual/automatic feeding), monitor temperature, pressure, and heat flow in real time

Post-reaction calibration (calculate total heat release)

Data Recording: Enthalpy change, adiabatic temperature rise, maximum reaction rate time (MTR)

4. Safety Precautions

High-pressure experiments must use a dedicated reactor (such as a Calvet reactor). (Type) Strongly exothermic reactions require safety interlocks and emergency cooling. Wear protective equipment; ensure good ventilation in the experimental area. Regularly check the oxygen bomb's seal (it is recommended to replace the sealing ring every six months).

Other supplier products

	Manikin Flame Engulfment Test Apparatus，ISO 13506 burning manikin	Introduction The Manikin Flame Engulfment Test Apparatus conforms to gbt23467-2009. iso13506 and ASTM F1930 .To empirically evaluate the performan...
	Medical Face Mask Differential Pressure Tester	The Medical Face Mask Differential Pressure Tester, also known as the Mask Breathability Tester, is designed to evaluate the breathability of medic...
	Carpet Static Load Tester	Instrument Description When furniture is moved, imprints are often left at the position of its feet. These imprints will disappear only when the c...
	Minimum Ignition Energy (MIE) – Dust Cloud Tester	Dust Cloud Minimum Ignition Energy Tester disperses a certain mass of dust specimen to be tested into the Hartmann tube device through a certain pr...

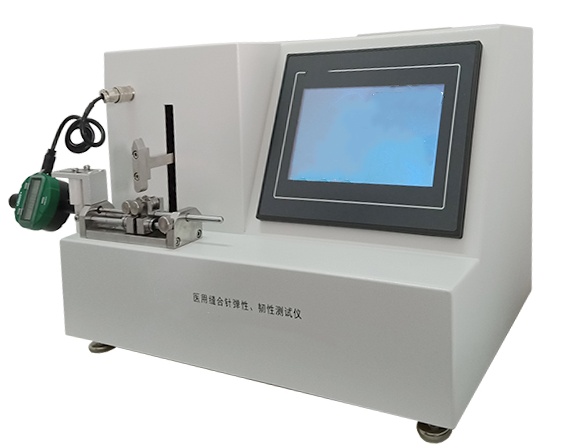

	Suture Needle Sharpness Intensity Tester	The Sharpness and Strength Tester for Suture Needles is a device specifically designed to detect the sharpness and strength of medical suture needl...
