Fabric Vertical Flame Spread Test Machine with ISO 6941
Products:
This machine is suitable for one-component or multi-component (coating, quilt, layered, laminated products, and similar combinations) of clothing, drapes, valance and large tents, including Arbor andcovertextile vertical flame spread properties determination. For evaluation under controlled conditions in the laboratory of material or combination of materials properties when exposed to flame.
Standards:
ISO 6941:2003
Main Features:
1. Electric wire ignition.
2. Burner automatic timing and positioning.
3. The ignition timing from 0 to 99.99 seconds set arbitrarily. Continued burning time and smoldering time, flame spread times are automaticallyrecorded,digital display.
Technical Specifications：
1. The ignition timing: 0 to 99.99 seconds set arbitrarily.
2. Continued burning time and smoldering time and flame spread timer: 0 ~ 99.99 seconds, accuracy: ± 0.01 seconds.
3. The flame height: 10~60mm adjustable.
4. The flame height measuring device: scale high 40mm.
5. Sample holder: high 560mm rectangular frame.
6. The use of gas: propane or butane gas industry.
7. Sample size: 560mm × 170mm.
在线联系供应商
Other supplier products
 |
Luer conical joint multi-function tester | The Luer Conical Joint Multi-Function Tester is a precision instrument designed to evaluate multiple performance characteristics of Luer-type conne... |
 |
Medical glove water-impermeability tester | The medical glove water-impermeability tester is used to determine the water-impermeability performance of medical rubber examination gloves, inclu... |
 |
Dry and Wet Retroreflectometer | The Dry and Wet Retroreflectometer, also known as the Dry and Wet Sand Abrasive Wear Testing Machine, is designed to evaluate the wear resistance o... |
 |

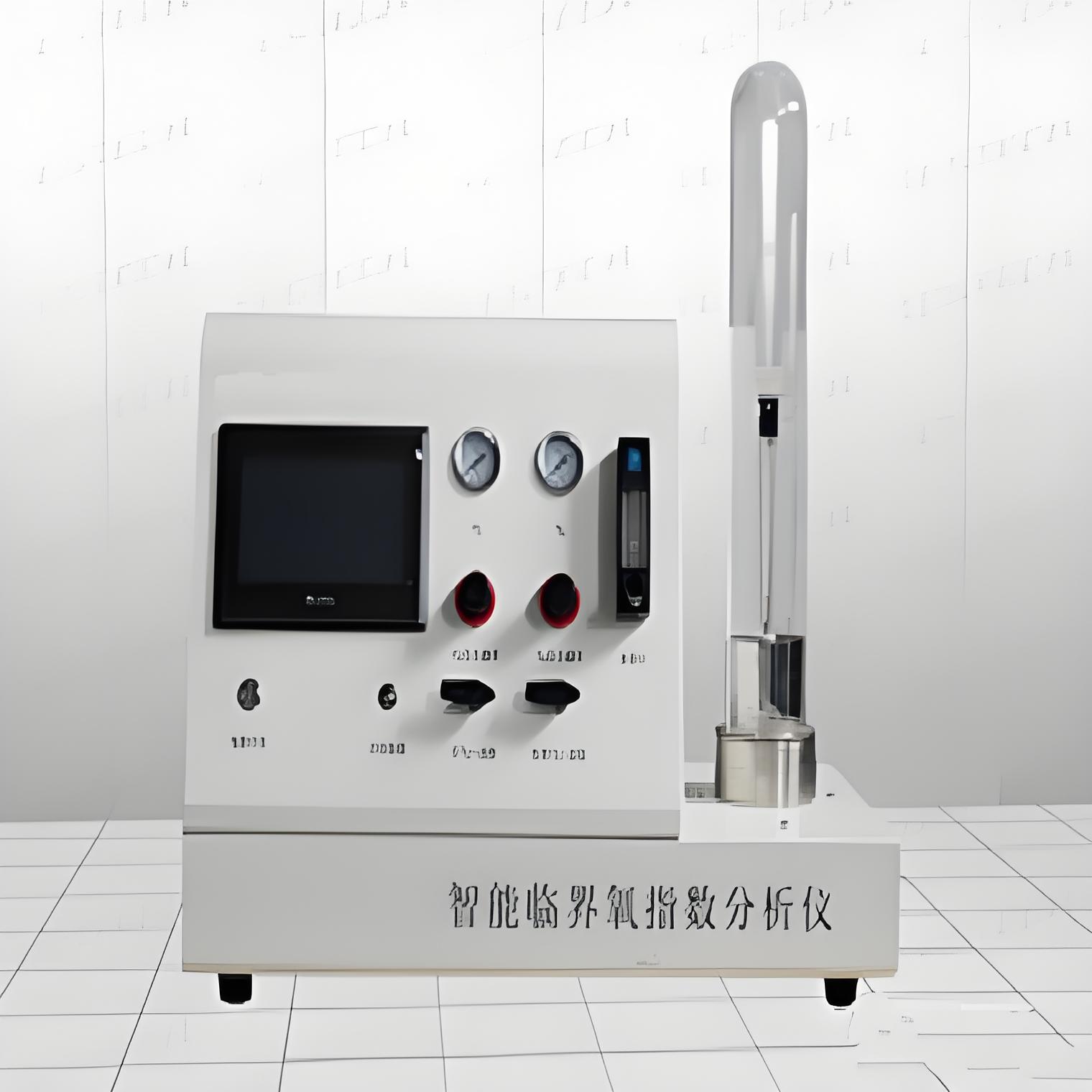

Limited Oxyen Index Tester，Automatic oxygen index test machine | Introduction STD Limited Oxyen Index Tester for the determination under the test conditions specified in oxygen and nitrogen gas mixture just to m... |
 |
