Wool Shrinkage Test device
Product Introduction:
1. YM116 type wool fold shrinkage tester is a precision instrument to determine the length of the towel under the standard tension.
2. the instrument adopts the principle of constant load for tensile test of the sample. The instrument adopts constant velocity elongation (CRE) detection mechanism, microcomputer control, large screen LCD display, automatic data processing, and printable output, convenient setup program, accurate and quick test.
Standard:
FZ/T70008-2012 Test method for knitting density coefficient of woolen knitted fabrics.
Product Advantages:
Precision instrument for accurate determination of towel (fabric) length under standard tension.
Adopts the constant load principle for tensile testing.
Utilizes a Constant Rate of Elongation (CRE) detection mechanism for consistent testing.
Microcomputer control ensures high automation and precision.
Features a large screen LCD display for clear parameter display and results.
Offers automatic data processing, simplifying analysis.
Includes a built-in printer for convenient hardcopy output of test data.
Allows for convenient program setup, making tests accurate and quick.
Meets the FZ/T70008-2012 standard for woolen knitted fabrics.
Product Features:
Constant Load Tensile Test Principle: Applies a consistent load during the elongation process.
Constant Rate of Elongation (CRE) Detection Mechanism: Ensures the sample is stretched at a uniform speed.
Microcomputer Control System: For automated operation, data acquisition, and processing.
Large Screen LCD Display: Provides a clear interface for real-time monitoring and result viewing.
Automatic Data Processing: Automatically calculates and processes test results.
Printable Output: Integrated micro printer for instant test reports.
Adjustable Clamp Distance: Accommodates various sample lengths.
Adjustable Drawing and Return Speeds: Allows for flexible test parameter settings.
Force Value Calibration: Supports calibration with optional weights for accuracy.
Parameters:
Maximum force range: 200.00cN
Force measurement error: ±0.5%
Left and right clamp distance (separation) : 15mm —— 500mm optional
Drawing speed (speed) : 1mm/min —— 500mm/min
Return speed (return) : 1mm/min —— 500mm/min
Force value Calibration weight optional range (weight) : 50 —— 200cN
Volume: 265mm×1380mm×325mm
Power supply: AC 220V±10% 50Hz
在线联系供应商
Other supplier products
 |

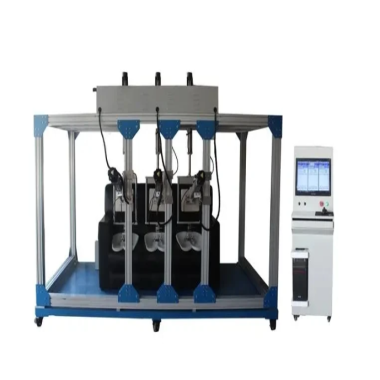

Office Chair Caster Durability Test device | Implementation standards GB/T4085 EN425 Product features 1. The instrument adopts PLC touch screen control, simple and intuitive operation; 2. ... |
 |
