Falling Sand Abrasion Test machine
Applicable Standard
JG/T 133-2000
ASTM D968-83
ASTMD333
ASTMD1395
ASTMD2205
Main Purposes
It is mainly used to test the abrasion - resistance of the lenses of helmet goggles and evaluate their ability to resist particle - induced damage.
Instructions For Use
1. according to the standard requirements for the preparation of test plates and placed in (23 +-2) degrees Celsius, relative humidity (50 +-5) degrees Celsius conditions for 24 hours.
2. Calibrate the apparatus:
Pour a certain amount of sand into the funnel, check the sand stream falling from the lower end of the conduit, and calibrate the device with the bottom adjusting screw until the inner part of the sand beam falls exactly on the center of the sand stream when viewed from two positions of 90 degrees Celsius each other. Use the high and low adjusting nut to adjust the distance from the tube tube to the painted surface according to the ASTM standard, when measured in the vertical direction, the near point of 1 inch (25mm), the user needs to be adjusted according to the thickness of their own samples, factory machine pre-adjustment of 25mm. to the pouring of a certain volume amount of sand (to 2000 +-10ml is appropriate), and measure the outflow time, the outflow rate should be 21S- 23.5S within 2L. This speed comes from the ASTM standard, and with the international standard sand for the test, we measured the speed of 1 minute 7L or more.
3. do the test should pay attention to, after the end of the sand fall, the machine should be slightly tilted to make the lower funnel in the small square of excess sand poured out, in the re-insertion of the sand fall switch in order to avoid the sand fall switch can not be put in.
Main Technical Parameters
Overall Dimension: 230mm×200mm×1500mm (L×W×H)
Catheter Length: 36 inches (914mm)
Catheter I.D.: 0.75 inches (19mm)
Hopper Volume: 3L
Machine Weight: 25KG
在线联系供应商
Other supplier products
 |
Athletic Footwear Shock Attenuating meter | Standard SATRA TM142 ASTM F1614 ASTM F1976 Product Advantages 1. Uncompromising Precision Hemispherical Impactor: 45mm diameter (37.5mm radiu... |
 |

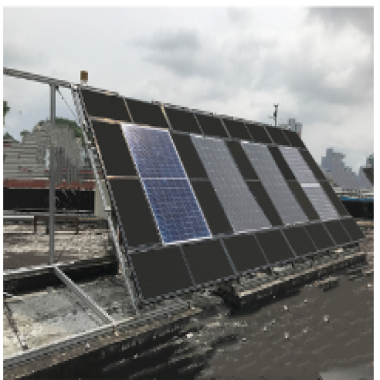

Photovoltaic module outdoor exposure test system | The Photovoltaic Module Outdoor Exposure Test System is designed to simulate real-world environmental conditions for accelerated aging and performa... |
 |
