M160T Industrial Class Modbus TCP Ethernet Remote Engine Monitoring System
Model:M160T
Name:Industrial Class Modbus TCP Ethernet Remote Engine Monitoring System
(8DI+8DO+8AI+RJ45+RS485)
The Industrial Class Modbus TCP Ethernet Remote Engine Monitoring System is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.
The Industrial Class Modbus TCP Ethernet Remote Engine Monitoring System a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.
The M160T Ethernet Remote I/O module provides 8 optical-isolated digital inputs, supports max. 10Mhz high speed pulse counter, 8 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal, 8 digital outputs, supports 10Hz~300Khz high speed pulse output or relay outputs. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable.
Main Features:
uEmbedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;
uPower supply 12~36VDC with over voltage and phase-reversal protection;
uEmbedded Web server for configuration and management;
u Support Web realtime monitoring and Web debugging;
u DO1 support PWM output;
uIntegrated 10/100M adaptive Ethernet module, supports Modbus TCP protocol;
u8 optical isolated digital input, supports max. 10Mhz high speed pulse counter;
u8 digital output or relay output, supports 10Hz~300KHz high speed pulse output;
u8 isolated analog input, 12-bit resolution, supports 0~20mA,4~20mA,0-5VDC, 0-10VDC;
uHigh sampling frequency and special filtering strategy to ensure reliability;
u1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;
uSupports register mapping function and extend I/O inquiry strategy;
uProvides 1 channel 12~36VDC power source output for external device, saving wiring cost;
uLED instructions work status, with reset button to reset, easy on-site installation and commissioning;
uUsing metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
uSmall size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
More Informations:
Ali Trade Manager:cn220076270
/> />
Send product request
Other supplier products
 |
GSM 3G Wireless Home Alarm System | Model: K7 K9 Name: GSM 3G Touch Keypad Alarm System Keyword: GSM Touch Keypad Alarm, GSM LCD Alarm, GSM Alarm, GSM SMS Alarm, wireless home al... |
 |
Senior Care Phone GSM 3G Senior Telecare Box | Model: T2 Name: Senior Care Phone GSM 3G Senior Telecare Box Keyword: Senior SOS Phone, Senior Helper, GSM Senior Telecare, Senior Phone, Seni... |
 |
New advaced GPRS 3G Garege Gate Opener Remote Conrtrol intercomes RTU5025 | GPS 3G Smart Automatic GSM Remote Control Doors gate opener Doors Model: RTU5025C/ RTU5025W Authorized 999users open gate at the specified tim... |
 |
GSM GPRS 3G 4G Modbus TCP RTU Remote Controller | Model:S240 Name: GSM GPRS3G 4G Modbus TCP RTU Remote Controller (10AIN/6DIN/4Dout/1RS485) Keyword: Data Logger,Telemetry Automation Controlle... |
 |
W12 Wireless IP Camera with SMS Alarm | Model:W12 Name:Wifi+3G/GSM Camera Alarm Keywords: 3G Wifi Alarm ,Gsm Wifi alarm system, Gsm wireless Indoor camera, 3G wifi camera , 3G Gsm home se... |
Same products
 |
BLIIOT BL118 Node-RED Edge Computing Gateway | Seller: Shenzhen Beilai Technology Co., Ltd. | BL118Node-REDGatewayisanindustrial-gradeedgecomputingdevicepoweredbyadual-coreA7processor.Pre-ins... |
 |
Axial/Barrel Damper RD-T012B | Seller: Dongguan Teao Electronic Technology Co., Ltd | Axial/Barrel Damper RD-T012B Characteristics Less honorary seat: PC Upper cover: PC Rotor: PO... |
 |

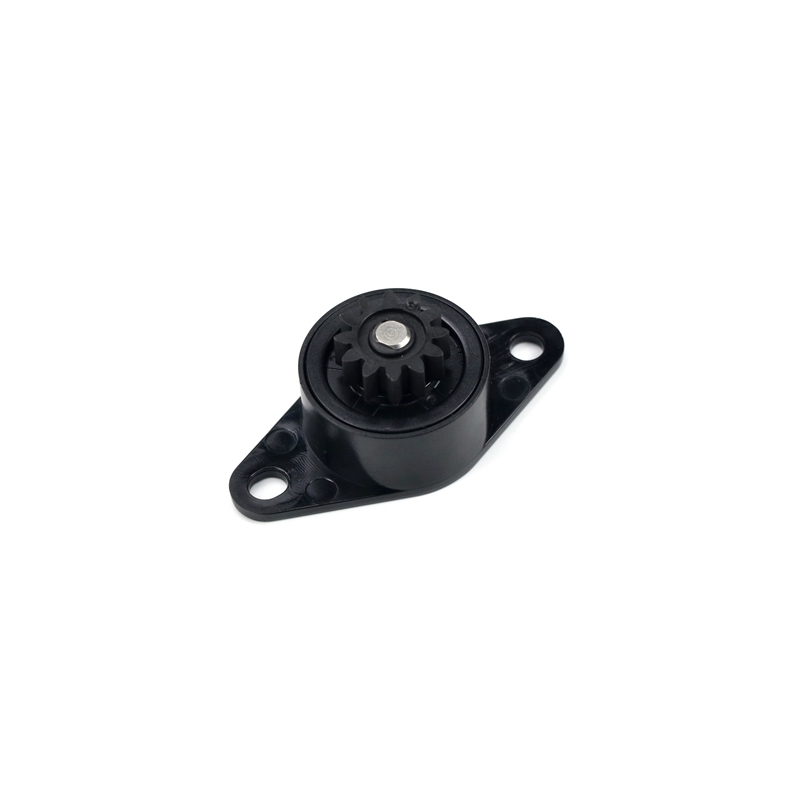

Gear/Rotary Damper RD-T068/V068 | Seller: Dongguan Teao Electronic Technology Co., Ltd | Gear/Rotary Damper RD-T068/V068 Characteristics SOC Free, Screw, two-way, One-way,No angle limi... |
 |
