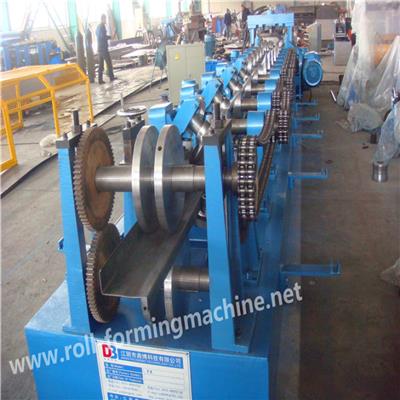

Steel Profile Roll Forming Machine
Working flow: Decoiler--feeding--punching--roll forming--cut to length--output table Equipment list for steel profile roll forming machine: NO.ProductQuant.1Manual decoiler12Main roll forming system(include feeding,Website:, transmission, roll forming , hydraulic cutting)13.Out put tables2Main specification of steel profile roll forming machine: A. 3ton manual decoiler
1) Capacity: 3ton
2) feeding width: MAX 500mm
3) Valid expanding range for coil inner diameter: 480-520mm B. Main roll forming system of steel profile roll forming machine
1) Drive: Chain
2) Main shaft dia: ￠56mm material: 45﹟forge steel
3) Roller material: Gcr15 bearing steel and quench treatment hardness 55-58, chrome coated 0.05mm
4) Roll station: 13 groups
5) Raw material: 0.5-0.6mm
6) Valid width after fromed: according to drawing
7) Working speed: 10m--15m/min(Exclude cutting time)
8) Length Tolerance: ±2mm
9) Weight of machine: about 3ton
10) Size of machine: About 5500×800×1500mm L x W x H
11) Color of machine: depend on customer
12) Coder: Omron
13) Control: PLC Panasonic, made in Japan. 380V 50HZ
14) Computer operating panel: touching screen
15) Cutting: Hydraulic cutting
16) Auto cutting when reach the set length.
17) Hydraulic power: 3KW
18) Blade material: Cr12,quenched 55°-58°
19) Working pressure:16mpa
20) Cutting tolerance: +/- 1.5mmCharacter of main structure:
a) The structure of the steel profile roll forming machine is simple and the appearance of the steel profile roll forming machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which makes the machine flexible and stronger.
b) All the components of the steel profile roll forming machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) We produced steel profile roll forming machine steel profile roll forming machine is very easy to install the equipment and suitable for producing in the factory.
Low noise with high efficiency.Photos for steel profile roll forming machine Testimonial Exhibition After sales service:
