Multi-Functional Scratch Tester

Introduction

Multi-Functional Scratch Testeris suitable for a variety of automotive interior materials, such as plastic, rubber, leather, fabric, coating materials, non-coated materials and other composite materials, paints, inks, soft metals and other scratch resistance testing, Decorative products, plastics, rubber, leather and other fields of surface properties of a comprehensive test equipment.

Standards

PV 3952 Plastic interior parts scratch resistance test

Ford BN 108-03.13 Scratch resistance test

BMW 0180. PA-P 028 Scratch resistance test (Cross-cut method)

BMW GS 97034-9. PA 0015 Scratch resistance test

DAF KEUR 00824-401 Scratch resistance test (Cross-cut method)

DAF KEUR 00824-402 Scratch resistance test

GME 60401 Scratch resistance test (Cross-cut method)

GM 14829 Scratch resistance test (Cross-cut method)

Jaguar-Landrover TPJLR.52.004 Scratch resistance test

GM N 3943 Scratch resistance and scratches for plastics - Five fingers test

LP 463DD-18-01 Scratch resistance and scratches for plastics - Five fingers test

GMW 14130.14688 Scratch resistance test

8350Z-SDA-9000 Scratch resistance test

NES M M0159 Polypropylene interior parts scratch resistance test

Applications

Multi-Functional Scratch Tester is suitable for testing automotive interior materials, plastic, rubber, leather, coated fabric, coating materials, composite materials, paint, ink, soft metal and other industries, and widely used in product quality control, new product development performance verification, detection mechanism test and other fields.

Features

1. The instrument consists of the motor drive mechanism, scraping components, sample clamping fixtures and other components.

2. Scratch components include scraper brackets, scraping fingers, Scratches positioning sleeve, presses device (weights and weight support bars).

3. The instrument can be free to install, replace, disassemble different specifications of the scraping fingers. it also can impliments uniform speed unidirectional straight line scratch movement under different load .

4. The instrument that adopts embedded systems, man-machine interface operation automatically controls the test process . The use of precision servo motor, ball screw drive has a decisive role in controlling the scratch speed accuracy under the relevant standards .

5. The instrument uses tungsten carbide material to make scraping finger for increasing the instrument life.

6.The instrument which uses aluminum and stainless steel is appearance concisely、 lightweight and corrosion-resistant.

Technical Parameters

Items Parameters
Test partition Finger / plastic finger scratch test
Stroke range 10-200mm
Speed range 10-200mm/s
Speed buffer 10±1mm
Scratch pressure 2N,3N,5N,7N,8N,10N,12N,15N,20N (Optional)
100 cross-cut scratches moving distance 0.5mm-2mm(Below 2mm should be equipped with a special scratch)
Scratch head material Stainless steel; tungsten carbide (optional)
Scratch head diameter 0.5mm、0.75mm、1mm(Erichsen318)、3mm、5mm、7mm
Plastic finger (optional)

Poly (PMMA); diameter 16 mm, thickness 1 mm, edge radius 0.5 mm, hardness shore D85.


Send product request

To: Standard International Group (HK) Limited
Your E-mail:
Message text:


Send to other suppliers

Other supplier products

Rating Observation Board-QINSUN
Rating Observation Board-QINSUN Product Overview TheRating Observation Boardis an intelligent monitoring system designed for real-time evaluation and visualization of product qua...
STD 200 high pressure tank cleaning heads, Self-propelled Tank Cleaner
STD 200 high pressure tank cleaning heads, Self-propelled Tank Cleaner The "3D Nozzle" is a self-rotating nozzle unit used for cleaning polymerization tanks, reactors, spray dryers, and various other tanks. The cleani...
Martindale Abrasion Tester for Fabric & Textile Durability-QINSUN
Martindale Abrasion Tester for Fabric & Textile Durability-QINSUN Standard ASTM D4966(Standard Test Method for Abrasion Resistance of Textile Fabrics) ISO 12947-1/2/3/4(Textiles - Determination of the Abrasion R...
Car seat center of gravity measuring tester
Car seat center of gravity measuring tester Main parameters: Measuring range:refers to the maximum and minimum range of the center of gravity of the seat that the tester can measure. This ...
Automatic 55 Gallon Drum washer, 200L Barrel Cleaning Solution
Automatic 55 Gallon Drum washer, 200L Barrel Cleaning Solution Features: This semi-automatic200 liters barrel cleaning systemutilizes our rotary impingement technology and is designed to blast stubborn residue...
All supplier products

Same products

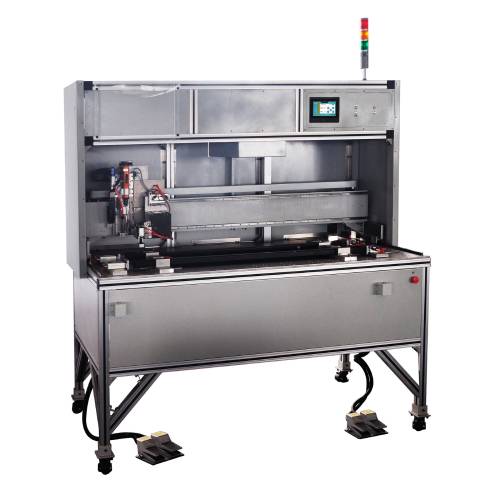

Automotive Sunshade End Cap Assembly Line,Automotive interior sunshade assembly line equipment
Automotive Sunshade End Cap Assembly Line,Automotive interior sunshade assembly line equipment Seller: Standard International Group (HK) Limited The Automotive Sunshade End Cap Assembly Line is an automated production system designed for asse...
Automotive Sunshade Assembly Line,Sunshade component assembly production line
Automotive Sunshade Assembly Line,Sunshade component assembly production line Seller: Standard International Group (HK) Limited The Automotive Sunshade Assembly Line is an integrated automated production system designed for t...

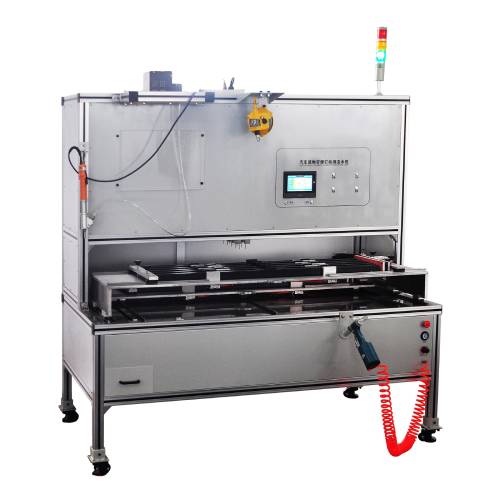

Automotive Cargo Cover Screw Inspection LineISO 9001,Vehicle cargo cover assembly inspection equipment
