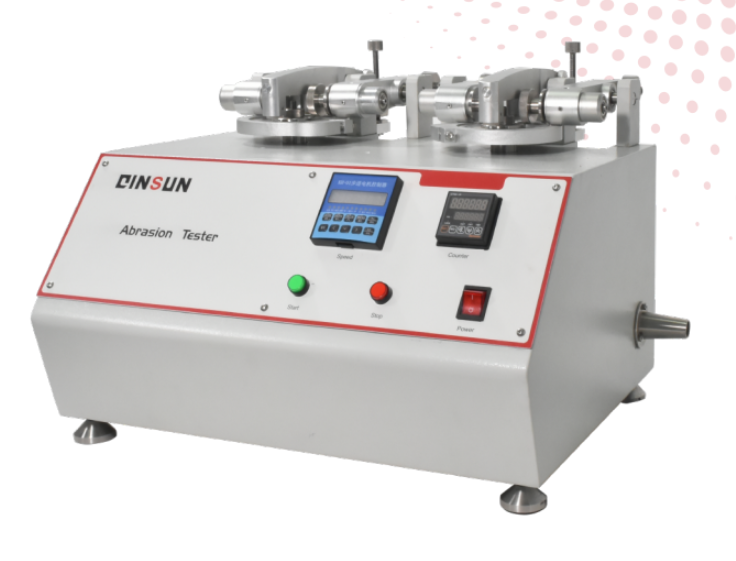

Taber Abrasion Tester (Double-Head) - lab instrument
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
Email: serving@qinsun-lab。com
We are a professional testing instrument manufacturer offering complete laboratory testing solutions. If you need more information or wish to explore our full range of test equipment, please contact us for details and technical support.
Standards
DIN Standards: DIN 53754 (plastics), DIN 53109 (paper/board), DIN 52347 (glass/plastics)
ASTM Standards: ASTM D1044 (transparent plastics), ASTM D3884 (textiles), ASTM D4060 (coatings)
ISO Standard: ISO 5470 (rubber/plastics-coated fabrics)
TAPPI Standard: TAPPI T476 (paper/paperboard abrasion)
Product Advantages
Dual-Testing Efficiency: Simultaneous testing on two independent stations doubles productivity, ideal for high-throughput laboratories.
Wide Applicability: Suitable for luggage, carpets, automotive interiors, textiles, coatings, metals, electronics, and more.
Precision Engineering: Adjustable pressure settings (125–1250g per wheel) and digital speed control (30–75 RPM) ensure standardized testing.
User-Centric Design: Intuitive LCD interface with preset cycle counts (1–999.999 revolutions) and vacuum debris removal for accurate results.
Versatile Compliance: Meets ASTM’s dual-head method requirements and global industry standards.
Quiet Operation: Branded silent motor minimizes noise during extended testing sessions.
Product Features
Dual Testing Stations: Independent control of two abrasion heads for parallel testing or comparative analysis.
Digital Control Panel: Real-time speed display, adjustable RPM, and programmable cycle counters with automatic stop.
Adjustable Vacuum System: Height-customizable suction port adapts to material thickness, ensuring debris-free testing.
Modular Abrasion Wheels: Interchangeable wheels (e.g., CS-10. H-18) and sandpaper discs for material-specific wear simulation.
Precision Balancing: Rear-arm counterweights (250g, 500g, 750g, 1000g) enable ASTM-standard 125g pressure and beyond.
Sample Preparation Kit: Includes sample stickers, diamond polishers, and vacuum attachments for seamless workflow.
Technical Parameters
| Parameter | Specification |
|---|---|
| Rotational Speed | 30–75 RPM (digital adjustment) |
| Sample Diameter | 100 mm (per station) |
| Test Platform Diameter | 113 mm (per station) |
| Cycle Range | 1–999.999 revolutions (presettable) |
| Empty Arm Pressure | 250g (standard) |
| Weight Options | 250g, 500g, 750g, 1000g (included) |
| Wheel Pressure Range | 125g, 250g, 500g, 750g, 1000g, 1250g (per station) |
| Vacuum Arm Adjustment | Height-adjustable (per station) |
| Power Supply | 220V, 50Hz |
| Dimensions | 220 (W) × 380 (D) × 300 (H) mm |
| Net Weight | 20 kg |
