Face Mask Tensile Tester
Application
The Face Mask Tensile Tester is suitable for mechanical property evaluation across the following industries and products:
(1) Medical and Healthcare Industry: surgical masks, medical face masks, N95/FFP masks, disposable masks — tensile strength and elongation testing
(2) Textile Industry: woven fabrics, knitted fabrics, nonwoven fabrics, coated fabrics — tensile, elongation, and mechanical performance testing
(3) Automotive Industry: seat covers, interior textiles, leather trim, composite materials — tensile strength and elongation testing
(4) Leather and Accessories Industry: leather, zippers, straps, belts — tensile, tear, and adhesion strength testing
(5) Research and Development: development of new textile and mask materials, mechanical property evaluation, material comparison
(6) Quality Control: production batch verification, inspection of material strength and deformation properties
(7) Third-Party Testing Laboratories: certification testing, laboratory verification of textile and mask mechanical performance
The instrument is widely used for product development, production quality control, R&D, and laboratory testing.
Standards
The instrument complies with and can be applied to the following standards (including but not limited to):
(1) GB/T 32610-2016 – Technical Specification for Daily Protective Masks
(2) GB 19083-2010 – Technical Requirements for Medical Protective Masks
(3) YY 0469-2011 – Technical Requirements for Medical Surgical Masks
(4) GB 2626-2006 – Respiratory Protective Equipment: Filtered Particulate Respirator
(5) GB 2890-2009 – Test Methods for the Mechanical Properties of Textile Materials
(6) GB/T 16556-2007 – Testing Methods for Tensile and Elongation Properties of Fibers
(7) GA 124-2013 – Tensile Testing Standard for Protective Materials
Features
(1) Easy to operate, suitable for all users
(2) High measurement accuracy, certified by third-party testing organizations
(3) High-speed, low-vibration, low-noise motor drive
(4) High rigidity design, sturdy and durable
(5) Multi-language interface for international applications
(6) Automatic return to start position after test completion
(7) Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, and tensile strength
(8) Supports tensile, bending, compression, folding, adhesion, tearing, peeling, and elongation tests
(9) Equipped with mechanical travel switch, emergency stop switch, overcurrent/overvoltage/undercurrent/undervoltage/leakage overload protection
(10) Software overload limit protection and breakpoint shutdown protection
Technical Parameters
| Item | Specification |
|---|---|
| Maximum Test Force | 100 N (optional 5000 N) |
| Operation Mode | Microcomputer, full Chinese menu |
| Measuring Range | 0 – 100 N |
| Accuracy Level | Class 1 / Class 0.5 |
| Test Force Accuracy | ±1% |
| Minimum Test Force Resolution | 0.001 N |
| Displacement Resolution | 0.01 mm |
| Deformation Accuracy | ±1% |
| Speed Regulation Range | 0.001 – 500 mm/min (infinitely variable) |
| Test Speed | 50, 100, 150, 200, 250, 300, 500 mm/min |
| Tensile Stroke | 700 mm |
| Overall Dimensions (L × B × H) | 540 mm × 280 mm × 1450 mm |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 80 kg |
Send product request
Other supplier products
 |
laboratory color matching box | Textile color matching light boxApplications: The consistency of the light sources in all Colour Control Cabinets gives excellent viewing conditio... |
 |
Filter Media Tester | The Filter Media Dynamic Filtration Performance Tester is primarily used to assess the filtration performance of filter media. This equipment is us... |
 |

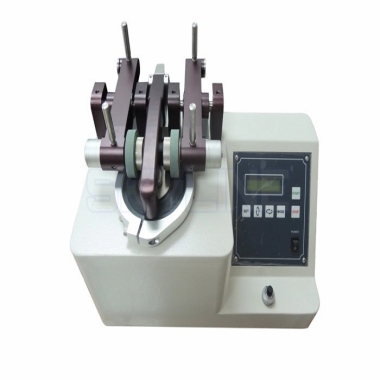

Taber Abrasion Tester (Double-Head) | Standards DIN Standards: DIN 53754 (plastics), DIN 53109 (paper/board), DIN 52347 (glass/plastics) ASTM Standards: ASTM D1044 (transparent plasti... |
 |

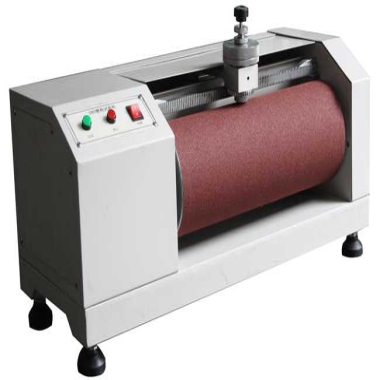

Schopper Abrasion Tester manufacturer | Standards DIN 53863. Part 2: Abrasion test methods for textile fabrics (rotary abrasion test). GME Standard 60345 & GMW Standard 3283: Indust... |
 |
