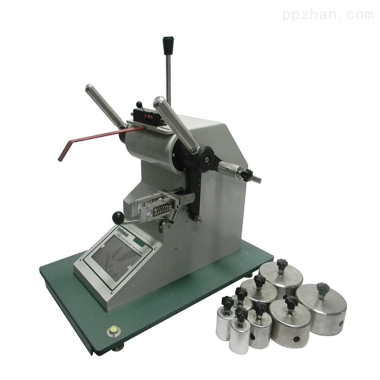

Automatic Cross-hatch Tester

The Automatic Cross-hatch Tester is a general-purpose instrument designed to perform cross-cut adhesion tests and scratch resistance tests on paint coatings and plastic surfaces.

The system supports parallel cutting and cross cutting using single-row or multi-row cutting tools, making it suitable for test panels of varying thicknesses and dimensions.

Adhesion testing is performed in accordance with internationally recognized cross-hatch methods, while scratch resistance testing complies with GME 60 280 requirements. With a wide range of adjustable test parameters and interchangeable cutting tools, the instrument enables accurate, repeatable, and efficient coating performance evaluation in laboratory and production environments.

Application

(1) Automotive coatings (body paint, interior trim coatings, plastic component coatings)

(2) Plastic parts such as dashboards, panels, housings, and decorative trims

(3) Industrial coatings applied to metal and polymer substrates

(4) Consumer electronics coatings (mobile shells, laptop housings, appliance panels)

(5) Appliance coatings (washing machines, refrigerators, air-conditioner panels)

(6) Paint and coating R&D laboratories

(7) Production line quality control and incoming material inspection

Standards

(1) GM 14688 – Scratch Resistance of Automotive Interior Materials

  • Method A

  • Method B

(2) GME 60 280 – Scratch Resistance Test Method

(3) PV 3952 – Volkswagen Scratch Resistance Standard

(4) GB 9286-2021 – Paints and Varnishes — Cross-cut Test

(5) GB/T 9286-1997 / ISO 2409 – Paints and Varnishes — Cross-cut Adhesion Test

(6) GB/T 9279-2007 / ISO 1518:1992 – Paints and Varnishes — Scratch Resistance

(7) Q/SQR S1-16-2016 – Chery Internal Standard

(8) Q/SQR T1-64 – Chery Internal Standard

(9) QCC SY051-2012 – Enterprise Standard for Coating Scratch Testing

Features

(1) Supports both cross-hatch adhesion testing and scratch resistance testing

(2) Compatible with single-row and multi-row cutting knives

(3) Wide adjustable load range to meet different standard requirements

(4) Suitable for both small and large test specimens

(5) PLC-controlled system ensures stable and repeatable testing

(6) Touchscreen operation with Simplified Chinese and English interfaces

(7) Compact structure suitable for laboratory and production use

Technical Parameters

Parameter	Specification
Control System	PLC
Operation Interface	7-inch color touchscreen
Interface Language	Simplified Chinese / English
Voice Prompt	≥ 2 languages
Small Test Piece Size	80 × 50 mm
Large Test Piece Size	Width 105 mm, length unrestricted
Sample Thickness	0.5–20 mm
Marking Path Length	0–45 mm
Standard Load Range	2–50 N
Dimensions (W × H × D)	380 × 480 × 760 mm
Power Supply	115 / 230 VAC, 50 / 60 Hz (specified when ordering)
