Automatic Long Filament Curl Shrinkage Tester
Application
(1) Synthetic Fibers: Polyester, nylon, polypropylene, acrylic, and other long synthetic filaments.
(2) Filament Yarns: Single filament yarns, multifilament yarns, twisted yarns, and textured yarns.
(3) Textile Products: Knitted fabrics, woven fabrics, industrial textiles, and composite yarn-based materials.
(4) Home Textiles & Apparel: Curtains, upholstery, carpets, sportswear, and hosiery.
(5) Industrial & Technical Textiles: Ropes, fishing lines, seatbelts, filtration materials, geotextiles, and reinforcement fibers.
(6) R&D & Quality Control: Testing heat or moisture shrinkage behavior, curl stability, and modulus to optimize processing and performance.
(7) Educational & Training Use: Demonstrating filament shrinkage and curl behavior in textile laboratories and classrooms.
Standards
(1) GB/T 6506: Synthetic fiber boiling water shrinkage test
(2) GB/T 6505: Synthetic fiber dry heat shrinkage test
(3) ASTM D6774-22: Standard test method for synthetic filament shrinkage
Features
(1) Automatic load adjustment and application ensures precise force during testing.
(2) Auto-loading, timing, and zero calibration for fully automated measurement.
(3) Measures multiple parameters simultaneously: curl shrinkage rate, curl modulus, curl stability, and thermal shrinkage rate.
(4) Supports batch testing up to 30 specimens for high-efficiency evaluation.
(5) Integrated computer system with screen display and printer output for results reporting.
(6) Suitable for various filament yarns and fabrics, allowing broad testing applications.
Parameters
| Parameter | Specification |
|---|---|
| Load Capacity | 2.5–5000 cN (adjustable, auto-application), Accuracy: ±0.2 cN |
| Sample Length | 500 × 2 mm |
| Measurement Range | 0–150 mm |
| Test Parameters | Curl Shrinkage Rate (CC)%, Curl Modulus (CM)%, Curl Stability (CS)%, Thermal Shrinkage Rate (S)%, Mean Value, Standard Deviation, CV Value |
| Data Interface | Keyboard/mouse input, screen display, printer output |
| Batch Capacity | 30 specimens per batch |
| Power Requirement | Host: 220V, 50Hz, 0.5 kW; Compressed Air: 0.2–0.3 MPa |
| Dimensions | 650 × 550 × 1770 mm (L×W×H) |
| Weight | 75–80 kg (depending on configuration) |
Send product request
Other supplier products
 |
Thermal Radiation Performance Tester(RPP) | The RPP test is mainly used to determine the radiant thermal protection performance of thermal protective clothing. Since thermal radiation is on... |
 |
Cone calorimetric test equipment - Test Equipment | Heat release is the core measurement parameter for assessing material and product fire characteristics. The cone calorimeter meets all existing sta... |
 |
Schopper Abrasion Tester | Applications Textile Industry: Evaluating the abrasion resistance of fabrics, carpets, curtains, and other materials to optimize fabric structure ... |
 |
Glow wire tester - lab instrument | F242 Glow-wire tester, By simulating the thermal stress caused by heat source or ignition source such as hot component or overload resistor in a sh... |
 |

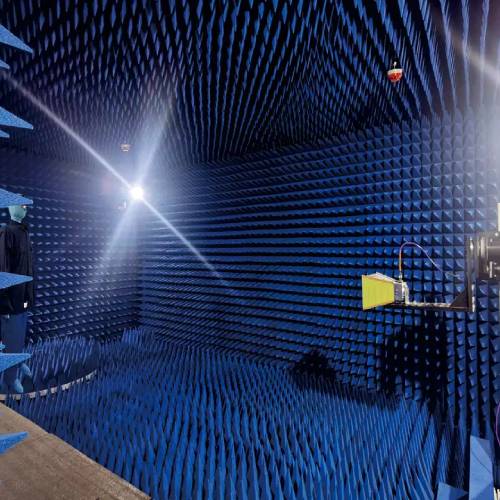

Garment Electromagnetic Radiation Shielding Performance Testing System | The Garment Electromagnetic Radiation Shielding Performance Testing System is a comprehensive testing solution designed to evaluate the shielding e... |
