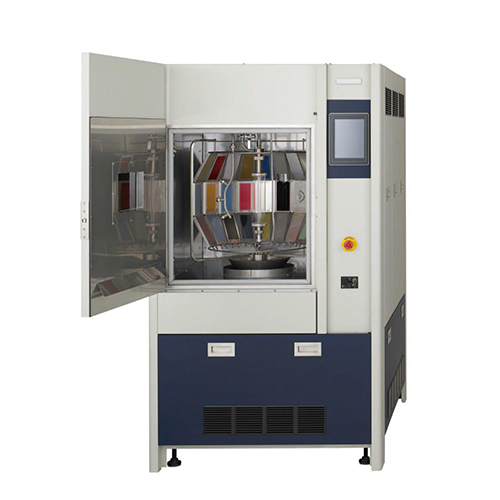

SUGA GX25 Xenon Lamp Weathering Tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Applications
Traditional Automotive: Brakes, steering wheels, manual transmissions, interior components, airbags, child safety seats
LCD: Materials (backlighting, color filters, glass substrates, liquid crystal materials, polarizers, driver assemblies), application products (TVs, monitors, computers, tablets, smarts, wearables, etc.)
Electrical & Electronics: Home appliances, office equipment
Pharmaceuticals: Medicinal products
Food: Beverage production
Standards
ISO 4892-2: Plastics—Methods of exposure to laboratory light sources (Xenon-arc lamps).
ISO 105-B02: Textiles—Tests for color fastness to artificial light (Xenon arc fading lamp test).
ASTM G155: Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Nonmetallic Materials.
AATCC TM16.3: Colorfastness to Light: Xenon-Arc.
JIS L0843: Test method for color fastness to xenon arc lamp light.
JIS K7350-2: Plastics—Methods of exposure to laboratory light sources—Part 2: Xenon-arc lamps.
Features
Stable Water-Cooled Source: The 2.5kW water-cooled system manages the thermal load of the xenon lamp more efficiently than air-cooled alternatives, providing superior spectral stability and longer lamp life.
High-Temperature Capability: You can achieve a Black Panel Temperature (BPT) of up to $110^{circ}text{C}$, allowing for the simulation of extreme heat conditions found in automotive interiors or tropical outdoor environments.
Large Throughput for Compact Size: Despite its manageable footprint, the GX25 can accommodate up to 108 specimens simultaneously, making it ideal for high-volume batch testing.
Precise Dark Cycle Simulation: The system allows you to transition to a high-humidity dark mode ($95%text{ RH}$), effectively simulating nighttime dew and moisture absorption.
Customizable Spectrum: By utilizing specific filter combinations like the #295 outer filter, you can tailor the UV cutoff to match specific outdoor or indoor sunlight conditions.
Parameters
|
Light source |
Xenon-arc lamp WX2.5(2.5kW water-cooled type) Filter:Daylight filter(The other filters such as Windows Glass,Extended UV,etc,are available as option.) |
|
Test condition |
Light-on,Light-off [Option:Light-on and surface spray.Light-off and back spray,Light-off and surface and back spray] |
|
Irradiance |
40 to 60W/㎡(at 300 to 400nm) [Option(Measuring Wave length control):340nm,420nm] |
|
Temperature and humidity range |
Light test:55 to 110±2℃ of Black Panel Temperature (BPT;depending on irradiance); 30 to 70±5%rh(at 63℃ of BPT and 42W/㎡) Dark test:38±2℃ of chamber air temperature,95±5%rh [Option:BST(Black Standard temperature)60 to 115℃(depending on irradiance) |
|
Number of specimens |
Maximum 108pieces(65 x 55 x 1mm) |
|
External dimension of the instrument |
Approx:width 100cm,depth 125cm,height 180cm,weight400kg |
|
Electrical requirements |
3phase 200V approx. 43A 50/60Hz |
|
Related standards |
ISO 4892-2.ISO 16474-2.ISO 105-B02.ASTM G155.AATTC TM16.AATCC TM169 etc.(depending on test cycles) |
Send product request
