Compression Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com

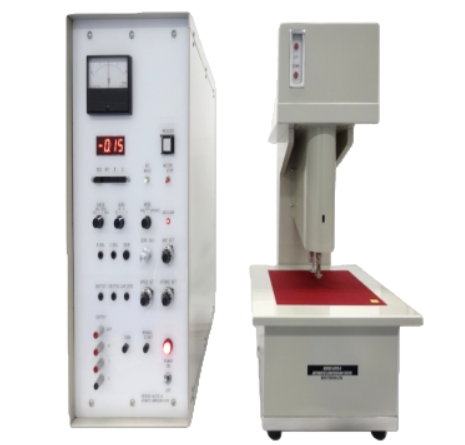

The Compression Tester STD-FB3-A is a professional instrument designed for quantitative evaluation of material behavior under compression. It mechanically simulates the “finger press” action used in tactile material assessment, measuring force and deformation during compression and recovery. This converts subjective hand-feel evaluation into objective, reproducible numerical data. The instrument provides key parameters such as compressive stiffness, compression energy, and recoverability, supporting material R&D, process comparison, quality control, and tactile performance analysis.
Application
The Compression Tester STD-FB3-A is suitable for a wide range of flexible and thin materials, including fiber assemblies, woven, knitted, and nonwoven fabrics, paper and paperboard, medical and hygiene materials such as diapers and nonwovens, functional films and composites, automotive interior soft materials, home textiles and bedding, and new flexible materials in R&D stages.
Standards
This instrument supports testing according to the following national and international standards, including equivalents or enterprise-specific methods:
(1) GB/T 3820 — Textiles: Determination of Thickness
(2) GB/T 24218.2 — Textiles: Nonwoven Fabrics Test Method, Thickness Measurement
(3) GB/T 451.3 — Paper and Paperboard: Determination of Thickness
(4) JIS L 1096 — Textiles: Test Methods (Thickness and Compression Related Tests)
(5) ISO 9073-2 — Textiles: Nonwoven Fabrics, Thickness Measurement
(6) ASTM D1777 — Standard Test Method for Thickness of Textile Materials
(7) ASTM D903 — Peel Adhesion of Pressure-Sensitive Tape
(8) ASTM E8 / ASTM E4 — Tensile Testing of Metallic Materials
(9) CNS 11888 — Equivalent mechanical test standards
(10) JIS K6854 — Adhesive Tape Testing
(11) PSTC-7 — Pressure-Sensitive Tape Peel Adhesion
(12) ASTM D828 — Tensile Properties of Paper and Paperboard
(13) ASTM D882 — Tensile Properties of Thin Plastic Sheeting
(14) ASTM D1938 — Tensile-Propagation of Tear in Thin Plastic Sheeting
(15) ASTM D412 — Rubber Tensile Properties
(16) ISO 8339 — Compression testing of foam materials
(17) ASTM D3330 — Peel Adhesion of Pressure-Sensitive Tapes
(18) ASTM F88 / ASTM F904 — Peel and Adhesion Testing for Flexible Materials
(19) ISO 37 — Rubber tensile test
(20) JIS P8113 — Tensile and compression testing for plastics
(21) QB/T 2358 / QB/T 1130 — Chinese textile standards
(22) ISO 527 — Plastics tensile properties
(23) ISO 178 — Plastics flexural properties
Parameters
| Parameter | Specification |
|---|---|
| Device dimensions / weight | W285 × D405 × H500 mm / 40 kg |
| Electronic amplifier dimensions / weight | W230 × D450 × H500 mm / 20 kg |
| Power supply | AC 100V |
| Maximum power | 40 W |
| Test environment | 20–30°C / 50–70% RH, no condensation |
| Compression load detection | Differential transformer (ring-type load cell) |
| Load range | 0.2 / 0.5 / 1 / 2.5 kgf (four ranges switchable) |
| Load accuracy | ±0.5% F.S. |
| Compression displacement detection | Potentiometer |
| Displacement range | 10 mm |
| Displacement accuracy | ±0.5% F.S. |
| Compression speed (standard) | 0.02 mm/s (1 mm / 50 s) |
| High-sensitivity speed | 0.0067 mm/s (1 mm / 150 s) |
| Variable speed | 0.01 – 0.10 mm/s |
| Standard test load | 50 gf/cm² |
| High-sensitivity test load | 10 gf/cm² |
| Variable test load | 10 gf/cm² – 1.25 kgf/cm² |
| Compression platen | Circular, 2 cm² |
| Test repetitions | Continuous, 3 times |
| Sample size | 10–20 cm square (standard) |
