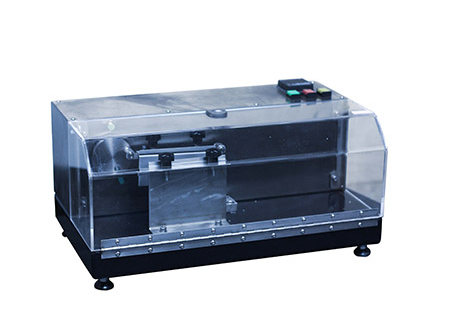

Anti-drill tester (Friction method) ASTM D3884
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The tester is suitable for assessing material durability in security textiles, automotive composites, aerospace CFRP panels, and industrial components like hoses and conveyor belts. It helps R&D, quality control, and production departments verify friction and penetration resistance under controlled conditions.
Standards
ASTM D3884 – Textile abrasion resistance
ISO 9352 – Friction and wear testing
NIJ 0108.01 – Ballistic-resistant materials
GB/T 29423 – Chinese abrasion resistance standard
Feature
(1) Adjustable RPM and pressure simulate real-world drilling and abrasion conditions.
(2) Standardized abrasive media (SiC-coated belts/discs) for consistent testing.
(3) Real-time penetration depth monitoring with laser sensor (±0.1mm).
(4) Thermal imaging tracks friction-induced heat.
(5) AI-based wear pattern analysis for predictive material assessment.
(6) Programmable multi-stage friction cycles with motorized sample rotation.
(7) Automatic reset and safety shutdown after testing.
(8) Compact laboratory/bench design for easy installation.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Friction Head | Rotating abrasive disc, 120mm diameter, SiC-coated |
| Rotation Speed | 100–1000 RPM, programmable, ±5 RPM |
| Pressure Control | 5–50 N, adjustable via pneumatic system |
| Abrasive Media | Standardized silicon carbide belts, Grit 80–400 |
| Temperature Measurement | Thermocouple, 0–500°C, ±1°C accuracy |
| Sample Size | 100 × 100 × 30 mm (adjustable clamping) |
| Power Supply | 220V/50Hz, 1.5 kW |
| Dimensions | 800 × 600 × 1200 mm (L×W×H) |
