Syringe slide performance tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The Syringe Slide Performance Tester is a specialized instrument designed to measure the push and pull forces of syringe plungers, ensuring smooth operation, precise dosing, and consistent quality. It displays real-time force data, records the maximum and minimum push forces, and generates movement-force curves. The results can be printed directly using the built-in printer, making it ideal for both production quality control and R&D of syringes.
Application
This tester is suitable for evaluating the sliding performance of various medical devices, including:
(1) Disposable sterile syringes – 1 mL to 200 mL, assessing plunger smoothness and push-back force.
(2) Insulin syringes – verifying consistent dose delivery and ease of use.
(3) Infusion syringes – testing sliding force under different fill volumes.
(4) Catheter syringes – ensuring smooth plunger movement for accurate administration.
(5) Quality control in syringe manufacturing – confirming compliance with national and international standards.
(6) Research and development – assessing new syringe designs and materials for optimal plunger performance.
Standards
The instrument is designed to meet the following standards:
(1) GB 15810-2001: Disposable sterile syringe (China)
Optional expansions can comply with:
(2) ISO 7886-1:2017: Sterile hypodermic syringes – Part 1 (International)
(3) ISO 8537-2016: Disposable hypodermic needles (International)
Features
(1) 5.7-inch (120 × 90) single-color LCD touch screen for real-time display.
(2) Chinese menu display with keyboard control for intuitive operation.
(3) Real-time recording of starting force, maximum force, minimum force, and core rod movement.
(4) Built-in printer for immediate test result output.
(5) Intelligent controller with CPU, motherboard, LCD, keyboard, and power supply.
(6) Adjustable testing speed and load range to accommodate different syringe types.
(7) User-friendly interface requiring minimal training.
Parameters
| Parameter | Specification |
|---|---|
| Working temperature | 5 – 40 ℃ |
| Relative humidity | 45 – 80 % |
| Power supply | AC 220 V ± 22 V |
| Power frequency | 50 Hz ± 1 Hz |
| Display | 320 × 240 single-color LCD, Chinese Windows |
| Load range | 0 – 40 N, accuracy ±0.1 N |
| Test speed | 100 mm/min ± 5 mm/min |
| Power consumption | 200 W |
Send product request
Other supplier products
 |
Automobile Wire Cross-linking Test Device SAE J1128-2005 | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Automobile Wire Cross-linking Test Device is designed to evaluate the cross-li... |
 |

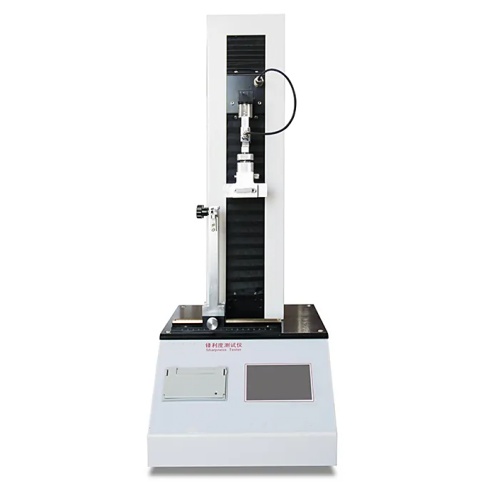

Suture Needle Sharpness Intensity Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Sharpness and Strength Tester for Suture Needles is a device specifically desi... |
 |
