Martindale Abrasion Tester for Fabric & Textile Durability
Standard
ASTM D4966(Standard Test Method for Abrasion Resistance of Textile Fabrics)
ISO 12947-1/2/3/4(Textiles - Determination of the Abrasion Resistance of Fabrics by the Martindale Method)
ISO 5470-2(Rubber- or Plastics-Coated Fabrics - Abrasion Resistance)
Product Advantages
Precision Abrasion Testing
9-station design with adjustable pressure (1–12 kPa) and speed (20–75 RPM) replicates real-world wear patterns.
Universal Material Compatibility
Tests woven, knitted, nonwoven fabrics, leather, and coated materials (e.g., vinyl, PU).
Cost-Effective Automation
Programmable cycles (1–999.999 strokes) and digital counter reduce manual oversight by 60%.
User-Friendly Operation
10.1-inch touchscreen interface with multilingual support (English, Spanish, French, Chinese) and one-touch test start.
Modular Design
Interchangeable abrasives (felt, wool, sandpaper) and quick-release sample holders for rapid configuration changes.
Product Features
Testing Modes
Abrasion Resistance: Measures fabric weight loss after cyclic abrasion.
Pilling Assessment: Evaluates surface fuzzing and pill formation (1–5 scale).
Real-Time Monitoring
High-resolution cameras capture wear patterns every 100 cycles.
Data Management
Cloud-compatible software stores 50.000+ test results and generates ISO/ASTM-compliant reports.
Safety & Compliance
Overload protection, emergency stop, and CE certification for laboratory safety.
Technical Parameters
| Parameter | Specification |
|---|---|
| Number of Stations | 9 (expandable to 12) |
| Pressure Range | 1–12 kPa (adjustable) |
| Speed Range | 20–75 RPM (±1 RPM accuracy) |
| Cycle Counter Capacity | 1–999.999 strokes (digital display) |
| Dimensions (L×W×H) | 800×600×500 mm |
| Weight | 120 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
| Power Supply | 220V/110V AC, 50/60Hz, 1.2kW |
Accessories Included
Abrasion Heads: 9× standard wool felt abrasives (dry/wet compatible).
Calibration Kit: Pressure gauge, speedometer, and NIST-traceable certification.
Sample Clamps: 12× quick-release holders for textiles, leather, and rigid materials.
User Manual: Multilingual guide (English, Spanish, French, Chinese) with maintenance tips.
Carrying Case: Rugged ABS case with foam inserts for safe transport.
Ideal For:
Textile manufacturers (fabric QC for apparel, upholstery, automotive interiors)
Retail brands (garment durability testing)
Research institutes (material science innovation)
Third-party labs (ISO/ASTM certification)
Send product request
Other supplier products
 |
Ignition temperature tester | Introduction The Minimum Ignition Temperature Tester is a way of testing the sensitivity of the ignition that the dust cloud is in the heated envi... |
 |
European standard shrinkage testing machine | Product Overview TheEuropean Standard Washer(EN 14399-compliant) is a high-performance fastening component designed for industrial and automotiv... |
 |
Constant elongation stress meter | Standard constant tensile stress meter conforms to the standard GB/T 21461.2-2008 Plastic ultra-high molecular weight polyethylene (PE-UHMW) moldi... |
 |
Automatic Cross-hatch Tester | Product Introduction: It is a general purpose instrument used to perform a variety of different scratch and scratch resistance tests on paint laye... |
 |
Conical twin screw extrusion platform | Product Introduction: The conical twin-screw torque rheometer is composed of main control unit and conical twin-screw unit, which can simulate the... |
Same products
 |
Full-Body Garment Stress Tester,FZ/T 70015 | Seller: Standard International Group (HK) Limited | TheFull-Body Garment Stress Testeris a precision instrument designed to quantify the pressure exe... |
 |
Industrial Dry Cleaning Machine,industrial garment steamer | Seller: Standard International Group (HK) Limited | TheIndustrial Dry Cleaning and Energy-Saving Dryer Machinesare designed for high-performance, rel... |
 |

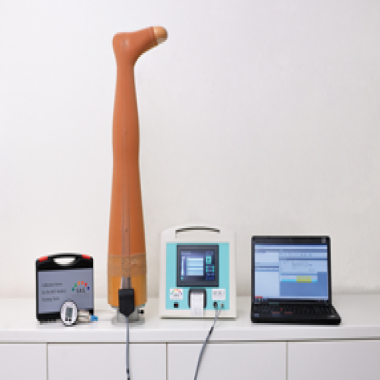

MST Medical Compression Stocking Tester,compression sock tester | Seller: Standard International Group (HK) Limited | The MST Medical Compression Stocking Tester is a professional instrument designed to evaluate the... |
 |
