YCS 6558S 6.5-58X Zoom HD Trinocular Microscope with 4K Camera for Precision Phone Repair
Description
YCS 6558S Trinocular Stereo Microscope features a 6.5X-58X zoom objective lens, 10X/23 eyepieces, 0.5X CTV adapter and a large base, suitable for mobile micro-soldering repair, such as motherboard welding, CPU BGA chips soldering and repair. YCS 6558S Trinocular Microscope can be used with a 4K camera and swing arm to improve the efficiency of mobile repair.
Option:
1. YCS 6558S microscope standard set.
2. YCS 6558S microscope standard + X80 4K camera.
2. YCS 6558S Microscope head with C-mount lens and holder + YCS Swing Arm Bracket + 4K camera + 144 LED Light.

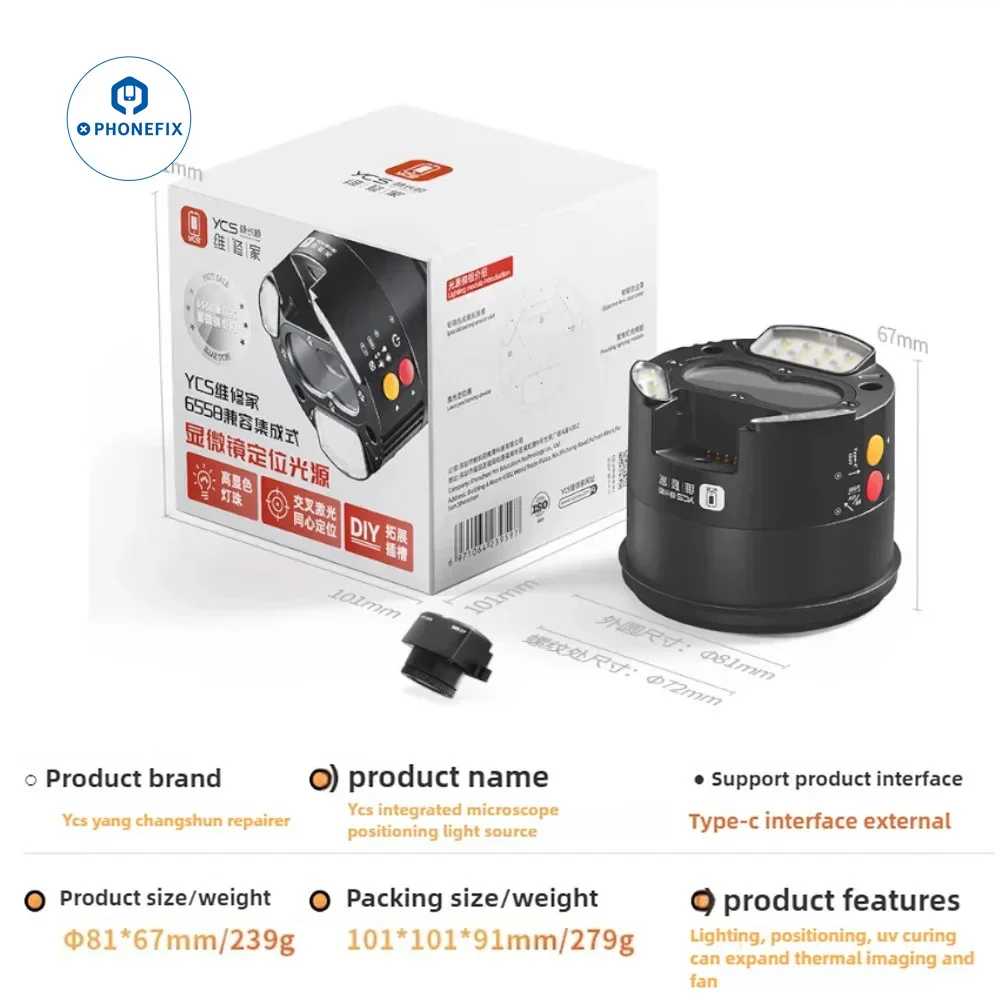

3. YCS 6558 Series Integrated Microscope Positioning Light.
Features:

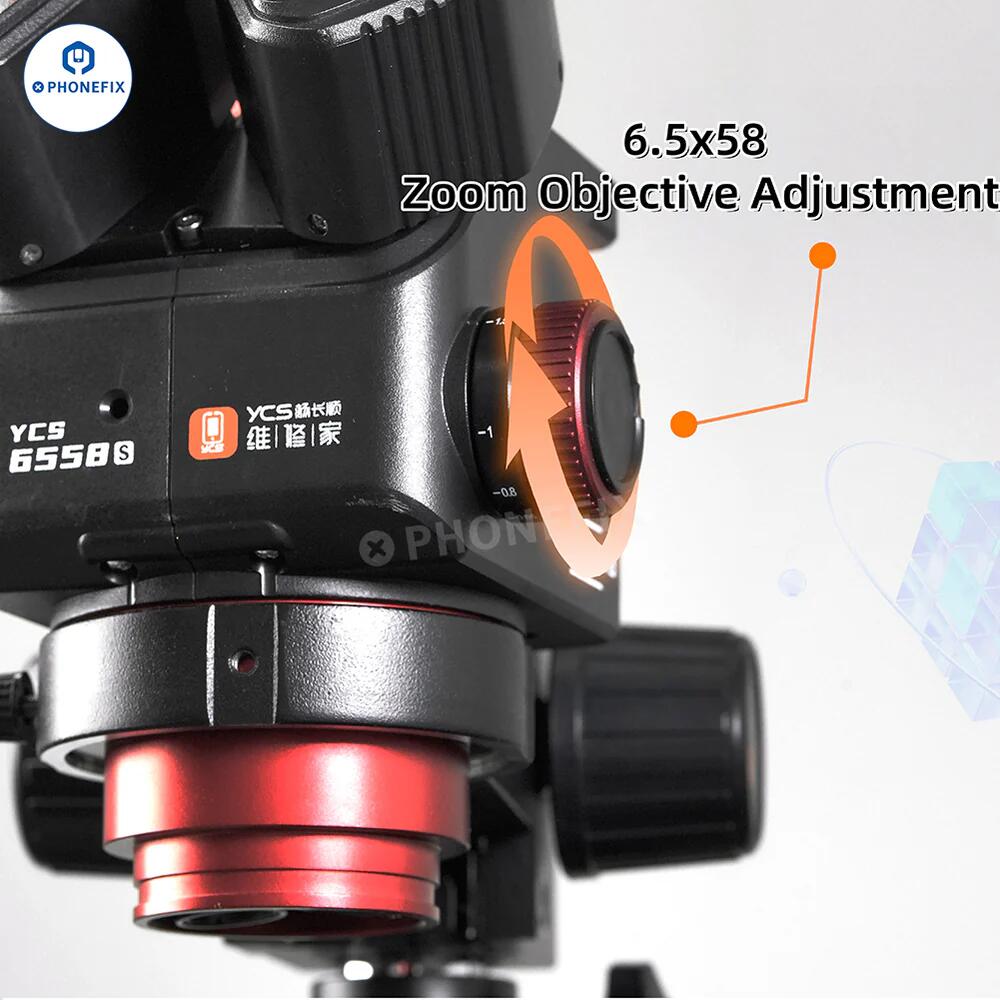

1. YCS-6558S Trinocular Stereo Microscope with a 6.5x-58x continuously variable objective lens.
2. 10x23 high-eyepoint wide-angle eyepiece for clearer imaging and less fatigue.
3. The newly designed large base is made of a metal material with a durable base plate for increased durability.
4. It has a wide range of applications, including mobile repair, laptop repair, mobile PCB soldering, electronic circuit board BGA CPU chip soldering repair, biological research, and precision instrumentation.

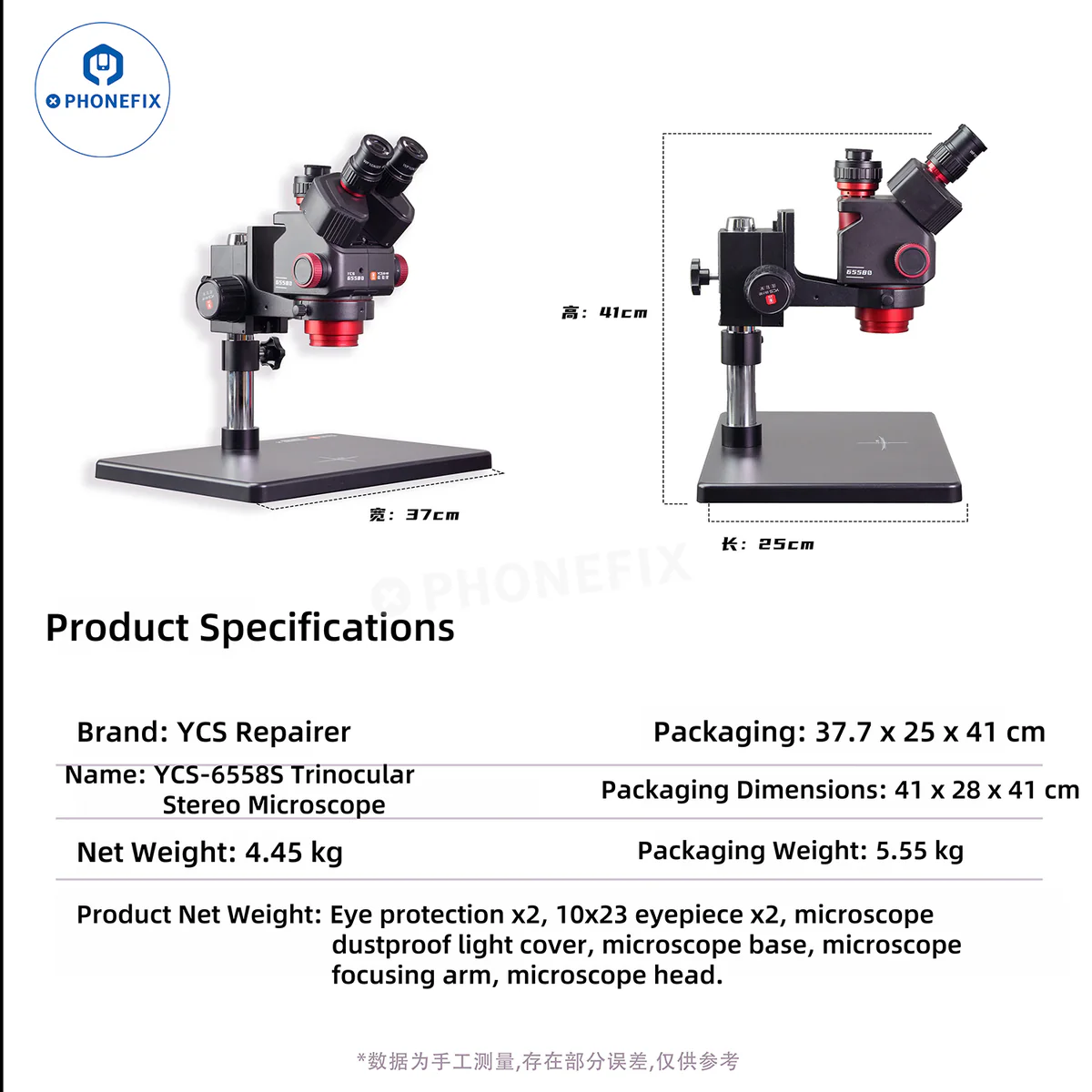

YCS 6558S Specification:
Magnification: Continuous zoom 6.5X to 58X.
Head: 45-degree inclined 360-degree swiveling trinocular.
Eyepiece: WF10X/23MM adjustable.
Objective: 0.65-5.8X.
Zoom Knob: Metal knob.
Camera connector: CTV Lens Adapter (Monitor and eyepiece Synchronous zoom).
Light source: 144 LED ring light
Base pad: Large metal base.
Accessories (optional): HDMI 4K camera, objective lens, etc.
