UV Accelerated Weathering Chamber
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Features and Benefits
1.In a relatively short time, the aging effect of the material exposed toUVlight, temperature, humidity and other factors in the natural environment is simulated, and the test cycle is greatly shortened.
2.UVaccelerated weathering chambercan truly simulate the impact of ultraviolet radiation and rain, dew and other materials in the natural environment, so that the test results are closer to the actual situation.
3.Equipped with professional UVA-340 lamps and UVB-313 lamps, UVA-340 lamps simulate more powerful short-wave ultraviolet light, UVB-313 lamps have higher energy, and the sample can receive ultraviolet radiation evenly.
4.The inner liner of thechamberis made ofSUS304stainless steel plate, which has good corrosion resistance and high temperature resistance. The outer gallbladder is sprayed with A3 steel plate, which enhances the firmness of the test chamber.
Specifications
|
Model |
UV-SI-260 |
|
Internal Dimension (mm) |
450*1170*500 |
|
Overall Dimension (mm) |
610*1330*1470 |
|
Specimen Holder Size(mm) |
75*150 |
|
Specimen Capacity |
56 Pieces |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
|
Temperature Range |
Ambient～90 ℃ ±2℃ |
|
Black Panel Temperature (BPT) |
35～80 ℃ |
|
Humidity Range |
≥95% RH |
|
Bandwidth |
290 ~ 400nm |
|
Irradiance Control |
0.3~20 W/㎡ |
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
Distance of Specimen and lamp |
50mm |
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|
Water Supply System |
Automatic water supply, Water purification system |
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
|
Exterior Material |
Steel Plate with protective coating |
|
Interior Material |
SUS304 stainless steel |
Send product request
Other supplier products
 |
Scratch resistance test equipment with stable pressure | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The instrument is designed to comply with major international and national stand... |
 |
50th percentile male standing crash test dummy for pedestrian safety testing | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com The 50th Percentile Male Crash Test Dummy (Standing) is a biomechanical surro... |
 |

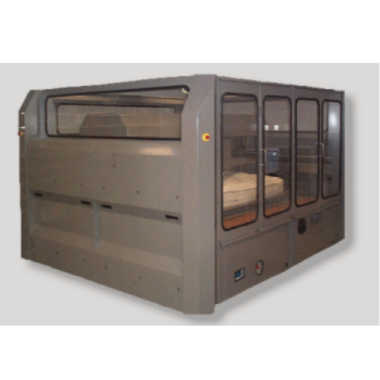

Mattress rollator machine for foam and spring mattresses | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The Mattress Rollator complies with or references the following standards: ASTM... |
 |
