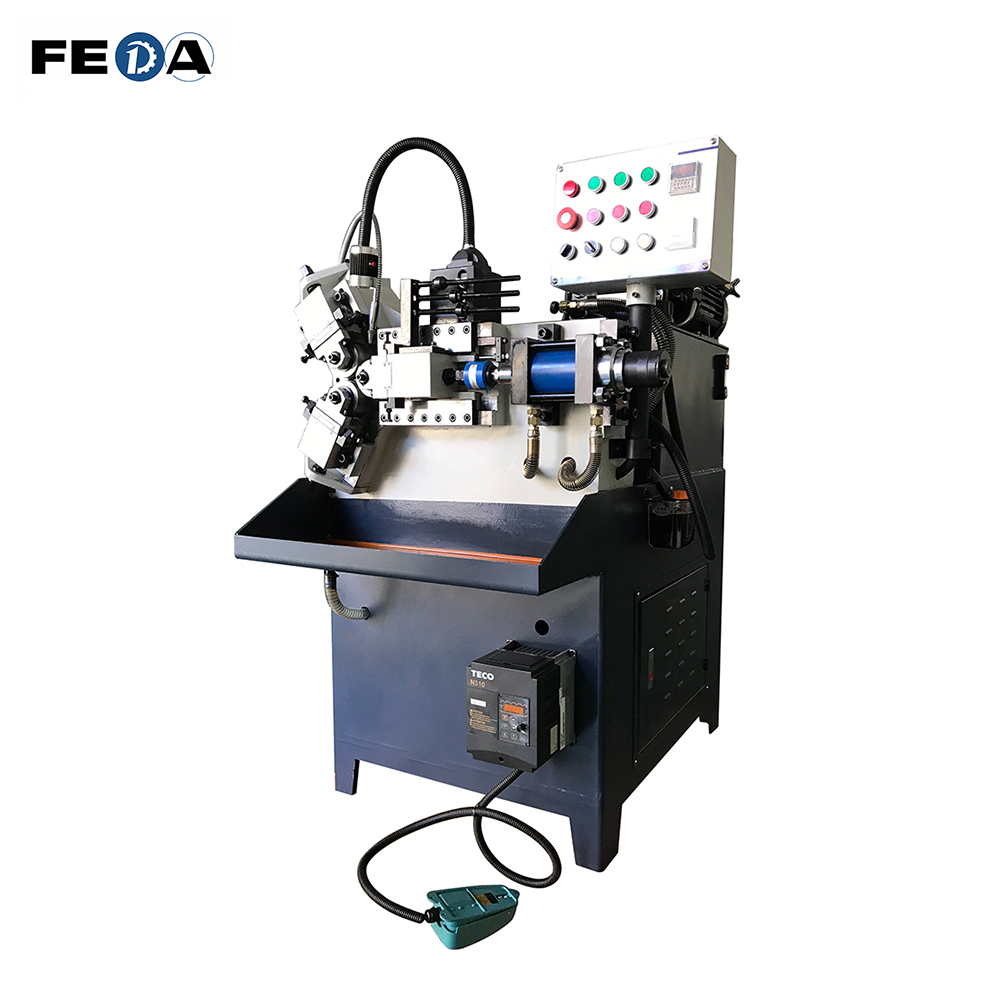

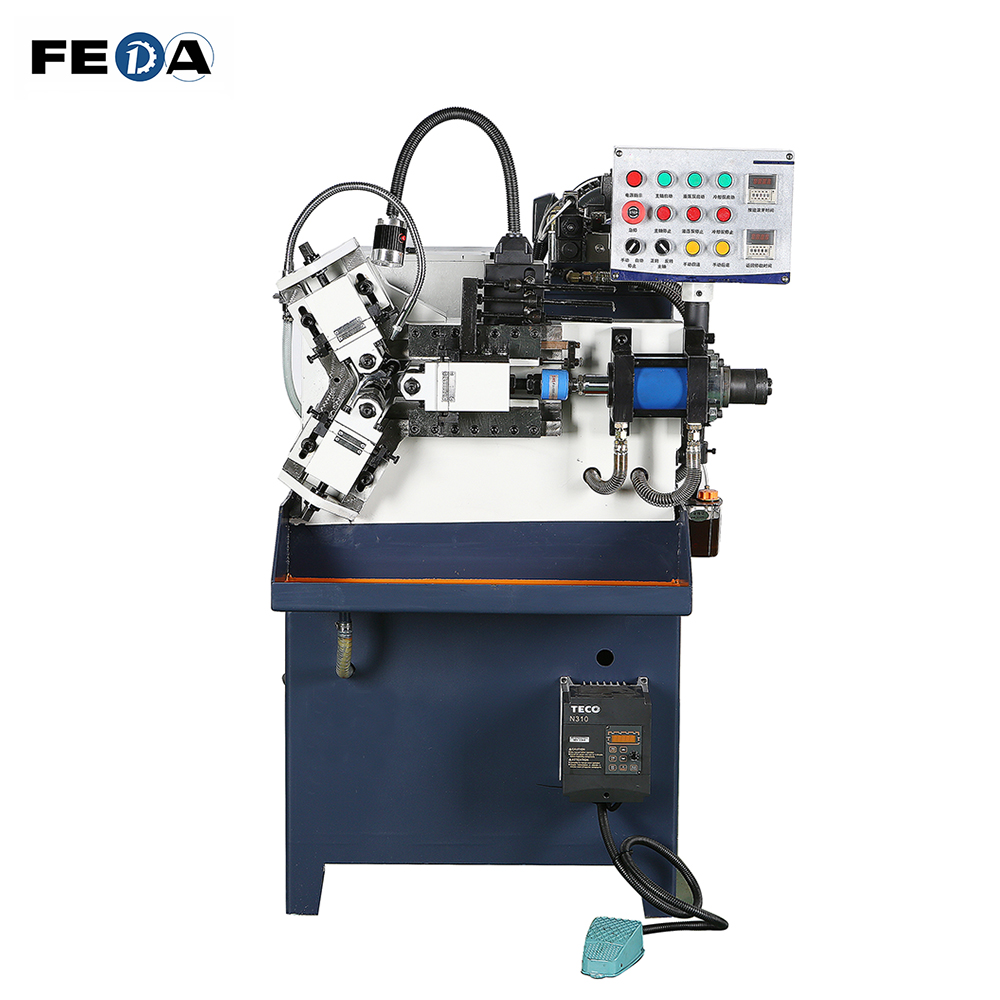

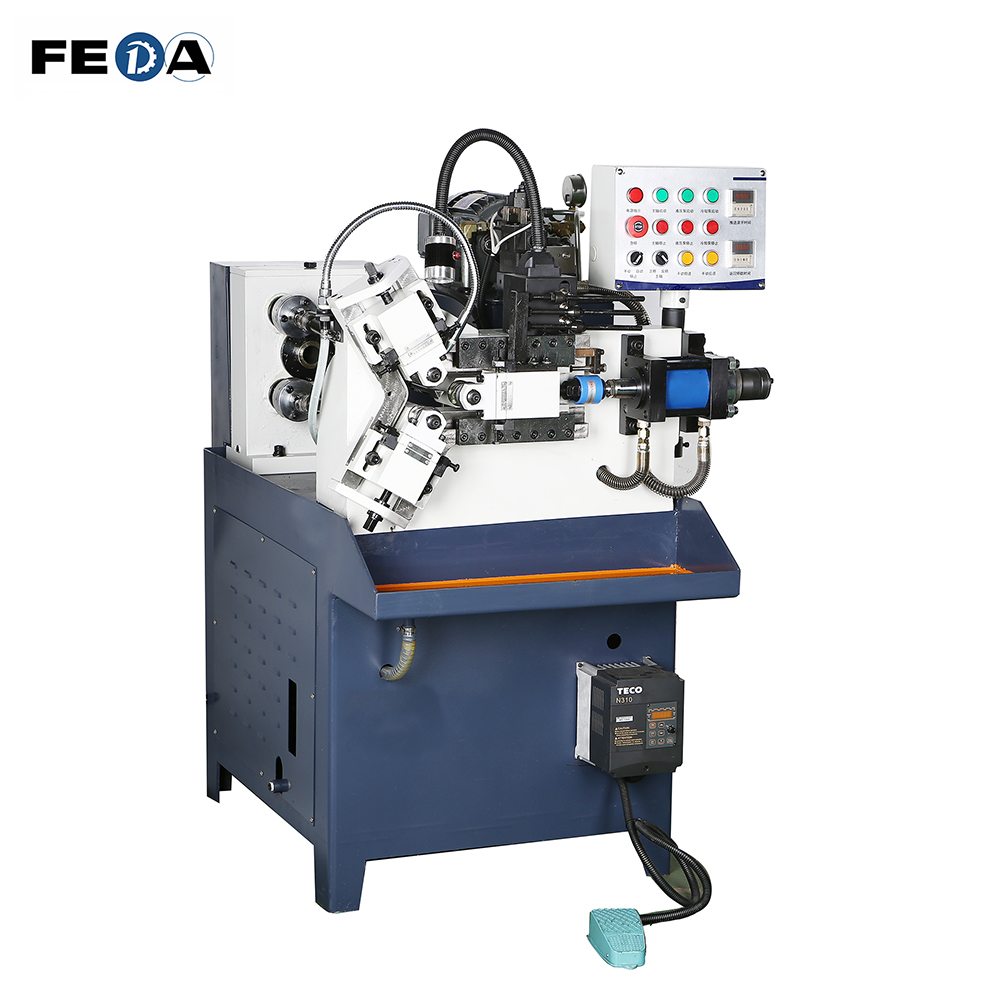

FD-30A pipe threading machine manufacturer tube thread rolling machine automatic threading machinery
1. Three rollers to keep inside diameter same as that before rolling
2. Usually used for making thread, knurling on pipe, tube parts
3. High precision, stability and high durability
4. Automatic feeding device(Vibration bowl) can be designed
5. CE, ISO9001-2008
| Specification | ||
| Working diameter | 8-35mm | |
| Thread pitch | 0.5-2.5mm | |
| Thread length | In feed or Thru feed | |
| Spindle speed | 350-600rpm (variable speed) | |
| Outside diameter of rolling die | φ78mm- 90mm | |
| Inside diameter of rolling die(keyway) | φ25.4mm&φ35mm | |
| Thickness of rolling die | 40mm | |
| Center distance between die spindles | 55-90mm | |
| Output(pcs/min) | 5-30(pcs/min) | |
| Swiveling Angle(degree) | ±3° | |
| Main power motor | 2.2 KW | |
| Hydraulic motor | 1.5 KW | |
| Max rolling pressure | 6T | |
| Supply voltage | 380V 3P 50Hz | |
| Weight(reference) | 650KG | |
| Package Dimension(L*W*H) | 1280*1100*1600 mm | |
| Dimension(L*W*H) | 1180*1000*1500 mm | |
Q1. Are you factory or trading company ?
A1. We are factory of manufacturing thread rolling machine and dies by ourselves.
Welcome to visit our factory, if possible.
Q2. What is the delivery time ?
A2. Usually 15-25 working days for machine, and 10-15 working days for dies.
Q3. What is the warranty time for machine?
A3. Usually 12 months from B/L date.
Q4. What is the payment term?
A4. T/T, Western Union, Money Gram, Alipay, PayPal.
50% as deposit, and 50% before shipping.
Q5. Is it possible to design and produce automatic loading & unloading devices?
A5. Yes,Engineer can design special auto feeding device according to your products.
But please provide the drawing of your products before that.
Q6. How will you solve problems that we face during using your machine?
A6. A. Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.
B.Will arrange engineers to solve problems at the scene, if possible.
