Syringe Seal Integrity Under Negative Pressure Testing Machine
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Meet the standard
YY0053-2008. GB 15810-2019 single-use sterile syringe, ISO7886-1:2017 single-use sterile
syringe, ISO7886-1. ISO8537-2016. YY0497-2018
Main use
The Syringe Negative Pressure Tightness Tester is mainly used to test the physical characteristics of the body
of the syringe, and is one of the important means to identify the body of the medical syringe.
It is suitable for infusion set, blood transfusion set, infusion needle, anesthesia kit, pipeline,
catheter, filter, quick connector, etc.
Instrument characteristics
It is composed of PLC programmable controller, pressure sensor, control mechanism, etc.
It is easy to operate. Real-time display of pressure value, holding time, automatically end the test.
High brightness LED digital display; The pressure output value can be set arbitrarily, and the
verification error is not more than ±1% of the reading.
Technical parameter
1. Operation interface: Simplified Chinese, English
2. Negative pressure detection: -88Kpa error is not more than ±0.3Kpa, LED digital display;
3. Negative pressure output: -88Kpa±0.3Kpa;
4. Detection range: -5 Kpa —— -99 Kpa adjustable.
5. Test duration: 1S —— 9999S arbitrary setting, LED digital display, error is not more than 0.1 seconds;
6. Power supply: AC220V, 50Hz
7. Machine power: 60W
Send product request
Other supplier products
 |
In-situ expansion analysis system | Whats/App: +86 156 1874 6768 Web: standard-groups.com The In-situ Expansion Analysis System is designed for high-precision measurement of dimensi... |
 |

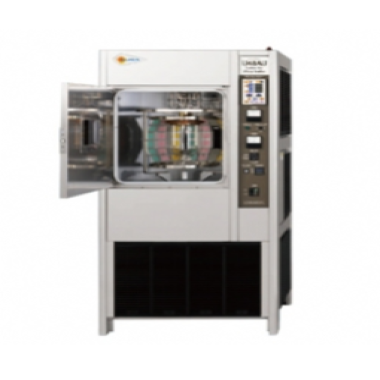

SI80 Carbon Arc Aging Tester丨SI80 Carbon Arc Aging Chamber | Whats/App: +86 156 1874 6768 Web: standard-groups.com Material aging and fading performance test SI80 carbon arc aging tester, carbon arc aging ... |
 |
Manual Air Filter Performance Test Machine | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards (1) GB/T 14295-2008 – High-efficiency air filters (2) GB/T 13554-2020 &nd... |
 |

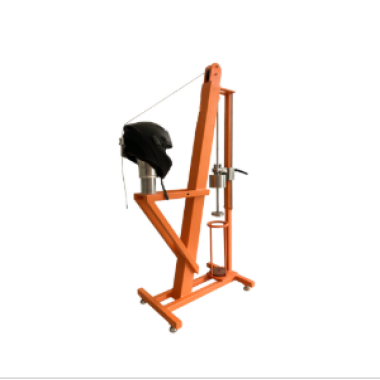

Safety helmet peripheral vision testing equipment for EN 1078 certification | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The equipment complies with international and regional safety stan... |
 |
