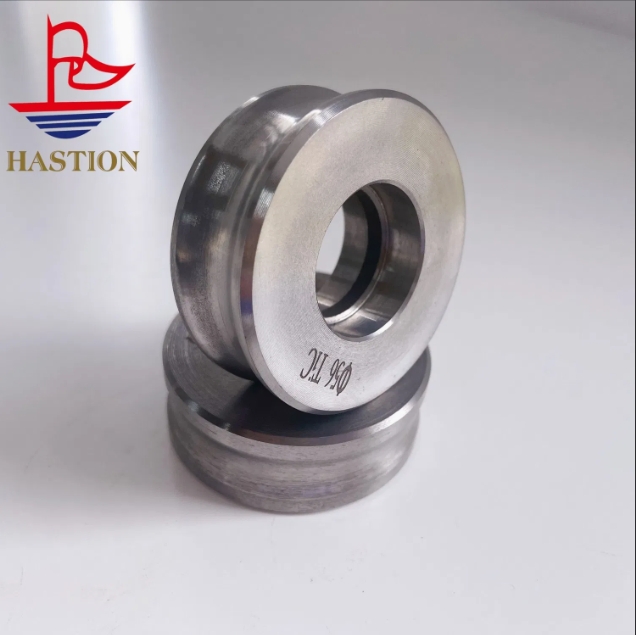

Hard alloy guide wheel titanium carbide - wear-resistant
This type of guide wheel can be customized with groove shapes according to the specifications of the wire or pipe, such as V-shaped, U-shaped, semi-circular, etc., to meet different production requirements. After its surface is polished, the roughness is as low as Ra0.01μm, which can reduce the friction damage of the wire and increase the breaking strength of the metal wire by 10%. In the production of automotive brake cables, the stable guidance of the guide wheels can ensure the uniform tension of the brake cables and avoid the risk of breakage during use. The hard alloy titanium carbide guide wheel has excellent thermal shock resistance. It will not crack when the temperature rises sharply from room temperature to 300℃ and then drops sharply back to room temperature, making it suitable for intermittent production conditions. The size range of guide wheels is wide, with diameters ranging from 50mm to 500mm and widths from 10mm to 100mm, which can be adapted to different types of drawing or rolling equipment. In the production of optical fibers and cables, it can precisely guide optical fibers, keeping the attenuation rate of optical fibers below 0.2dB/km and ensuring the quality of communication.
