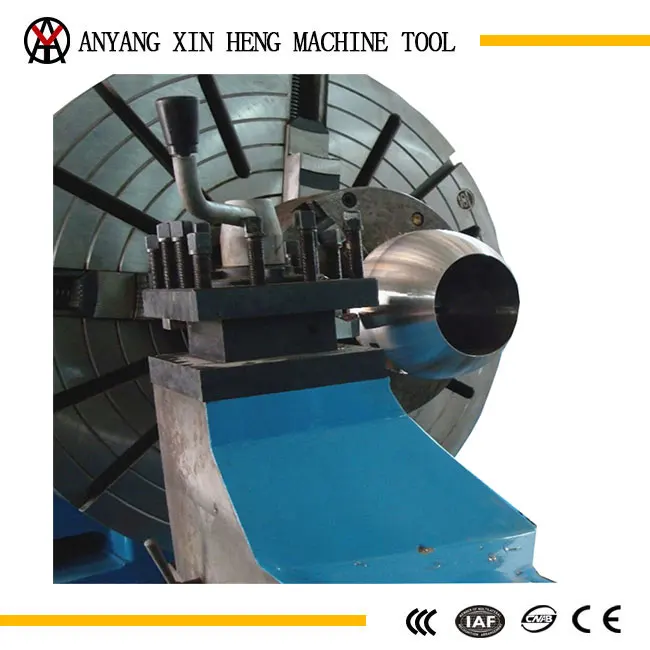

C6555 Range of spindle speeds spherical turning lathe with good service
C6555 Range of spindle speeds spherical turning lathe with good service
The spherical lathe is mainly used for the turning machining of spherical core of ball valve,The diameter of the processing sphere is 550mm-1800mm.It can realize fine car, semi-fine car, grinding and other processing work.The lathe bed adopts the rectangular guide rail, the stability is good, the rigidity is strong.
Main configuration:
The user can select the special configuration or special order according to the size and purpose of the workpiece
|
ITEM |
UNIT |
C6555 |
|
|
CAPACITIES |
Max. Dia. of spherical |
mm |
550 |
|
Min. Dia. of spherical |
mm |
50 |
|
|
SPINDLE |
Dia. of spindle hole |
mm |
100 |
|
Taper of hole of spindle |
mm |
120 |
|
|
No. of spindle speeds |
18 |
||
|
Range of spindle speeds |
r/min |
6~800 |
|
|
Spindle reverse speeds |
r/min |
11~838 |
|
|
TAILSTOCK |
Swivel angle of toolpost |
° |
±90 |
|
OTHERS |
Main power |
kw |
11 |
|
Weight |
t |
4.4 |
|
|
Length |
mm |
3725 |
|
|
Width |
mm |
1280 |
|
|
Height |
mm |
1690 |
|
- high speed high efficiency
- strong adaptability high quality
- high precision good rigidity
Accessories:
also called headstock, it is the main task of the main motor rotation movement coming after a series of variable speed institutions make main shaft gets the different rotating speed of the positive and negative two turn, at the same time the spindle box gives impetus to the movement into the box.
When the gear and gear ring are engaged, the four locking claws are connected, synchronously and at the same time, can hold the circular workpiece.
♠Accordingtoclientsrequirement(Purchasepurpose),wecanofferserviceasfollowing:
♠Projectsystemevaluationinvestmentbudget
♠Sitemeasurement
♠Technicaldiscussion
♠Supplyprofessionaldrawingandlists
In-sale
♠Qualityguaranteed
♠Fieldserviceforequipmentinstallationandtrainingwork
♠Acceptanceanddelivery
Afer-sale
♠24honineresponse
♠Supplyingsparepartsatcostprice
♠Regularreturnvisit
Q1. What's your delivery time?
A: It usually take 15-60 days to build a machine. All parts will have to be tested qualified before shipping.
Q2.MOQ?
A: 1 set.
Q3.Payment term?
A: 30% deposit before we start producing.
Company Information:
Anyang Xinheng Machine Tool Co. Ltd.is a modern and high- tech company which is a professional manufacturer of LATHE, CNC LATHE, PIPE THREAD LATHE, SPHERE TURNING LATHE etc. With more than 30000sqm workshops and offices, we have 60 years experiences in machine tool production and our machine tools. Our machines have been exported more than 50 countries. Welcome all customers and friends come to our company!
|
Product name |
Type |
Swing over bed |
Max.length of workpiece |
|
Ordinary lathe machine |
CW6163/80/94 |
630~1640mm |
50-12000mm |
|
CW6180/CW61100 |
|||
|
CW61100/125/160 |
|||
|
Heavy duty lathe |
CW61125/140/160 |
1250~2500mm(10t~32t) |
3000-2000mm |
|
C61125/160/180/200 |
|||
|
C61160/200/250 |
|||
|
Spherical lathe |
C6555/95/160/180 |
550~1800mm |
Dia.of spherical:550-1800mm |
|
CNC lathe machine |
CK6142/52/63/80/94 |
420~1600mm |
750-6000mm |
|
CKB6180/100 |
|||
|
CK61100/125/160 |
|||
|
CNC heavy duty lathe machine |
CKH/CKHJ61125/160/200 |
1250~2500mm(16~63t) |
3000-20000mm |
|
CK61160/200/220/250 |
|||
|
CNC pipe thread lathe |
QK1212/19 |
Dia.of pipes:120~460mm |
750-2800mm |
|
QKP/QKA1226/46 |
|||
|
Mini lathe |
CJK0632/0632J |
200~500mm |
260~1000mm |
|
CJK0640/60/80 |
|||
|
CK6132/36/40/50 |
