Drying Rate Tester
Product Introduction
The Drying Rate Tester is designed according to AATCC201 standard requirements. Equipped with high-precision temperature and airflow sensors, automated dripping system completes fabric drying time and rate testing with integrated data analysis, significantly improving work efficiency and measurement accuracy while reducing human operation errors.
Standard Compliance
AATCC201
Testing Principle
Simulates human perspiration drying process: Fabric samples are placed on a 37°C heated plate with 0.2mL water droplet at center. Maintains 1.5m/s±0.1m/s airflow for drying. Infrared temperature sensors monitor fabric temperature changes to determine drying completion.
System Components
Main testing host
DRT computer analysis software
Sample pressing plate
Construction Features
Thickened aluminum alloy housing provides durable corrosion resistance. Integrated control panel and display enable standalone operation without computer connection.
Technical Parameters
|
Parameter Item |
Specification |
|
Heating Plate |
305mm × 305mm |
|
Metal Press Plate |
150mm × 40mm × 2mm |
|
Plate Temperature |
37 ± 0.1°C |
|
Temperature Resolution |
0.01°C |
|
Airflow Speed |
1.5m/s ± 0.1m/s |
|
Infrared Sensor |
15~50°C ± 0.1°C |
|
Fabric Thickness |
0~10mm |
|
Water Volume |
0.2mL ± 0.001mL (adjustable) |
|
Data Transmission |
Wireless WiFi |
|
Power Supply |
AC220V±10%, 100W or AC110V±10%, 100W |
|
Dimensions |
520(L) × 400(W) × 260(H)mm |
|
Weight |
Approx. 30kg |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Catheter bending resistance tester | The Catheter Bending Resistance Tester is a specialized instrument designed to evaluate the bending performance and flow characteristics of cathete... |
 |

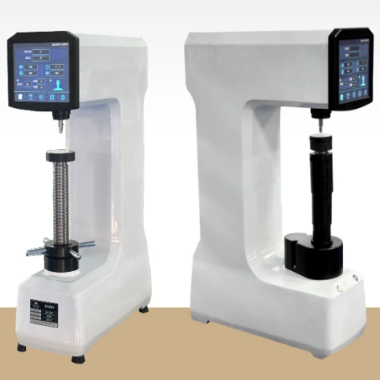

Plastic ball indentation hardness tester | The Plastic Ball Indentation Hardness Tester is a precision instrument designed to evaluate the mechanical and hydraulic performance of plastic dra... |
 |

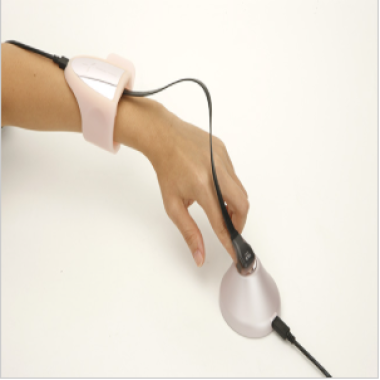

Finger Tactile Tester Sensor | Finger Tactile Sensor is a "sensor that measures natural finger operations"with a built-in contact force sensor and a 3-axis acceleration sensor. ... |
 |
Digital display electronic ink viscosity meter | How it works: The working principle of the digital display electronic ink viscosity meter is based on two tin (usually a metal roller and a rubber... |
 |

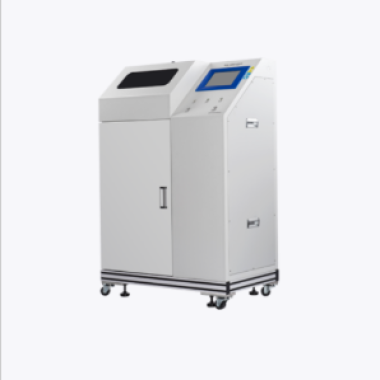

Solids Spontaneously Igniting Tester | Product Description Conforms to the UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 33.3.1.4 Test N.2: Test ... |
