Powder Coating for Agricultural and Construction Machinery MT-602
Powder Coating for Agricultural and Construction Machinery MT-602is an outdoor polyester powder coating system combined with a zinc-rich primer, specifically designed for agricultural and construction machinery and heavy-duty equipment. You can use this system to achieve long-term corrosion protection, enhanced edge coverage, and stable outdoor durability for machinery operating in harsh and corrosive environments.
Application
You can apply MT-602 to machinery and components that require enhanced corrosion resistance and mechanical protection, including:
-
Construction machinery frames and attachments
-
Logging and forestry machinery components
-
Agricultural machinery structures and housings
-
Automotive machinery and special-purpose equipment
-
Truck bodies and heavy-duty metal components
Performance verification is conducted on degreased and derusted cold-rolled steel panels commonly used in machinery manufacturing. Testing covers corrosion resistance, impact resistance, stone chip resistance, humidity resistance, fuel resistance, and artificial weathering under internationally recognized standards.
Parameters
| Item | Specification |
|---|---|
| Product Type | Outdoor polyester powder coating + zinc-rich primer system |
| Curing Schedule | 180–200 °C × 10–15 minutes (metal temperature) |
| Application Method | High-voltage electrostatic spraying |
| Recommended Voltage | 60–80 kV |
| Recommended Film Thickness | 60–150 µm |
| Standard Test Substrate | 0.8 mm degreased and derusted cold-rolled steel |
| Test Film Thickness | 60–80 µm |
Coating Performance:
| Property | Test Standard | Performance Requirement |
|---|---|---|
| Adhesion | ISO 2409 | Class 0 |
| Impact Resistance | ISO 6272 | 50 kg·cm, no failure |
| Pencil Hardness | ASTM D3363 | ≥ 1H |
| Bend Resistance | ISO 1519 | ≤ 2 mm |
| Salt Spray Resistance (NSS) | ISO 7253 | ≥ 1000 h, rating 10, no blistering, creepage ≤ 2 mm |
| Damp Heat Resistance | ISO 6270 | ≥ 960 h, slight discoloration only, no blistering, rust, or peeling |
| Weathering Resistance (QUV-B313) | ISO 11341 | ≥ 1000 h, ΔE ≤ 5, gloss retention ≥ 50 % |
| Fuel Resistance | ISO 2812-1 | 24 h immersion, no surface change |
| Gasoline Resistance | ISO 2812-1 | 4 h immersion, no surface change |
| Stone Chip Resistance | SAE J400 | Rating ≤ 3 |
| Water Resistance | ISO 2812-2 | 20 cycles, no blistering |
Features
-
You obtain excellent corrosion resistance through the combination of polyester topcoat and zinc-rich primer.
-
You benefit from improved edge and corner coverage, reducing corrosion risk at critical areas.
-
You achieve reliable stone chip resistance suitable for machinery exposed to gravel and debris.
-
You gain stable UV resistance, helping maintain appearance during long-term outdoor exposure.
-
You apply a coating system designed for heavy-duty machinery operating under mechanical and environmental stress.
Case
We solved a long-term corrosion protection challenge for an agricultural machinery manufacturer.
The customer needed a coating solution for machinery frames and truck bodies operating in high-humidity and abrasive environments. Their previous coating system showed early corrosion at edges and fasteners, as well as coating damage from stone impact.
We recommended the MT-602 system with a zinc-rich primer to enhance corrosion protection and edge coverage. By optimizing film thickness and curing conditions, the customer achieved improved salt spray resistance, stable adhesion, and better stone chip performance under laboratory evaluation. This helped extend equipment service life and reduce repainting frequency in field use.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

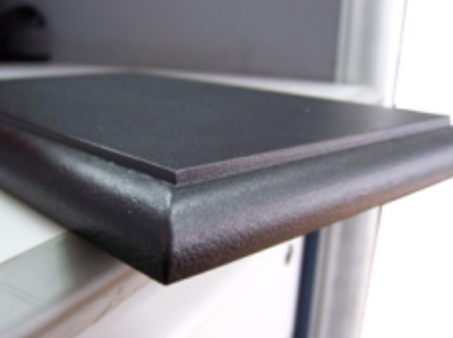

MDF Powder Coating | Feature： -Environmental friendly -No solvents and volatile organic compounds involved which are harmful to the environment -Energy saving,low cu... |
 |
Matt Powder Coating-high quality powder coating | As a professional powder coating manufacturer in China, we specialize in producing high-quality Matt Powder Coatings with customized colors, textur... |
 |
Polyamide Powder Coating for Transportation | Why Choose Nylon Powder Coatings? Outstanding Abrasion and Impact Resistance Excellent Chemical and Corrosion Resistance Smooth, Dense, and Flex... |
 |

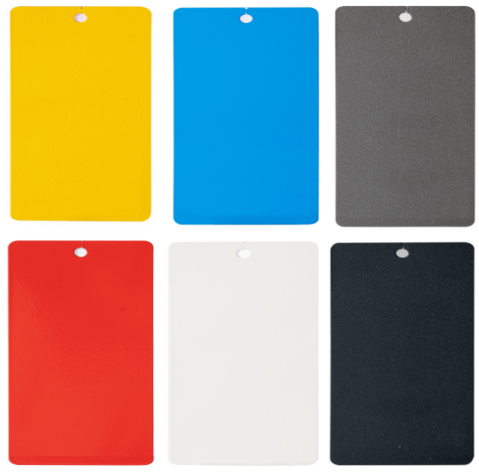

Polyester Resin / PT910 System Powder Coating | 1. Resin-Based Powder Coating Comparison Comprehensive overview of resin systems tailored for engineering decision-makers and professional buyers.... |
 |
