The Pin-on-Disc Friction and Wear Tester
The Pin-on-Disc Friction and Wear Tester is designed for evaluating the friction and wear performance of materials and surface coatings. The instrument can simulate different friction modes using ball-on-disc or pin-on-disc configurations and measure friction coefficient, wear depth, and wear resistance in real time. The tester features user-friendly operation, automatic stop protection for safety, and high measurement accuracy, making it suitable for research, quality control, and industrial testing.
Application
Friction and wear testing of metal and non-metallic material surfaces.
Evaluation of wear resistance for coatings, platings, and composite materials.
Performance testing of ball-on-disc and pin-on-disc friction pairs.
Materials science research and industrial quality control in laboratories.
Teaching and research experiments in tribology.
Standards
GB/T 3960-2016 Plastics – Determination of Sliding Wear Properties
ASTM G99 Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus
ASTM G133 Standard Test Method for Linearly Reciprocating Pin-on-Flat Sliding Wear
ISO 20502 Coating Scratch Test
DIN 50324 Friction and Wear Test Standard
Parameters
| Parameter | Specification |
|---|---|
| Test Load Range | 30–1000 g (weight loading), 10–200 N (automatic); accuracy 0.2% F.S. |
| Sample Table Speed | 5–2800 rpm, continuously adjustable |
| Friction Diameter | Φ3–Φ50 mm, adjustable |
| Friction Force Measurement | ≤100 N |
| Power Supply | 210–235 V, 50–60 Hz, 2500 W |
| Workbench Size | 1800 × 750 × 800 mm (user-supplied) |
Features
Supports ball-on-disc and pin-on-disc friction pairs for versatile testing.
Wide load and adjustable speed range for various materials and coatings.
Automatic measurement of friction coefficient, wear depth, and wear resistance with real-time display.
Automatic stop protection for safe operation.
High measurement accuracy, suitable for research, quality control, and industrial applications.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Textile Thermal Insulation Property Tester | Standard GB/T 41560-2022 (China): Specifies thermal resistance testing protocols for protective clothing and industrial fabrics. BS 6526:1998 (... |
 |
Hydraulic Oil Precision Filter Tester，ISO 4406 hydraulic fluid precision filtration device | The Hydraulic Oil Precision Filter Tester is a specialized filtration device for processing high-precision industrial oils such as hydraulic oil, a... |
 |
Fiber Crimp Elasticity Tester | The Fiber Crimp Elasticity Tester is a specialized instrument designed to measure the crimp degree, crimp elasticity, and crimp recovery rate of fi... |
 |

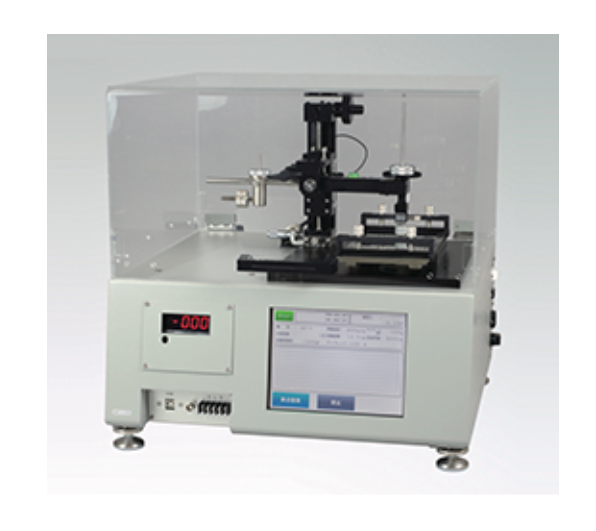

Friction and Wear Test Machine | Application Materials science research: Evaluation of friction and wear behavior of metals, alloys, ceramics, polymers, and composite materials S... |
 |
