GX75 7.5kW Xenon Weather Meter
GX75 7.5kW Xenon Weather Meter is designed to artificially reproduce indoor and outdoor environments such as sunlight, temperature, humidity, and rainfall, accelerating the aging of products and materials to predict their service life. The product range spans from global standard weathering testers to the latest premium accelerated models.
Standards
The GX75 meets stringent international standards, including:
ISO 4892-2.ASTM G155.SAE J2527(automotive coatings)
JIS K7350-2(Japan Industrial Standard for weathering tests)
AATCC TM16.GB/T 16422.2(China’s national standard for xenon-arc exposure)
These standards ensure reliable evaluation of material durability, colorfastness, and aging resistance.
Features
High-Intensity Acceleration: The 7.5kW water-cooled lamp allows for significantly higher irradiance levels than air-cooled systems, enabling you to finish life-cycle predictions in a shorter timeframe.
Versatile Simulation Cycles: You can program complex cycles that include light exposure, dark periods, rainfall (front spray), and evening dew (rear spray) to replicate real-world diurnal variations.
Superior Irradiance Control: The system maintains precise control over the 300--400nm range, ensuring that the spectral distribution remains consistent even as the lamp ages.
Dual-Spray Functionality: Unique spray configurations allow for moisture simulation on both the front and back of the samples, which is critical for assessing materials prone to delamination or backside corrosion.
Wide Temperature Range: With a BPT capability up to $110^circtext{C}$, you can simulate the extreme heat found on automotive dashboards or in desert climates.
Parameters
| Parameter | Specification |
|---|---|
| Light Source | 7.5kW water-cooled xenon arc lamp |
| Irradiance Control | 40–120 W/m² (300–400 nm), auto-calibration |
| Temperature Range | BPT 63–110°C ±2°C, chamber 38°C ±2°C |
| Humidity Range | 50% RH ±5% RH (light cycle), 95% RH ±5% RH (dark cycle) |
| Spray System | Programmable surface/back spray for rain simulation |
| Sample Capacity | Up to 63 samples (70×150 mm) |
| Filter Options | Daylight (#295), Extended UV (#275), Window Glass (#320) |
| Dimensions | 1030×1270×1850 mm (W×D×H), 500 kg |
Accessories
Xenon Arc Lamp: 7.5kW high-output water-cooled lamp.
Filter Set: Interchangeable inner (Quartz) and outer (#295. etc.) filters to match specific solar spectra.
Black Panel Thermometer (BPT): For precise surface temperature monitoring.
Specimen Holders: Standard stainless steel clips for $150 times 70text{mm}$ samples.
Water Cooling Unit: Dedicated heat exchanger system to maintain lamp temperature.
Irradiance Calibration Meter: For periodic verification of the xenon output.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Rotary Rubbing Color Fastness Tester (Crockmeter) - Test Equipment | Rotary Rubbing Color Fastness Testing Machine(rotary color fastness tester) used for printed fabric, textile printing and dyeing industry, especial... |
 |

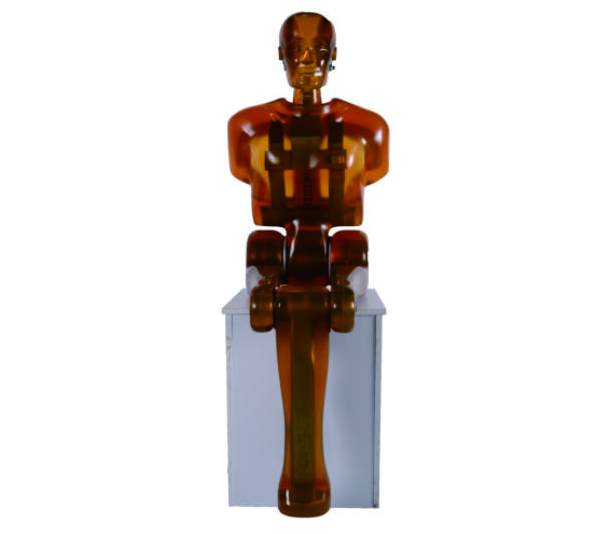

Seatbelt Test Dummy ECE R16 | The ECE R16 crash test dummy is a professional anthropomorphic test device representing a 50th percentile adult male. You can use it for dynamic se... |
 |
