GX25 Xenon Lamp Weathering Tester
GX25 Xenon Lamp Weathering Tester is a compact yet powerful environmental simulation instrument specifically engineered to evaluate the lightfastness and weather resistance of daily commodities, packaging, and high-tech components. By utilizing a 2.5kW water-cooled xenon arc lamp, this tester provides a stable and accurate reproduction of the solar spectrum, allowing you to observe the degradation of materials caused by sunlight, heat, and humidity. It is an essential tool for manufacturers looking to predict product lifespan and maintain color stability in diverse consumer and industrial markets.
Applications
Traditional Automotive: Brakes, steering wheels, manual transmissions, interior components, airbags, child safety seats
LCD: Materials (backlighting, color filters, glass substrates, liquid crystal materials, polarizers, driver assemblies), application products (TVs, monitors, computers, tablets, smarts, wearables, etc.)
Electrical & Electronics: Home appliances, office equipment
Pharmaceuticals: Medicinal products
Food: Beverage production
Standards
ISO 4892-2: Plastics—Methods of exposure to laboratory light sources (Xenon-arc lamps).
ISO 105-B02: Textiles—Tests for color fastness to artificial light (Xenon arc fading lamp test).
ASTM G155: Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Nonmetallic Materials.
AATCC TM16.3: Colorfastness to Light: Xenon-Arc.
JIS L0843: Test method for color fastness to xenon arc lamp light.
JIS K7350-2: Plastics—Methods of exposure to laboratory light sources—Part 2: Xenon-arc lamps.
Features
Stable Water-Cooled Source: The 2.5kW water-cooled system manages the thermal load of the xenon lamp more efficiently than air-cooled alternatives, providing superior spectral stability and longer lamp life.
High-Temperature Capability: You can achieve a Black Panel Temperature (BPT) of up to $110^{circ}text{C}$, allowing for the simulation of extreme heat conditions found in automotive interiors or tropical outdoor environments.
Large Throughput for Compact Size: Despite its manageable footprint, the GX25 can accommodate up to 108 specimens simultaneously, making it ideal for high-volume batch testing.
Precise Dark Cycle Simulation: The system allows you to transition to a high-humidity dark mode ($95%text{ RH}$), effectively simulating nighttime dew and moisture absorption.
Customizable Spectrum: By utilizing specific filter combinations like the #295 outer filter, you can tailor the UV cutoff to match specific outdoor or indoor sunlight conditions.
Parameters
|
Light source |
Xenon-arc lamp WX2.5(2.5kW water-cooled type) Filter:Daylight filter(The other filters such as Windows Glass,Extended UV,etc,are available as option.) |
|
Test condition |
Light-on,Light-off [Option:Light-on and surface spray.Light-off and back spray,Light-off and surface and back spray] |
|
Irradiance |
40 to 60W/㎡(at 300 to 400nm) [Option(Measuring Wave length control):340nm,420nm] |
|
Temperature and humidity range |
Light test:55 to 110±2℃ of Black Panel Temperature (BPT;depending on irradiance); 30 to 70±5%rh(at 63℃ of BPT and 42W/㎡) Dark test:38±2℃ of chamber air temperature,95±5%rh [Option:BST(Black Standard temperature)60 to 115℃(depending on irradiance) |
|
Number of specimens |
Maximum 108pieces(65 x 55 x 1mm) |
|
External dimension of the instrument |
Approx:width 100cm,depth 125cm,height 180cm,weight400kg |
|
Electrical requirements |
3phase 200V approx. 43A 50/60Hz |
|
Related standards |
ISO 4892-2.ISO 16474-2.ISO 105-B02.ASTM G155.AATTC TM16.AATCC TM169 etc.(depending on test cycles) |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Protective Clothing Liquid Static Pressure Tester | The Protective Clothing Liquid Static Pressure Tester is designed to evaluate the liquid penetration resistance of breathable protective clothing m... |
 |
HEPA Filter Element Quality Control Test System | Application (1) Small HEPA Filter Element Efficiency Testing: Verification of overall efficiency for small HEPA elements. (2) HEPA Filter Grade C... |
 |
8 Station Pneumatic Fatigue Test Sequencer | 1. Product Function and Application The 8 Station Pneumatic Fatigue Test Sequencer is a multi-channel, air-powered fatigue testing system designed... |
 |
Single wire and cable horizontal burner | Product Introduction: HT-DXSP touch screen control single wire and cable horizontal burner is suitable for determining the flame resistance of sin... |
 |

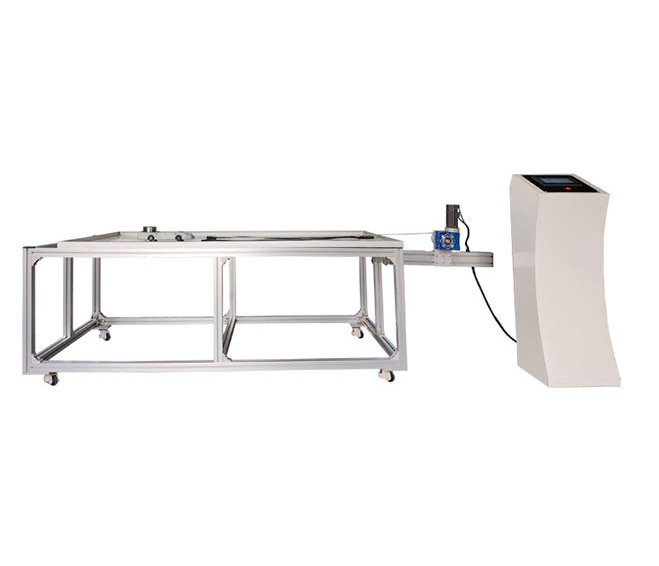

Backsheet Scratch Resistance Tester | The Backsheet Scratch Resistance Tester evaluates the scratch resistance of photovoltaic (PV) module backsheets. By applying a standardized sharp e... |
