Fire resistance testing furnace for construction industry vertical type

Whats/App: +86 156 1874 6768

Web: standard-groups.com

Application

Vertical Building Elements

Fire resistance testing of non-loadbearing vertical partitions, walls, and separation elements.

Fire Doors and Fire Shutters

Performance evaluation of doors, rolling shutters, and related assemblies under standard fire exposure.

Building Fire Safety Evaluation

Verification of fire resistance performance for construction materials and assemblies used in buildings.

Fire Testing Laboratories and Certification Bodies

Standardized testing for product certification, compliance verification, and research applications.

Standards

The equipment complies with the following standards:

(1) GB/T 9978.4-2008 – Fire Resistance Tests — Elements of Building Construction — Part 4: Specific Requirements for Loadbearing Vertical Separating Elements

(2) GB/T 9978.8-2008 – Fire Resistance Tests — Elements of Building Construction — Part 8: Specific Requirements for Non-loadbearing Vertical Separating Elements

(3) GB/T 7633-2008 – Fire Resistance Test Methods for Doors and Shutters

(4) ISO 834 – Fire Resistance Tests — Elements of Building Construction

(5) EN 1363 – Fire Resistance Tests for Building Elements

Parameters

ItemSpecification
Number of Burners 12 proportional flat-flame burners (6 on each side, 5 m furnace length)
Operating Temperature Maximum test temperature 1250 °C
Design Temperature 1350 °C
Combustion Mode Low-speed proportional flat-flame diffusion combustion
Gas & Air Pressure ≤ 4000 Pa
Flame Length ≤ 500 mm
Furnace Temperature Measurement Points 9 points
Thermocouple Sleeve Extension ≥ 25 mm
Temperature Accuracy < ±15 °C
Fuel Gas Liquefied petroleum gas
Equipment Dimensions 3 m (W) × 3 m (L) × 1.25 m (H)
Power Supply AC 380 V, 70 kW
Equipment Weight Approx. 5 t

Accessories

(1) Proportional flat-flame burners

(2) Gas solenoid valves and proportional valves

(3) Combustion air blower with frequency inverter

(4) Gas pressure regulators and filters

(5) Exhaust duct with refractory brick structure

(6) High-temperature exhaust fan with inverter

(7) PLC-based control system

(8) Computerized data acquisition and monitoring system


Отправить запрос, связаться с поставщиком

Кому: Standard International Group (HK) Limited
Ваш E-mail:
Текст письма:


Send to other suppliers

Другие товары поставщика

Electric rolling wheel peeling testing machine
Electric rolling wheel peeling testing machine Whats/App: +86 156 1874 6768 Web: standard-groups.com Introduction Electronic pressure roller testing machine (automatic pressure roller machine...
High Precision Filter Element Test Machine
High Precision Filter Element Test Machine Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards This system meets the requirements of: (1) GB/T 14295-2019 – Air filters....
Metal Bone Screws Self - tapping Tester
Metal Bone Screws Self - tapping Tester Whats/App: +86 156 1874 6768 Web: standard-groups.com Standard ISO 6475: Implants for surgery – Wear of total hip-joint prostheses ASTM F...
Falling ball impact testing machine
Falling ball impact testing machine Whats/App: +86 156 1874 6768 Web: standard-groups.com Product Introduction: Falling ball impact tester is suitable for testing the fastness of p...

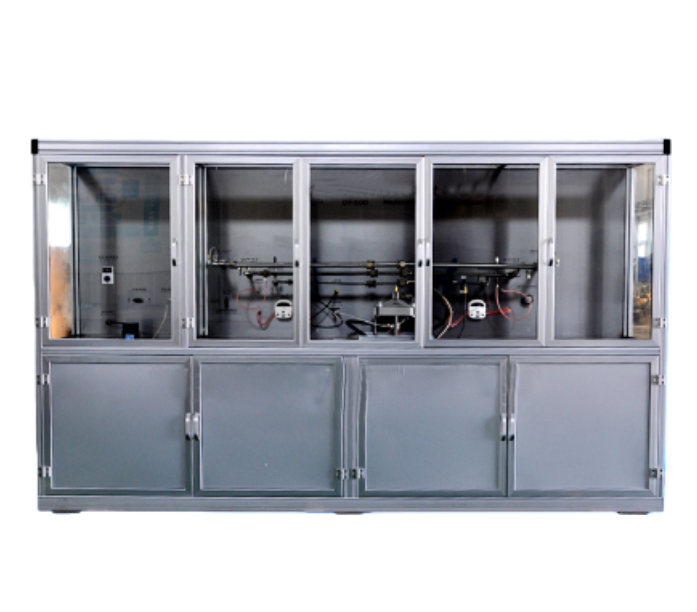

OEM Hydraulic Test System Manufacturer
