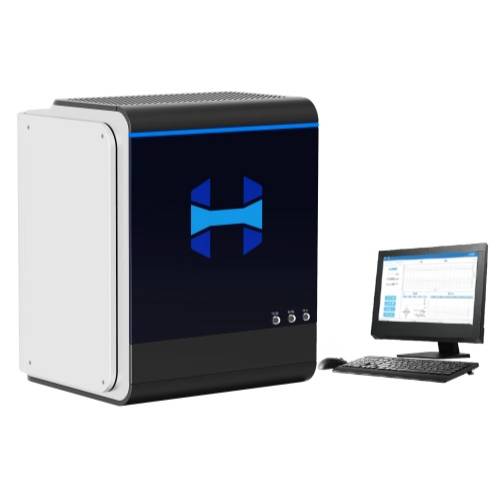

Textile Flatness Tester ISO 9073
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The Textile Flatness Tester is a precision instrument designed to evaluate fabric surface evenness by quantifying thickness variations, weave irregularities, and fiber distribution. It provides reliable, repeatable measurements to ensure compliance with quality standards in garment manufacturing, upholstery, and industrial textiles. The system uses a non-contact optical scanning method to capture full-area surface data with high precision.
Standards
ISO 9073-4: Textile flatness measurement
ASTM D3884: Abrasion resistance correlation
AATCC 124: Appearance after repeated home laundering
GB/T 3917.2: Chinese fabric evenness standard
Features
1. An AI- and machine vision-based device that highly integrates objective fabric performance evaluation.
2. Replaces manual grading (ISO 07768:2009. GB13769:2009. AATCC124:2014) with advantages including objectivity, speed, and reproducibility; CNAS-accredited.
3. Features simplified operation and high automation.
4. Clean software interface with intuitive controls; one-click grading after region selection.
5. Comprehensive metric system captures detailed visual characteristics for enhanced analysis.
Translated with DeepL.com (free version)
Parameters
| Parameter | Specification |
|---|---|
| Scanning Resolution | 0.1 mm × 0.1 mm grid mapping |
| Thickness Measurement Range | 0.05–10 mm (±0.5% accuracy) |
| Surface Roughness Detection | 0.1–100 μm Ra (ISO 4287) |
| Weave Flatness Index | Calculated automatically |
| Sample Size | Up to 1000 × 1000 mm (adjustable) |
| Light Source | 400–700 nm RGB LED array |
| Data Output | 3D topography map + statistical CSV |
| Dimensions (L×W×H) | 1500 × 800 × 1200 mm |
| Weight | ~180 kg |
| Power Supply | AC 220V ±10%, 50/60 Hz |
