Sock Stretch Tester ISO 20932
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The Sock Stretch Tester is a precision instrument designed to evaluate the elongation and elastic recovery of hosiery, swimwear, pantyhose, knitted pants, and other stretchable garments. It measures both longitudinal (vertical) and transverse (horizontal) stretch, providing accurate data on tensile behavior, plastic deformation, and elastic recovery. The system combines a Siemens PLC control unit with ergonomic design and adjustable parameters for reliable, repeatable testing.
Application
The tester is widely used in:
(1) Hosiery and sock manufacturing: evaluating elongation and elasticity performance
(2) Swimwear and activewear production: testing tensile and stretch properties
(3) Knitted garment industry: assessing pantyhose, leggings, and belly pants
(4) Textile R&D: developing new fabrics with desired elasticity and recovery
(5) Quality control laboratories: verifying compliance with garment stretch standards
(6) Third-party testing and certification laboratories: product performance validation
Standards
Chinese Standards:
FZ/T 70006: Hosiery tensile performance
FZ/T 73001: Knitted fabrics – General tensile test
FZ/T 73011: Knitted pants – Stretch and recovery test
FZ/T 73013: Swimwear – Stretch and elongation evaluation
FZ/T 73029: Pantyhose – Tensile properties
FZ/T 73030: Hosiery – Elastic recovery test
International Standards:
ISO 20932-1: Textiles – Determination of elastic recovery of knitted fabrics – Part 1: Strip method
ISO 13934-1: Textiles – Tensile properties of fabrics – Part 1: Strip method
ASTM D4964: Standard Test Method for Stretch and Recovery of Knitted Fabrics
ASTM D2594: Standard Test Method for Elastic Properties of Yarn and Fabric
EN 14704: Textiles – Knitted fabrics – Determination of elastic elongation and recovery
BS 3049: Hosiery – Test methods for elongation, stretch, and recovery
Product Features
Ergonomic design: Control panel located at ~100 cm height for comfortable operation
Vertical stretching structure: Facilitates sample installation and testing with small horizontal footprint
Siemens PLC control system: Ensures precise, stable, and reliable testing
Multiple test modes: Constant tensile, fixed elongation, constant elongation rate, and timed elongation
Integrated measurement: Records elongation force, elastic recovery, and plastic deformation
Pre-tensioning and manual fixture: Ensures consistent sample setup for accurate testing
Real-time display: LCD screen shows tensile speed, force, elongation, and test conditions
Technical Specifications
| Parameter | Specification |
|---|---|
| Tensile Speed | 20–250 mm/s (adjustable) |
| Test Movement | 100–3000 mm (customizable up to 3400 mm) |
| Rated Tension | 0.1–200 N (adjustable) |
| Sample Display | Side-set LCD controller, real-time display of test results |
| Structure Dimensions | 1000 × 700 × 3500 mm (L×W×H) |
| Instrument Weight | 120 kg |
| Control System | Siemens PLC |
| Test Modes | Constant tensile, fixed elongation, constant elongation rate, timed elongation |
| Accessories | Pre-tensioning weight, manual fixture |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Fabric horizontal burning tester - Test Equipment | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Standard QB/T 2729: Leather – Horizontal flammability test for physical and... |
 |
Liquid Sliding Penetration Comprehensive Performance Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The G373 Liquid Sliding Penetration Comprehensive Performance Tester is a precisio... |
 |
Steel wheel wear testing machine ISO/DIS10545/6 | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The cycloidal pinwheel reducer has the advantages of large reduction ratio, compac... |
 |
Fabric vertical flammability tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Fabric vertical flammability testerApplications: VTEC Vertical Flammability Cha... |
 |

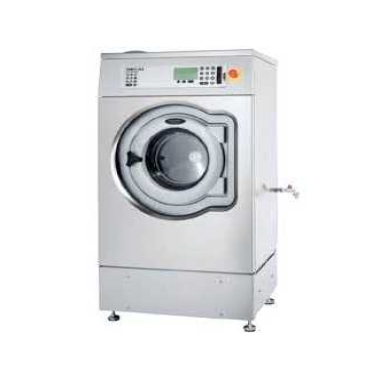

European Standard Washer EN ISO 9227 | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The washer is suitable for construction machinery, automotive suspension systems, ... |
