Multi-Functional Friction and Wear Test Equipment
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
ASTM G99-17: Standard Test Method for Wear Testing of Metal-Metal Sliding Contacts
ASTM G133-05: Standard Test Method for Wear Testing of Rubber and Polymers
DIN 50324-2010: Friction and Wear Testing Standards
Technical Specifications
| Item | Specification |
|---|---|
| Normal Force Range | Up to 60 N |
| Friction Force Range | Up to 20 N (optional 5 N) |
| Friction Force Resolution | 0.06 mN (optional 0.015 mN) |
| Rotational Motion Speed | 0.2–2000 rpm (optional 600 rpm) |
| Rotational Radius | Max 40 mm |
| Maximum Torque | 450 mN·m |
| Linear Reciprocating Stroke | Max 60 mm |
| Linear Reciprocating Speed | Up to 370 mm/s |
| Linear Reciprocating Frequency | 0.01–10 Hz |
| Rotational Reciprocating Speed | 0.2–2000 rpm (optional 600 rpm) |
| Rotational Reciprocating Frequency | 0.01–7 Hz |
| Rotational Reciprocating Angular Amplitude | ±5° to ±150° |
| Deflection Angle Resolution | 0.1° |
| Environmental Control (Optional) | Temperature: up to 450℃ (dry), 150℃ (liquid); Relative humidity: 15–95%; Vacuum: ≤10⁻⁷ mbar |
| Online Measurement (Optional) | Wear depth: -2 mm to 2 mm |
| Control System | Integrated sensors for real-time monitoring of temperature and humidity, supports “Stress Model” analysis software |
| Software Functions | Standard, incremental, and user-defined parameters; Python programming interface for cyclic and reciprocating motion analysis |
Features
Dual Friction Force Sensors: Minimizes thermal drift and ensures reliable data during long-term testing or environmental changes
Real-Time Environmental Monitoring: Integrated sensors record temperature, humidity, and friction force over time, enabling correlation analysis with friction coefficients
User Calibration: You can calibrate friction force, rotational radius, and motor speed to maintain testing accuracy over time
Multiple Motion Modes: Supports rotational, linear reciprocating, and rotational reciprocating motion to simulate complex friction scenarios
High-Precision Measurement: Friction resolution up to 0.06 mN and angle resolution of 0.1°, meeting high-precision research and industrial requirements
Optional Environmental Control: Supports heating, liquid testing, vacuum, and humidity control for diverse material testing conditions
Advanced Software Analysis: Comes with “Stress Model” software for data visualization, simulating contact stress and strain distribution, and facilitating parameter selection and result evaluation
Accessories
| Accessory / Consumable | Description |
|---|---|
| Friction Force Sensors | Dual sensors for high-precision measurement |
| Heating Device | Optional, max 450℃ (dry) and 150℃ (liquid) |
| Vacuum Device | Optional, down to 10⁻⁷ mbar |
| Sample Stage | Compatible with rotational, reciprocating, and rotational-reciprocating motion |
| Tools & Adjustment Components | For calibration and installation |
| Software | Tribology test control software and Stress Model analysis software |
| Data Interface | Supports Python programming environment for data processing |
| Safety Cover | Protects operators from moving parts |
Testing Principle
The Multi-Functional Tribology Tester applies controlled loads via precision loading mechanisms, bringing the friction pair into contact with the sample surface. By performing rotational, linear reciprocating, or rotational-reciprocating motion, the device simulates friction and wear behavior under various conditions. Sensors record friction force, torque, and displacement in real time, and environmental parameters such as temperature and humidity are integrated into the analysis to evaluate material tribological performance and wear patterns.
Operation Instructions
Mount your sample on the adjustable stage, ensuring the contact surface is flat.
Select the desired friction mode (rotational, linear reciprocating, or rotational-reciprocating) and set the normal force and friction pair type.
Configure test speed, frequency, and number of cycles, then start the device.
Monitor friction force and environmental parameters using the integrated sensors.
After the test, save data and evaluate friction and wear results using the analysis software.
Follow safety precautions, avoiding direct contact with moving parts and high-temperature areas.
Experimental Procedure
Sample Preparation: Clean, dry, and secure the sample to ensure a contaminant-free surface.
Equipment Setup: Select the friction pair, applied load, motion mode, and speed parameters.
Environmental Adjustment: Set temperature, humidity, or vacuum conditions as required.
Start Test: Run the device while friction pairs move and friction/wear data are recorded in real time.
End Test: Save all experimental data and analyze friction coefficient curves and wear depth to assess material performance.
Repeat experiments or adjust parameters for comparative testing if needed.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Carpet hair removal measurement device | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standard ASTM D5417(Standard Test Method for Quantifying Loss of Fiber from Carpets) IS... |
 |
Photovoltaic module outdoor exposure test system | The Photovoltaic Module Outdoor Exposure Test System is designed to simulate real-world environmental conditions for accelerated aging and performa... |
 |
Total Hip Joint Prostheses Wear Tester | Standard YY/T 0651.1-2016 (China): Specifies wear testing parameters for total hip prostheses, including angular motion, loading modes, and enviro... |
 |

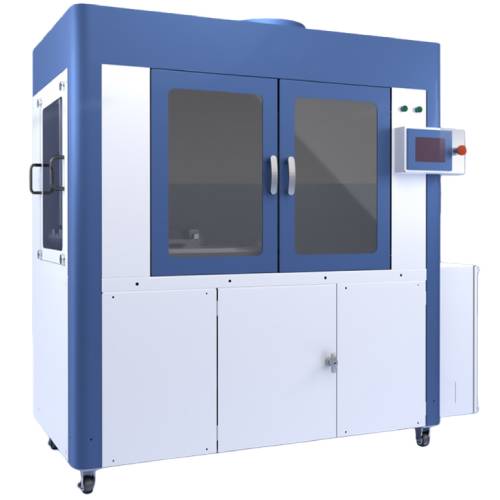

Laboratory Air Jet Erosion Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The Air Jet Erosion Tester complies with internationally recognized erosion test... |
 |
