Air Permeability Tester STD- F8
The Air Permeability Tester is designed to quickly and accurately measure the breathability and permeability of a wide range of samples, from those with high permeability, such as stockings, to those with low permeability, such as synthetic leather.
Samples can be mounted in just a few seconds using the handle, and measuring is also incredibly simple.
Standards
ISO 9237
GB/T 5453
DIN 53887
ASTM D737
AFNOR G07-111
Features
Highly accurate measurement using the constant ventilation method
The STD-F8 allows measurement of ventilation resistance. Compared with commonly used measuring methods, the STD-F8 is capable of highly accurate measurements. In addition, measurements can also be obtained with minute amounts of ventilation (measurement conditions similar to ventilation conditions when clothes are worn).
Parameter
| Product Name | Air Permeability Tester |
| Dimensions (W×D×H) *approx. | Measuring unit: 330×495×430 mm |
| Weight *approx. | Measuring unit: 25 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | Data logger output terminal |
| Sample size | 50×50 to 100×100 mm (standard) Thickness: 1 mm (max.) Other sample sizes are able to be used with optional accessories. |
Optional Accessories
| Vent pressing plate (20 πcm², 0.2 πcm²) |
Vent sizes are variable. |
| Attachment provided for thick samples | To thickness 40 mm |
| Please contact us for more information. |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Oxidizing Solids Tester | Conforms to UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 34.4.1 Test O.1: Test for oxidizing solids, 34.4.... |
 |
Shoe Shank Stiffness meter | Standard SATRA TM256: Flexural and torsional stiffness testing for athletic, safety, and casual footwear. SATRA TM194: Dynamic fatigue resistance... |
 |

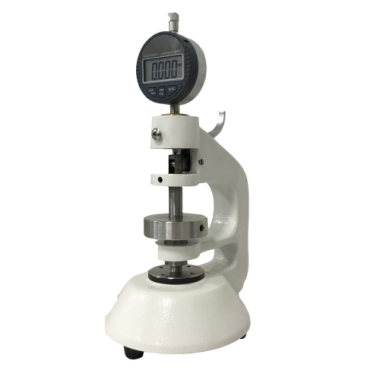

Leather thickness tester | Product Introduction Leather thickness tester is a special high-precision instrument for leather thickness measurement, which can be widely used f... |
 |

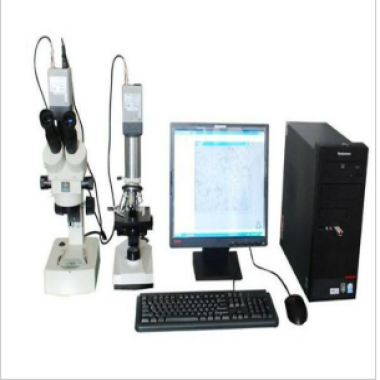

Textile Fiber Composition Analyzer | Standard ASTM D276(Standard Test Method for Identification of Fibers in Textiles) ISO 1833(Determination of Fiber Content in Textiles) AATCC 2... |
 |

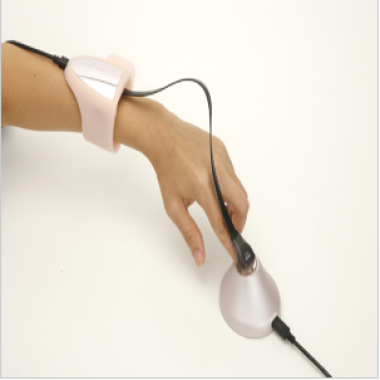

Finger Tactile Tester Sensor | Finger Tactile Sensor is a "sensor that measures natural finger operations"with a built-in contact force sensor and a 3-axis acceleration sensor. ... |
